5.1 JIG INSTALLATION FOR PIN BRIDGES

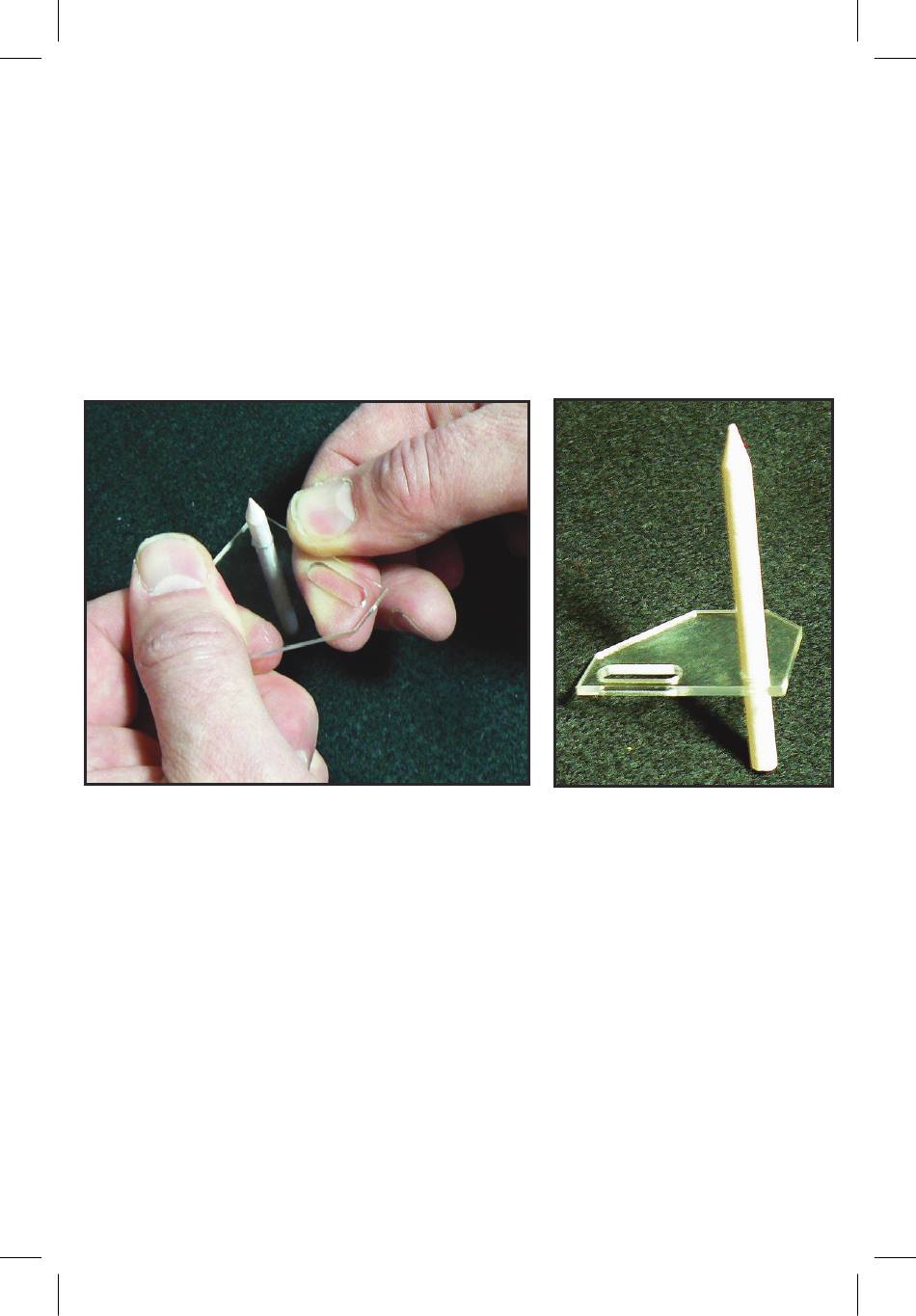

1. Please remove the protective foil from both sides
of the jig before starting. The jig itself is clear and the
protective foil peels off easily.
2. The white pin needs to be inserted into the round hole,
point first (see photo below for proper orientation).
Push the pin about ¾ of the way through the jig.
The pin should fit very snugly – you may have to use
some force (or even file it down a bit) to press it into
the hole. If the pin fits too loosely, please use some
superglue to secure it. Wipe off excess glue and let dry.
3. Insert the flat end of the white pin into the high E
string pinhole. Slide the brown golf tee through the
oblong hole in the jig and through the G string pinhole.
8
