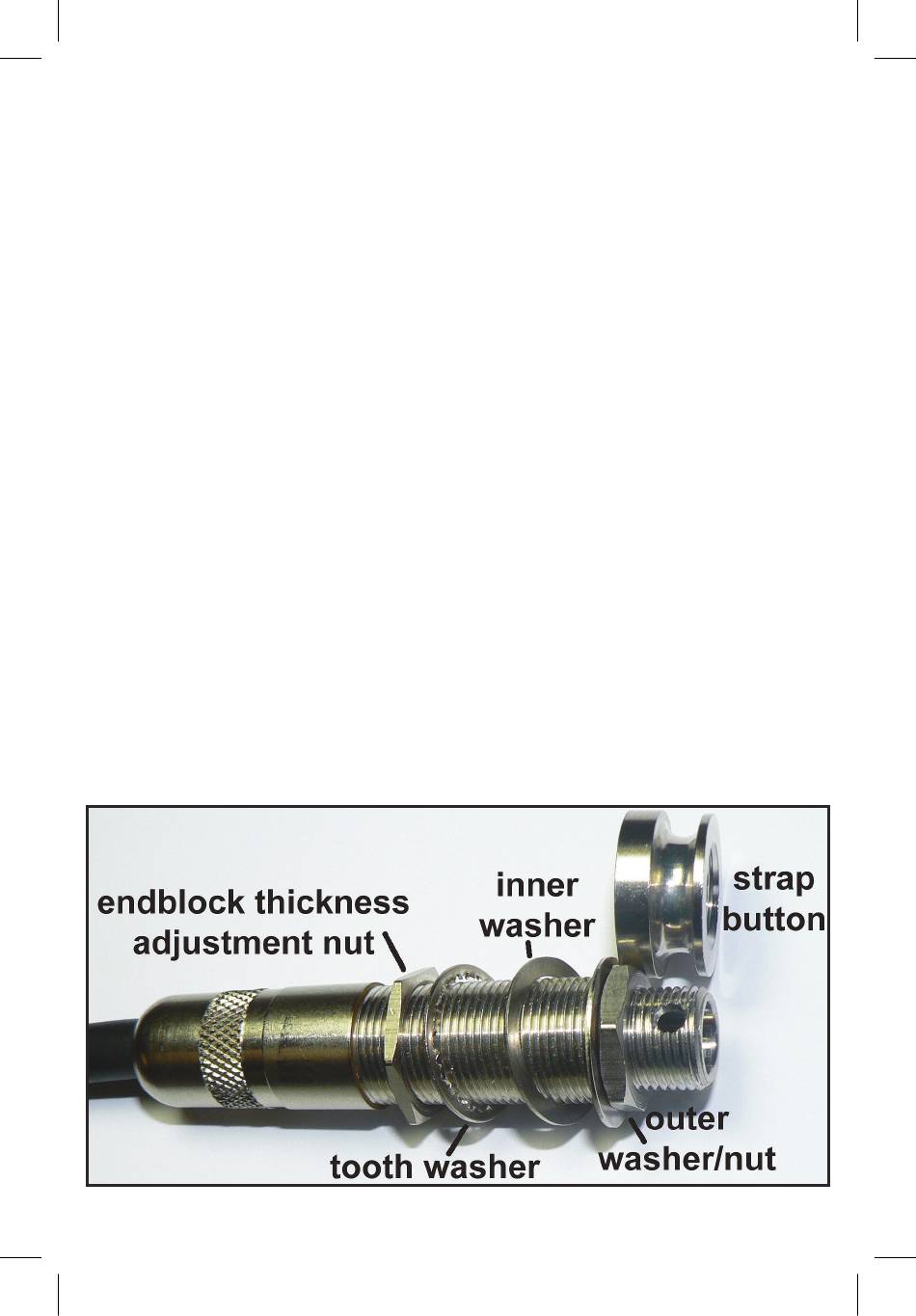

7. INSTALLING THE ENDPIN JACK

• Unscrew the endpin jack's strap button.
• Remove the outer nut and washer.
• Determine the thickness of your guitar's end block
and set the endblock thickness adjustment nut
accordingly. You may have to back off the screw
cap. Once the nut is in place, screw the cap back in,
either right up against the nut or as far as it goes,
as tightly as possible. This step might take a few
tries to get the right spacing.
• Insert the jack from the inside into the endpin hole.
Tip: a chopstick or something similar helps to get a
hold of the jack and guide it through.
• Attach outside washer and nut and tighten. Attach
the strap button. Important: Make sure that the
strap button screws in ALL THE WAY over the outer
threaded part of the jack, so that a tiny portion of
the thread is exposed when the strap button is
tightened.
