Quick Start Guide
ESUL8P-PC2-D*
Introduction

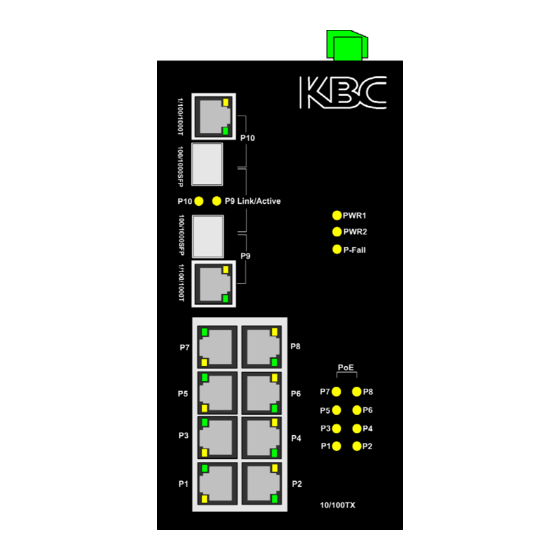

Welcome to KBC Network's Quick Start Guide for
the ESUL8P-PC2, 10 port, PoE switch. This
document provides some quick tips on how to
get up and running. For more detailed
information see the Downloads section below.
Features:
IEEE802.3af on 8 ports
•
Dual redundant power input
•
Alarm output for power supply
•
Full & half duplex operation
•
MDI/MDI-X
•
IP30 casing
•
Downloads
Installation manual
Other features and functions are described in the
unabridged manual:
http://www.kbcnetworks.com/esul8p-pc2-
series/network-products/esul8p-pc2-series
Specification sheets:
http://www.kbcnetworks.com/esul8p-pc2-
series/network-products/esul8p-pc2-series
QSG_ESUL8P-PC2-D-Rev1112
Copyright © KBC Networks Ltd. 2011
Industrial Ethernet Switch
System Contents
Qty Description
1
Ethernet switch fitted with DIN rail mount.
2
Wall-mount brackets with screws.
1
Pluggable terminal block.
Equipment Required for Physical
Deployment
You will need a 48Vdc power supply, these are
supplied separately.
www.kbcnetworks.com
Advertisement
Table of Contents
Related Manuals for KBC ESUL8P-PC2-D Series
Summary of Contents for KBC ESUL8P-PC2-D Series
- Page 1 Introduction System Contents Equipment Required for Physical Deployment Welcome to KBC Network’s Quick Start Guide for Qty Description the ESUL8P-PC2, 10 port, PoE switch. This You will need a 48Vdc power supply, these are document provides some quick tips on how to Ethernet switch fitted with DIN rail mount.
- Page 2 Need Help/Troubleshooting? FLASH Collisions are occurring Visit our website http://www.kbcnetworks.com Half duplex link or no connection contact your nearest KBC office or dealer: Upper Effective network connection has been established for the port APAC: FLASH Data traffic is passing through the...
