Quick Start Guide

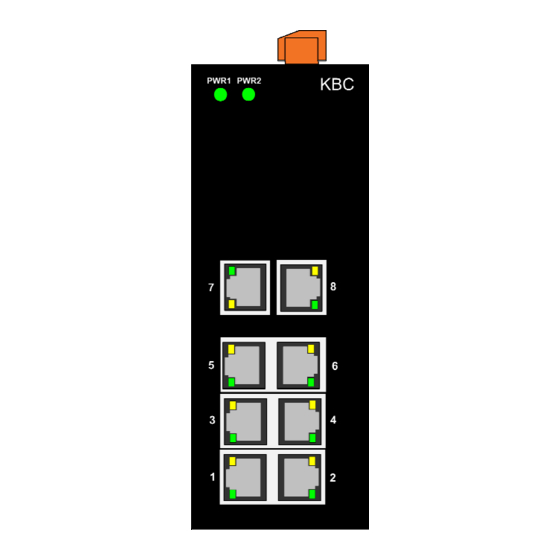

ESUL8-D*
Introduction
Welcome to KBC Networks' Quick Start Guide for
the ESUL8, 8 port, unmanaged switch. This
document provides some quick tips on how to
get up and running. For more detailed
information see the Downloads section below.
Features:
Low power
•
Broad, dual redundant power input
•
Full & half duplex operation
•
MDI/MDI-X
•
IP40 casing
•
Downloads
Installation manual
Other features and functions are described in the
unabridged manual:
http://www.kbcnetworks.com/esul8-
switch/network-products/esul8-series
Specification sheets:
http://www.kbcnetworks.com/esul8-
switch/network-products/esul8-series
Release Notes:
http://www.kbcnetworks.com/specification-
downloads/technical-release-notes
QSG-ESUL8-D-Rev1208
Copyright © KBC Networks Ltd. 2012
Industrial Ethernet Switch
System Contents
Qty Description
1
Ethernet switch fitted with DIN rail mount.
1
24Vdc PSU.
1
Wall-mount brackets with screws.
1
Pluggable terminal block.
Equipment Required for Deployment
You will need a 24Vdc power supply; this is
supplied with the switch.
www.kbcnetworks.com
