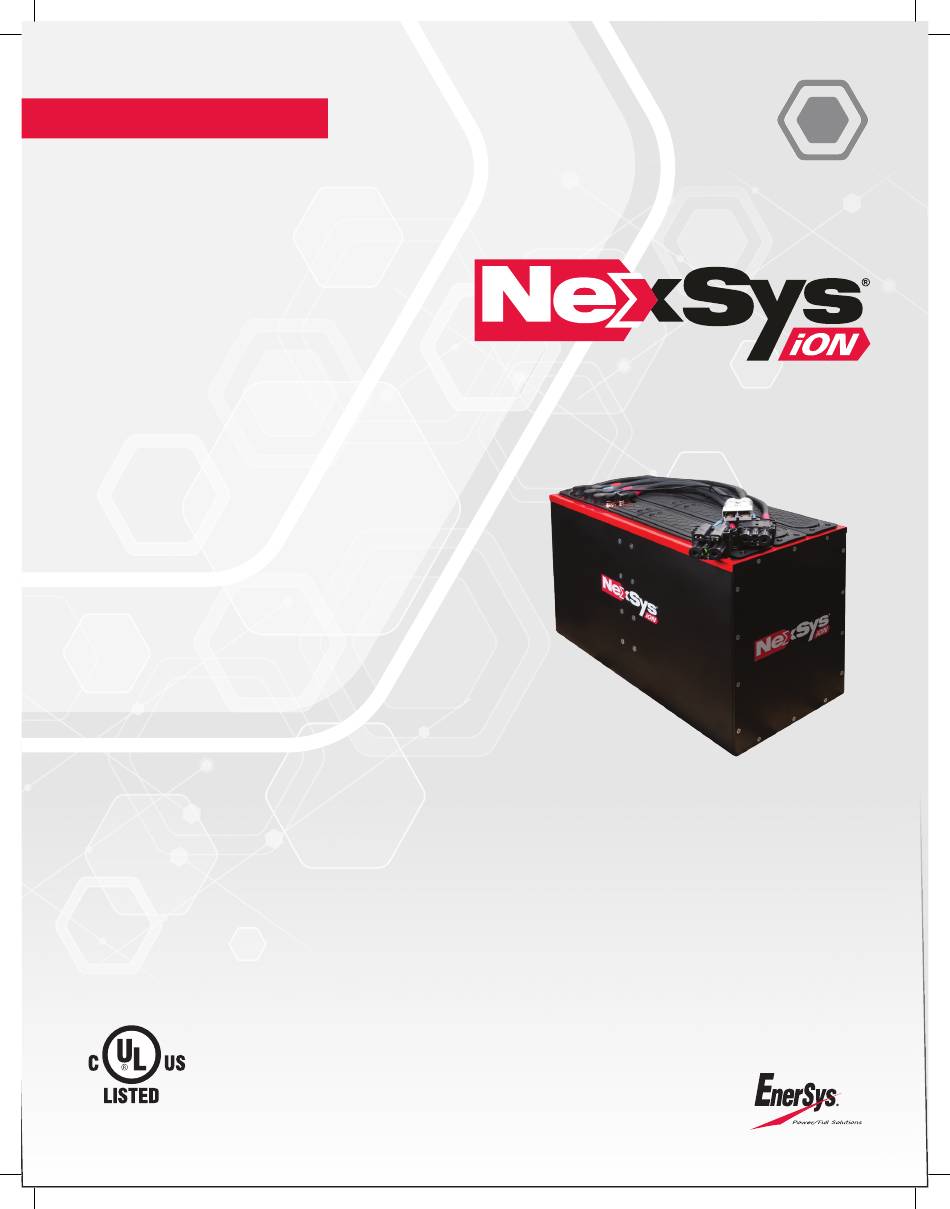

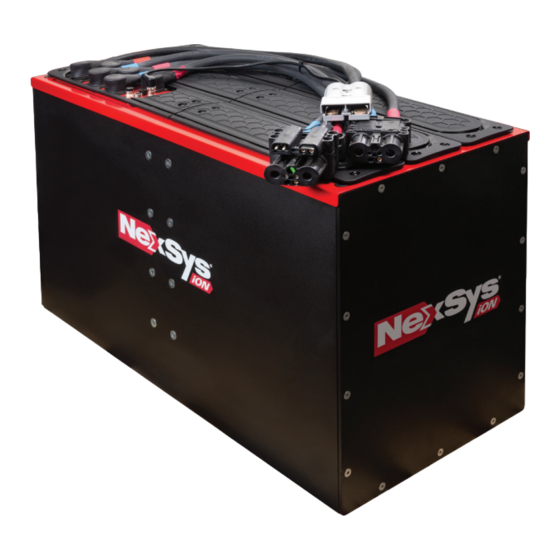

- Page 1 Owner’s Manual Li-ion TECHNOLOGY ADVANCED LITHIUM-ION TECHNOLOGY www.enersys.com...
-
Page 2: Table Of Contents
NexSys iON battery that may be required by local laws and/or to accommodate the Lithium-ion battery. Consult with Truck OEM for required industry standards. -
Page 3: Safety
(gas, heat, vapors or smoke) requires fire suppression methods to be applied. The EnerSys NexSys iON battery is a sealed product, however in case of cell damage Absence of flame is not sufficient to consider the thermal runaway event stopped within the battery, there is still the chance of electrolyte leakage. -
Page 4: Handling
Use only EnerSys/Hawker approved lithium ion battery charger. Nominal Mass Utilice únicamente el cargador de batería de iones de litio aprobado por EnerSys/Hawker. Utilisez uniquement le chargeur de batterie lithium-ion approuvé par EnerSys/Hawker. loads and charge sources and verified in an OFF state. This can be done by utilizing one For Sales or Service call toll free “Do not dispose in household waste”... -
Page 5: Mechanical Installation Into Industrial Truck
No substitution is allowed. allows data and warnings to be displayed via industrial truck dashboard instead of other operator interface devices. Please consult EnerSys on this option, as it requires 13. BATTERY COMMUNICATION INTERFACES WITH CHARGER, engineering consultation and prequalification with the truck OEMs. -
Page 6: Operator Interfaces
14. OPERATOR INTERFACES (CONTINUED) 14. OPERATOR INTERFACES (CONTINUED) Figure 7: Screen Two – Battery Details Figure 3: E Connect™ mobile app BDI (Battery Discharge Indicator): This device can be installed outside of the battery compartment to allow operators to view the SOC and the presence of a battery error as well as to provide easy access to an ACTIVATION / DEACTIVATION button (Refer to Figure 4: BDI). -
Page 7: Can-Bus Connectivity
17. CHARGING BATTERY The battery must only be charged by an EnerSys approved charger for Li-ion chemistry, which is specially designed to allow CAN communication with the battery to control the battery recharge. This ensures a safe and optimal operation of the system. All operating instructions found in the User Manual of the charger must be followed. -
Page 8: Charging Battery
Carriage of Dangerous Goods by Rail (RID) codes. Other laws and regulatory requirements may apply depending upon a given location. It is required for all persons 2. No active errors are listed by the display. If “Lockout” is displayed, contact EnerSys shipping to become familiar with the application regulations. - Page 9 Below is an indication of the reason for the displayed error ID(s). • If any of the devices display error ID 401, contact EnerSys Service as the battery has been locked out and the battery will not operate without a service visit.
-
Page 10: Appendix A: List Of Batteries
24. APPENDIX A: LIST OF BATTERIES 25. TERMS AND ABBREVIATIONS Nominal Nominal Nominal Term/Abbreviation Explanation/Description Model Number Voltage Voltage Voltage Energy Capacity Battery Discharge Interface (kWh) (Ah) Battery Management System 24-L1-20-4.7 25.55 19.6 29.4 CAN Data Interface 24-L1-24-9.5 25.55 19.6 29.4 Depth of Discharge 24-L1-24-14.2... - Page 11 NOTES...
- Page 12 © 2022 EnerSys. All rights reserved. Trademarks and logos are the property of EnerSys and its affiliates except Android, iOS and UL, which are not the property of EnerSys. Subject to revisions without prior notice. E.&O.E. GLOB-EN-OM-NEX-ION-0422...
