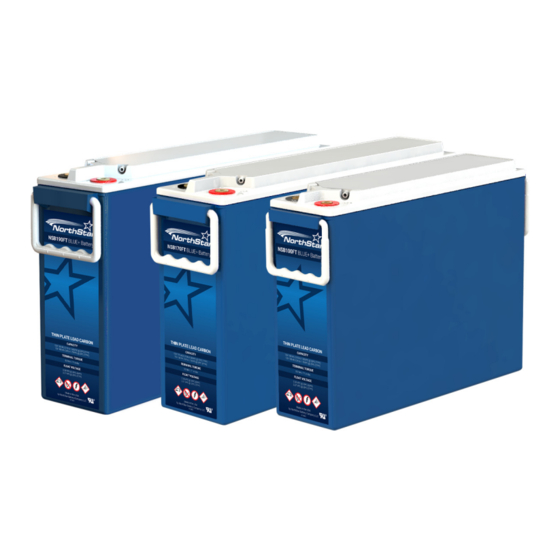

EnerSys OutBack POWER NorthStar NSB BLUE+ Series Owner's Manual
  1. Manuals
  2. Brands
  3. EnerSys Manuals
  4. Camera Accessories
  5. OutBack POWER NorthStar NSB BLUE+ Series
  6. Owner's manual

EnerSys OutBack POWER NorthStar NSB BLUE+ Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NorthStar NSB BLUE+
®
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OutBack POWER NorthStar NSB BLUE+ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EnerSys OutBack POWER NorthStar NSB BLUE+ Series

Summary of Contents for EnerSys OutBack POWER NorthStar NSB BLUE+ Series

  • Page 1 NorthStar NSB BLUE+ ® Owner’s Manual...
  • Page 2 Owner’s Manual © 2019 by OutBack Power. All Rights Reserved. Trademarks OutBack Power, OutBack Power logo, NSB and BLUE+ are trademarks owned and used by EnerSys Corporation. These trademarks may be registered in the United States and other countries. Date and Revision January 2020, Revision A...

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions ............... 4   Additional Resources ........................4  Introduction ..................5   Audience ............................5  NorthStar NSB BLUE+ ........................5  ® Materials Required .......................... 6  Tools ................................6   Storage and Environment Requirements ..................6  Temperatures ...............................6  ...

  • Page 4: Important Safety Instructions

    Safety Instructions Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS! This manual contains important safety instructions for the NorthStar NSB BLUE+ ® battery. These instructions are in addition to the safety instructions published for use with all OutBack products. ® Read all instructions and cautionary markings on the NorthStar NSB BLUE+ battery and on any accessories or additional equipment included in the installation.

  • Page 5: Introduction

    Introduction Audience This manual is intended for use by anyone required to install and operate this battery. Be sure to review this manual carefully to identify any potential safety risks before proceeding. The owner must be familiar with all the features and functions of this battery before proceeding. Failure to install or use this battery as instructed in this manual can result in damage to the battery that may not be covered under the limited warranty.

  • Page 6: Materials Required

    Installation and Operation Materials Required Tools (use insulated tools only) Digital voltmeter Socket wrench Torque wrench calibrated in inch-pounds Box end wrench Battery lifting equipment (handles) and fork lift to lift pallets of batteries Rubber gloves Full face shield Plastic apron Portable eyewash Spill kit Fire extinguisher (class C)

  • Page 7: Self-Discharge

    NorthStar NSB BLUE+ Batteries Self-Discharge All NorthStar NSB BLUE+ ® batteries will discharge over time once charged, even in storage. Higher storage temperatures increase the rate of self- discharge. Fully charged, the natural (“rest”) voltage of all NorthStar NSB BLUE+® batteries is approximately 13.0 Vdc.

  • Page 8: State Of Charge

    Installation and Operation State of Charge ® The NorthStar NSB BLUE+ state of charge (SoC) can be determined by two methods. One is to measure its voltage. This method is typically used when batteries are in storage. This is accurate only if the batteries are left at rest (no charging or loads) for 12 hours at room temperature (77°F or 25°C).

  • Page 9: Battery Configurations

    NorthStar NSB BLUE+ Batteries Battery Configurations Load + Load – Load + Load – Series String (24 Vdc) Series String (48 Vdc) Batteries are placed in series (negative to positive) for additive voltages. Batteries in series are known ® as a “string”. A string of two NorthStar NSB BLUE+ batteries has a nominal voltage of 24 Vdc and can be used for 24-volt loads.
  • Page 10 Installation and Operation Batteries are placed in both series and parallel for both additive voltage and amp-hour capacity. Series strings placed in parallel have the same nominal voltage as each string. They have the same amp-hour capacity of each string added together. Two parallel strings of two NorthStar NSB BLUE+ batteries in series have a nominal voltage of 24 Vdc, twice the nominal voltage.

  • Page 11: Dc Wiring

    NorthStar NSB BLUE+ Batteries DC Wiring CAUTION: Equipment Damage Never reverse the polarity of the battery cables. Always ensure correct polarity. CAUTION: Fire Hazard Always install a circuit breaker or overcurrent device on the DC positive conductor for each device connected to the batteries. CAUTION: Fire Hazard Never install extra washers or hardware between the mounting surface and the battery cable lug or interconnect.
  • Page 12 Installation and Operation Applying Grease to Terminals Electrical grade conductive grease is applied directly to the battery terminals as a corrosion preventative measure during manufacturing. In typical indoor installations no additional grease is required to protect the terminals and other electrical connections after installation. The bus bars and other hardware provided with the batteries are plated to protect from corrosion.

  • Page 13: Commissioning

    NorthStar NSB BLUE+ Batteries connection at the load or elsewhere in the cable system so that any resulting spark does not occur in the battery enclosure. Once hardware is installed and batteries are properly aligned, torque all connections to the appropriate value for the battery model.
  • Page 14 Installation and Operation NOTES: 900-00264-01-001 Rev A...

  • Page 15: Charging

    NorthStar NSB BLUE+ Batteries Charging ® NorthStar NSB BLUE+ batteries are usually charged using a “three-stage” charging cycle: bulk stage, absorption stage, and float stage. However, not all chargers are designed or programmed the same way. The settings should be checked and changed to match the recommendations below if necessary.

  • Page 16: Float Stage

    Installation and Operation Not all chargers measure this in amperes. Many chargers hold the absorption for a timed period (often two hours), assuming that the current will taper down by then. However, if the charge ends before the current tapers to the desired level, the battery may not reach 100% SoC. Repeated failure to charge the batteries to 100% will result in decreased battery life.

  • Page 17: Temperature Compensation

    NorthStar NSB BLUE+ Batteries Temperature Compensation Battery performance will change when the temperature varies above or below room temperature (77°F or 25°C). Temperature compensation adjusts the charging to correct for these changes. When a battery is cooler than room temperature, its internal resistance goes up, the voltage changes more quickly, and the charger reaches its voltage set points more easily.

  • Page 18: Improper Use

    Installation and Operation Improper Use CAUTION: Equipment Damage Read all items below. Maintenance should be performed as noted on page 22. Failure to follow these instructions can result in battery damage which is not covered under the NorthStar NSB BLUE+ warranty.

  • Page 19: Battery Voltage Records

    NorthStar NSB BLUE+ Batteries Battery Voltage Records Date: Date: Date: Battery 1 Battery 2 Battery 3 Battery 4 Battery 5 Battery 6 Battery 7 Battery 8 Battery 9 Battery 10 Battery 11 Battery 12 Battery 13 Battery 14 Battery 15 Battery 16 Battery 17 Battery 18...
  • Page 20 Installation and Operation Date: Date: Date: Battery 1 Battery 2 Battery 3 Battery 4 Battery 5 Battery 6 Battery 7 Battery 8 Battery 9 Battery 10 Battery 11 Battery 12 Battery 13 Battery 14 Battery 15 Battery 16 Battery 17 Battery 18 Battery 19 Battery 20...

  • Page 21: Troubleshooting And Maintenance

    Troubleshooting and Maintenance Table 1 Troubleshooting Category Symptom Possible Cause Remedy Normal life cycle Replace battery bank when (or before) capacity drops to unacceptable levels. Reduced operating time Defective cells Test and replace battery as necessary. Excessively cold battery Carefully warm up the battery. Undersized cabling Increase cable ampacity to match loads.

  • Page 22: Periodic Evaluation

    Maintenance Periodic Evaluation Upon replacement of a battery, all interconnect hardware should be replaced at the same time. To keep track of performance and identify batteries that may be approaching the end of their life, perform the following tests during on a quarterly basis following commissioning (see page 13).
  • Page 23 NorthStar NSB BLUE+ Batteries Cleaning Batteries shall only be cleaned using a dry soft cloth or cloth moistened with water — any other substances should not be used or sprayed on the batteries. The plastic used for the batteries is sensitive to many solvents and other substances.
  • Page 24 Maintenance NOTES: 900-00264-01-001 Rev A...

  • Page 25: Specifications

    Specifications Table 2 Specifications NorthStar NSB BLUE+ ® Cells Per Unit Nominal Voltage 12 Vdc Cycle Life (50% DoD) 2,050 cycles Absorb Voltage (25°c) 14.1 Vdc Absorb Time 4 hours Float Voltage (25°c) 13.6 Vdc Float Time Continuous Equalize Voltage & Frequency 14.4 Vdc for 4 hours every 12 months Re-Bulk voltage 12 Vdc...
  • Page 26 Specifications Table 3 12V Ampere Hour Capacity to 1.75 Volts Per Cell at 77°F (25°C) Discharge in Hours: ® Northstar NSB40FT BLUE+ 29.5 32.4 33.9 34.8 35.6 37.1 37.8 40.4 40.4 ® Northstar NSB100FT BLUE+ 75.6 94.1 96.3 101.5 105.3 105.3 ®...
  • Page 27 EnergyCell Batteries This page intentionally left blank. 900-00264-01-001 Rev A...
  • Page 28 Masters of the Off-Grid.™ First Choice for the New Grid. 17825 – 59 Avenue N.E. Suite B Arlington, WA 98223 USA...

This manual is also suitable for:

Outback power northstar nsb100ft blue+Outback power northstar nsb40ft blue+Outback power northstar nsb170ft blue+Outback power northstar nsb190ft blue+Outback power northstar nsb210ft blue+
