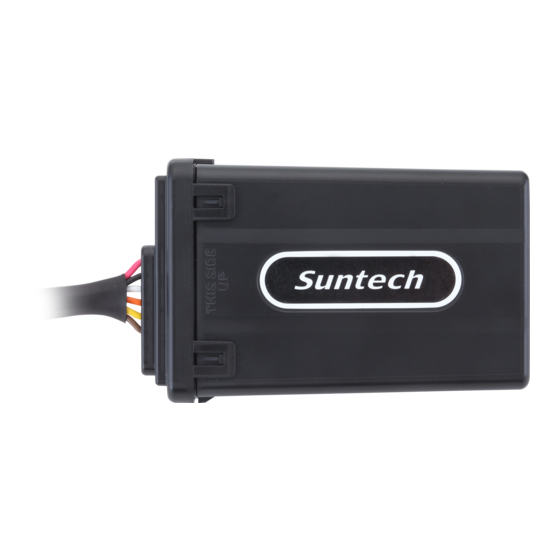

SunTech ST4310P User Manual
  1. Manuals
  2. Brands
  3. SunTech Manuals
  4. GPS
  5. ST4310P
  6. User manual

SunTech ST4310P User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ST4310P
User Manual
Suntech International Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST4310P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SunTech ST4310P

Summary of Contents for SunTech ST4310P

  • Page 1 ST4310P User Manual Suntech International Ltd.
  • Page 2 ST4310P User Manual 1. Introduction This document describes features, protocols and detail operation of ST4310P. If there is another operation description document for special buyer to customize or model and the contents of the document is different with this, customizing document should be applied for special buyer.
  • Page 3 ST4310P User Manual Emergency is the first to be sent after recovering NETWORK condition. 2-3. Setting Parameter Parameters of device can be changed by NETWORK or SMS, and some control can be realized also in the same way. Detail protocols are described in Chapter 4.
  • Page 4 DEV_ID Field 1 Field 2 … Field n Field Definitions Remark String “ST4310P” + Command type DEV_ID 6 char. Device ID of AVL “02” Protocol Version. This is fixed with “02”. Field 1 ~ n String Contents Device ID is unique number of each device that consists of 6digits.
  • Page 5 ST4310P User Manual DEV_ID 6 char. Device ID of AVL “001” Software version that the device has. Field 1 ~ n String Contents 4. Commands When the device is received a command, it responds with response string and changes some parameters or acts related operation.
  • Page 6 ST4310P User Manual method when IP and Port are empty. For no use, it should be empty. PIN_NO String PIN Number to release PIN lock if it is enabled <example> [command] ST4310PNTW;850000;02;0;internet;;;111.111.111.111;8600;;;; [response] ST4310PNTW;Res;850000;010;0;internet;;; 111.111.111.111;8600;;;; ST4310PNTW;Res;850000;010;A1;tim.br;tim;tim; 111.111.111.111;8600;;;; <notes> ** If network does not require User ID and Password, these fields should be empty.
  • Page 7 ST4310P User Manual Range : 0 ~ 60000 If 0, report in driving will be sent only one time when vehicle starts driving. String Interval for sending status report in emergency mode Range : 0 ~ 9999 If 0, emergency report will be sent only one time when emergency state occurs.
  • Page 8 ST4310P User Manual 4-3. Event Parameter Setting DEV_ID IGNITION IN1_TYPE IN2_TYPE IN3_TYPE IN1_CHAT IN2_CHAT IN3_CHAT OUT1_TYPE OUT2_TYPE OUT1_ACTIVE OUT2_ACTIVE PULSE1_NO PULSE1_ON PULSE1_OFF PULSE2_NO PULSE2_ON PULSE2_OFF IN4_TYPE IN5_TYPE IN4_CHAT IN5_CHAT BAUD ● Definition : Set parameter related event. Field Definitions Unit Remark “ST4310PEVT”...
  • Page 9 ST4310P User Manual OUT1_TYPE ‘0’ ~ ‘5’ 0 = GPIO 1 = immobilizer 2 = Immobilizer & Auto active Auto active means immobilizer activated automatically when the vehicle starts parking. 3 = Pulse 4 = LED Out for indicating call status. Refer 7-2-3.

  • Page 10: Dev_Id

    ST4310P User Manual <example> [command] ST4310PEVT;850000;02;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 [response] ST4310PEVT;Res;850000;010;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 <notes> ** If IGNITION is set to ‘0’, device doesn’t check driving or parking state of the vehicle. It reports status string with idle mode always, and cannot support parking lock and the service that enters sleep or deep sleep automatically when the vehicle is parked.

  • Page 11: Sms_Lock

    ST4310P User Manual IN1_TYPE ‘0’ ~ ‘5’ 0 = Falling Edge 1 = Rising Edge 2 = Both Edge (Falling & Rising) 3 = Panic Button 4 = Call1 Button 5 = Call 2 Button 6 = Reserved 7 = Anti-Theft Button 13 = Disable Immobilizer if it’s activated by jammer detector.

  • Page 12: Table Of Contents

    ST4310P User Manual CALL_MO1 CALL_MO2 ● Definition : Set parameters related SMS or Call. Field Definitions Unit Remark “ST4310PNET Command type WORK” DEV_ID 6 char. Device ID “02” Protocol Version SMS_LOCK ‘0’ or ‘1’ Lock of Receiving Commands by SMS...

  • Page 13: Protocol Version

    ST4310P User Manual DEV_ID PARKING_LOCK SPEED_LIMIT PWR_DN CON_TYPE GROUP_SEND MP_CHK ANT_CHK BAT_CHK M_SENSOR CALL GEO_FENCE DATA_LOG ANTITHFT_CNT1 ANTITHFT_CNT2 JAM_DET JAM_CHK_DIST JAM_CHK_TM ● Definition : Set parameters related report. Field Definitions Unit Remark “ST4310PSVC Command type ” DEV_ID 6 char. Device ID “02”...

  • Page 14: Disable (0) / Enable (1

    ST4310P User Manual GROUP_SEND ‘0’ or ‘1’ Group Send for stored data 0 : Disable 1 : Enable. One packet can include up to 5 reports. Group send is explained below. MP_CHK ‘0’ or ‘1’ Main Power Disconnection Check Disable (0) / Enable (1) ANT_CHK ‘0’...
  • Page 15 ST4310P User Manual 1. KEEP_CON : The device keeps TCP connection always and can receives a command by NETWORK. 2. KEEP_DISCON : The device connects TCP connection when the data is sent. After sending, the device disconnects NETWORK and TCP connection if it estimates there is no data for sending within 3minutes.
  • Page 16 ST4310P User Manual DEV_ID SVR_TYPE B_SVR_TYPE UDP_ACK DEV_PORT ● Definition : Setting additional parameter requested. Field Definitions Unit Remark “ST4310PADP Command type ” DEV_ID 6 char. Device ID “02” Protocol Version SVR_TYPE ‘T’ / ‘U’ Server Protocol Type T : TCP...
  • Page 17 ST4310P User Manual This command can be applied from software version 22. ACK in case of UDP UDP is protocol that doesn’t check whether the data is transmitted successfully. So, the device checks completion of sending with ACK depending on UDP_ACK type.
  • Page 18 ST4310P User Manual DEV_ID 6 char. Device ID “02” Protocol Version CHR_STOP_THRES_12 String Voltage value to stop backup battery charging in 12V vehicle. DECIDE_BAT_12 String Voltage value to check whether the vehicle’s battery is 12V. OPERATION_STOP_THRES_12 String Voltage value to protect vehicle battery.
  • Page 19 ST4310P User Manual Range : 1 ~ 21600 (5hour) Recommend : 600 ( 10 min.) MOTION_THRES String Step Detection level of shock violation. Range : 0.04 ~ 2.0 Recommend : 0.04 SHOCK_THRES String Step Detection level of shock violation. Range : 0.04 ~ 2.0 Recommend : 0.04...
  • Page 20 ST4310P User Manual 4-11. Control Command DEV_ID CMD_ID ● Definition : Controls some functions. Field Definitions Unit Remark “ST4310PCM Command type D” DEV_ID 6 char. Device ID ‘01’ Protocol Version CMD_ID String Control command content Caution : If it’s not correct the Unit ID, ignored.
  • Page 21 ST4310P User Manual Initialize all parameters with factory value and reboot the device. <example> [command] ST4310PCMD;850000;02;Reset [response] ST4310PCMD;Res;850000;010;Reset 4-11-3. Preset ● Definition : Reset all of parameters. Field Definitions Unit Remark CMD_ID “Preset” Report parameter setting values and current device status.
  • Page 22 ST4310P User Manual 1 = Enable 1 = Enable 1 = Sleep disconnected. 2 = Deep sleep 1 = Backup battery is connected. Field Definitions Unit Remark CMD_ID “PresetA” Report all parameters including additional parameter. <example> [command] ST4310PCMD;850000;02;PresetA [response] ST4310PCMD;Res;850000;010;PresetA;...
  • Page 23 ST4310P User Manual ● Definition : Stop emergency report. Field Definitions Unit Remark CMD_ID “AckEmerg” Acknowledgement of emergency report. The device will stop emergency reports if it is in emergency state. <example> [command] ST4310PCMD;850000;02;AckEmerg [response] ST4310PCMD;Res;850000;010;AckEmerg 4-11-5. Enable1 ● Definition : Active Output1.
  • Page 24 ST4310P User Manual [response] ST4310PCMD;Res;850000;010;Disable1 [response] ST4310PCMD;Res;850000;010;Disable1NoUse (in case that IN type is set to ‘No Use’). <notes> ** Output1 line goes to inactive status. 4-11-9. Request IMSI ● Definition : Request the unique SIM ID. Field Definitions Unit Remark CMD_ID “ReqIMSI”...
  • Page 25 ST4310P User Manual <example> [command] ST4310PCMD;850000;02;ReqVer [response] ST4310PCMD;Res;850000;010;ReqVer;ST4310PE_SAMPLE_STBASE_001 4-11-12. Erase All ● Definition : Erase all of data in buffer. Field Definitions Unit Remark CMD_ID “EraseAll” Erase saved all reports and disable outputs. This is needed to initialize just before device is delivered to a customer.
  • Page 26 ST4310P User Manual <example> [command] ST4310PCMD;850000;02;InitMsgNo [response] ST4310PCMD;Res;850000;010;InitMsgNo 4-11-23. Reboot ● Definition : reboot unit. Field Definitions Unit Remark CMD_ID “Reboot” Reboot device. <example> [command] ST4310PCMD;850000;02;Reboot [response] ST4310PCMD;Res;850000;010;Reboot 4-11-24. Request SIM IP Address ● Definition : Request of the local IP address in SIM card.
  • Page 27 ST4310P User Manual 4. Trouble Shooting (LED Indicator) 4.1 Blue LED: Indicates NETWORK status. NETWORK Blink Count Remarks Normal Server Com. Error <Possible Cause> 1. Server or network parameter is wrong. 2. Server is closed. 3. Temporary network barrier NETWORK Com.
  • Page 28 ST4310P User Manual No SIM <Possible Cause> 1. There is no SIM or SIM is not inserted properly. 2. SIM or SIM socket is broken.
  • Page 29 ST4310P User Manual 4.2 RED LED: Indicates GPS status. Blink Count Remarks Normal No Fix <Possible Cause> 1. If power on, GPS chipset is trying to find position during some minutes. 2. GPS antenna lays on weak or no GPS signal position 3.
  • Page 30 ST4310P User Manual d’en compromettre le fonctionnement. [EN] FCC and IC RF Radiation Exposure Statement: This equipment complies with FCC and IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
