ST4330
User Manual
Suntech International Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST4330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SunTech ST4330

Summary of Contents for SunTech ST4330

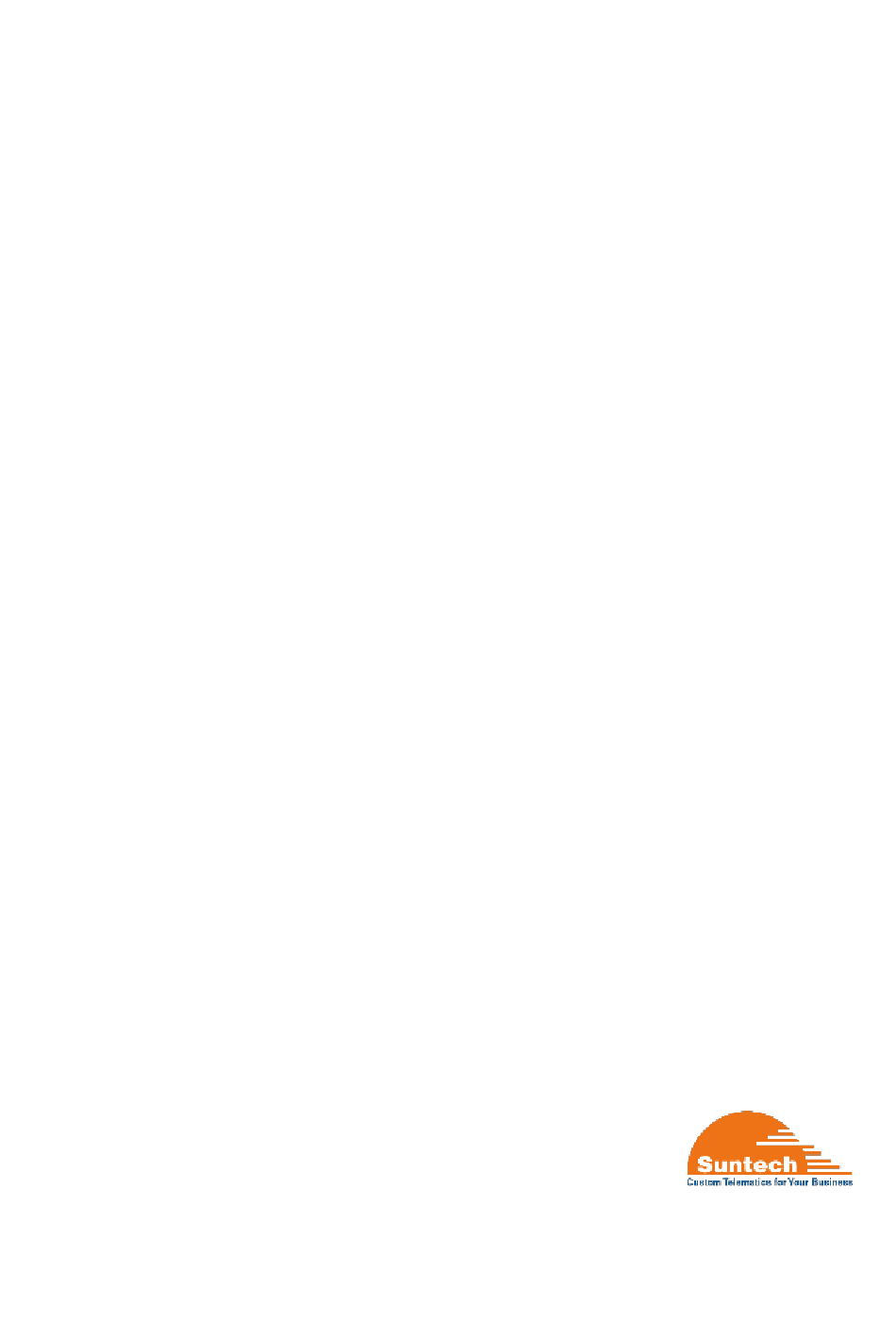

  • Page 1 ST4330 User Manual Suntech International Ltd.
  • Page 2 ST4330 User Manual 1. Introduction This document describes features, protocols and detail operation of ST4330. If there is another operation description document for special buyer to customize or model and the contents of the document is different with this, customizing document should be applied for special buyer.
  • Page 3 ST4330 User Manual 2-3. Setting Parameter Parameters of device can be changed by LTE-M1 or SMS, and some control can be realized also in the same way. Detail protocols are described in Chapter 4. 2-4. Features Key features are described here;...
  • Page 4 DEV_ID Field 1 Field 2 … Field n Field Definitions Remark String “ST4330” + Command type DEV_ID 6 char. Device ID of AVL “02” Protocol Version. This is fixed with “02”. Field 1 ~ n String Contents Device ID is unique number of each device that consists of 6digits.
  • Page 5 ST4330 User Manual Field 1 ~ n String Contents 4. Commands When the device is received a command, it responds with response string and changes some parameters or acts related operation. 4-1. Network Parameters Setting DEV_ID AUTH USER_ID USER_PWD SEVER_IP...
  • Page 6 ST4330 User Manual <example> [command] ST4330NTW;850000;02;0;internet;;;111.111.111.111;8600;;;; [response] ST4330NTW;Res;850000;010;0;internet;;; 111.111.111.111;8600;;;; ST4330NTW;Res;850000;010;A1;tim.br;tim;tim; 111.111.111.111;8600;;;; <notes> ** If network does not require User ID and Password, these fields should be empty. Automatic LTE-M1 Set It the device is set to ‘Automatic LTE-M1 Set’, the device set LTE-M1 parameters automatically depending on inserted SIM.
  • Page 7 ST4330 User Manual String Interval for sending status report in emergency mode Range : 0 ~ 9999 If 0, emergency report will be sent only one time when emergency state occurs. String Number of attempts for emergency report until the device gets acknowledge from server If 0, no emergency report will be sent.
  • Page 8 ST4330 User Manual IN1_TYPE IN2_TYPE IN3_TYPE IN1_CHAT IN2_CHAT IN3_CHAT OUT1_TYPE OUT2_TYPE OUT1_ACTIVE OUT2_ACTIVE PULSE1_NO PULSE1_ON PULSE1_OFF PULSE2_NO PULSE2_ON PULSE2_OFF IN4_TYPE IN5_TYPE IN4_CHAT IN5_CHAT BAUD ● Definition : Set parameter related event. Field Definitions Unit Remark “ST4330EVT” Command type DEV_ID 6 char.
  • Page 9 ST4330 User Manual OUT1_TYPE ‘0’ ~ ‘5’ 0 = GPIO 1 = immobilizer 2 = Immobilizer & Auto active Auto active means immobilizer activated automatically when the asset starts parking. 3 = Pulse 4 = LED Out for indicating call status. Refer 7-2-3.
  • Page 10 ST4330 User Manual <example> [command] ST4330EVT;850000;02;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 [response] ST4330EVT;Res;850000;010;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 <notes> ** If IGNITION is set to ‘0’, device doesn’t check driving or parking state of the asset. It reports status string with idle mode always, and cannot support parking lock and the service that enters sleep or deep sleep automatically when the asset is parked.
  • Page 11 ST4330 User Manual IN1_TYPE ‘0’ ~ ‘5’ 0 = Falling Edge 1 = Rising Edge 2 = Both Edge (Falling & Rising) 3 = Panic Button 4 = Call1 Button 5 = Call 2 Button 6 = Reserved 7 = Anti-Theft Button 13 = Disable Immobilizer if it’s activated by jammer...
  • Page 12 ST4330 User Manual CALL_MO1 CALL_MO2 ● Definition : Set parameters related SMS or Call. Field Definitions Unit Remark “ST4330LTE- Command type M1” DEV_ID 6 char. Device ID “02” Protocol Version SMS_LOCK ‘0’ or ‘1’ Lock of Receiving Commands by SMS...
  • Page 13 ST4330 User Manual DEV_ID PARKING_LOCK SPEED_LIMIT PWR_DN CON_TYPE GROUP_SEND MP_CHK ANT_CHK BAT_CHK M_SENSOR CALL GEO_FENCE DATA_LOG ANTITHFT_CNT1 ANTITHFT_CNT2 JAM_DET JAM_CHK_DIST JAM_CHK_TM ● Definition : Set parameters related report. Field Definitions Unit Remark “ST4330SVC” Command type DEV_ID 6 char. Device ID “02”...
  • Page 14 ST4330 User Manual ANT_CHK ‘0’ or ‘1’ GPS Antenna Connection Error Check Disable (0) / Enable (1) BAT_CHK ‘0’ or ‘1’ Backup Battery Error Check Disable (0) / Enable (1) M_SENSOR ‘0’ ~’4’ Motion Sensor Motion Collision Shock Disable Disable...
  • Page 15 ST4330 User Manual on report parameters. It may be used for saving LTE-M1 fee. Current version cannot support this option. Group Send The device stores data if the asset is in no LTE-M1 area. And, the asset moves to LTE-M1 available area, device starts sending stored data.
  • Page 16 ST4330 User Manual “02” Protocol Version SVR_TYPE ‘T’ / ‘U’ Server Protocol Type T : TCP U : UDP B_SVR_TYPE ‘T’ / ‘U’ Backup Server Protocol Type T : TCP U : UDP UDP_ACK ‘0’ ~ ‘3’ ACK from Server when UPD is used.
  • Page 17 ST4330 User Manual reached to server and sends the data again. Examples of ACK report are as below. String Format : “ST4330ACK;850000” Zip Format : 0x15 0x85 0x00 0x00 It is recommended ACK_TYPE is set to ‘1’ to confirm all data can be transmitted safely.
  • Page 18 ST4330 User Manual IGNDET_L String In case of virtual ignition, the asset can recognize parking state when asset power is less than IGNDET_L. Default = ‘0’ <example> [command] ST4330MBV;850000;02;10.5;22;19;8.00;18.00;0;0 [response] ST4330MBV;Res;850000;122;10.5;22;19;8.00;18.00;0;0 <note> IGNDET_H and IGNDET_L are ‘0’, device check parking and driving automatically.
  • Page 19 ST4330 User Manual VI_ON_DELAY String Sec. Delay time for Motion Virtual Ignition On Range : 3~999 Default : 10 VI_ON_PERCENT String Percent for Motion Virtual Ignition On. Range : 30~100 Default: 70 VI_OFF_THRES String 1/255G Threshold value for Motion Virtual Ignition Off...
  • Page 20 ST4330 User Manual 4-11-1. Status Request ● Definition : Location poll, request of the status report. Field Definitions Unit Remark CMD_ID “StatusReq” Status request If received, the device sends status string instantly. <example> <example> [command] ST4330CMD;850000;02;StatusReq [response] ST4330STT;850000;010;20090724;07:12:16;00129;+37.479995;+126.885815;000.029;000.00; 7;1;0;15.33;100000;2;0002 4-11-2. Reset ●...
  • Page 21 ST4330 User Manual <example> [command] ST4330CMD;850000;02;Preset [response] ST4330CMD;Res;850000;010;Preset; NTW;0;internet;;;111.111.111.111;8600;;;;1234; RPT;60;180;120;60;3;0;0;;;; EVT;1;60;0;3;2;2;30;20;20;1;1;1;0;0;0;0;0;0;0;0;0;0;0;0; LTE-M1;0;;;;;0;;;;;;;; SVC;1;120;0;0;0;0;1;1;1;0;0;0;0 DEV;0;0;0;0 [response] event 4 line model NTW;0;internet;;;111.111.111.111;8600;;;;1234; RPT;60;180;120;60;3;0;0;;;; EVT;1;60;0;3;8;8;30;0;0;6;6;1;0;0;0;0;0;0;0;0;0;0;0;0; LTE-M1;0;;;;;0;;;;;;;; SVC;1;120;0;0;0;0;1;1;1;0;0;0;0 DEV;0;0;0;0 <notes> ** After power on, device sends response string of preset once. ** DEV filed informs current status of device as below.
  • Page 22 ST4330 User Manual ADP;U;T;2;9000;0;0;0;0;0;0; DEV;0;0;0;0;0;0;0;0 <notes> ** This command can be applied from software version 22. ** DEV filed informs current status of device as below. BAT_CON OUT1 OUT2 PWR_DN Backup battery 0 = Disable 0 = Disable 0 = Normal disconnected.
  • Page 23 ST4330 User Manual <example> [command] ST4330CMD;850000;02;Enable1 [response] ST4330CMD;Res;850000;010;Enable1 [response] ST4330CMD;Res;850000;010;Enable1NoUse (in case that IN type is set to ‘No Use’). <notes> ** Output1 line goes to active status. ** If OUT1 set with immobilizer, output1 line goes to active status gradually with pulse in driving mode.
  • Page 24 ST4330 User Manual ● Definition : Request the ICCID. Field Definitions Unit Remark CMD_ID “ReqICCID” Request ICCID (sequence number that is displayed on SIM) If received, device sends ICCID of using SIM. <example> [command] ST4330CMD;850000;02;ReqICCID [response] ST4330CMD;Res;850000;010;ReqICCID;89550230000084256668 4-11-11. ReqVer ● Definition : Request software version.
  • Page 25 ST4330 User Manual ● Definition : Initialize the travel distance. Field Definitions Unit Remark CMD_ID “InitDist” Set traveled distance to 0. <example> [command] ST4330CMD;850000;02;InitDist [response] ST4330CMD;Res;850000;010;InitDist 4-11-14. Initialize Message Number ● Definition : Initialize the message sequence number. Field Definitions...
  • Page 26 ST4330 User Manual <example> [command] ST4330CMD;850000;02;ReqSIMIP [response] ST4330CMD;Res;850000;010;ReqSIMIP;172.16.18.6...
  • Page 27 ST4330 User Manual 3. Installation 3.1 Insert SIM card. 3.2 Backup battery - The backup battery should be used when main power is cut off 3.3 Install - The Device is fixed to the asset. 3.4 Assemble as below...
  • Page 28 Use the company designated by Suntech for charging and device setting. 3.5 Check GPS/LTE-M1 operation and battery charger operation with LEDs. It takes 3~10 minutes for GPS connected. Caution: Direction of ST4330 is very important when installed in the asset. Make sure that top side of ST4330...
  • Page 29 ST4330 User Manual 4. Trouble Shooting (LED Indicator) 4.1 Blue LED: Indicates LTE-M1 status. LTE-M1 Blink Count Remarks Normal Server Com. Error <Possible Cause> 1. Server or network parameter is wrong. 2. Server is closed. 3. Temporary network barrier LTE-M1 Com.
  • Page 30 ST4330 User Manual 4.2 RED LED: Indicates GPS status. Blink Count Remarks Normal No Fix <Possible Cause> 1. If power on, GPS chipset is trying to find position during some minutes. 2. GPS antenna lays on weak or no GPS signal position 3.
