Reliable DH56 HSW Manual

Quick response, extended coverage dry sprinklers
Hide thumbs Also See for DH56 HSW:

Advertisement

For coverages up to 28 feet wide and
10 feet long
(1)
. 250 psi (17,2 bar) rated.
Features:
1. Coverage for long and narrow spaces such as hallways,
corridors, decks and rooms up to 28 feet wide and 10
feet long.
(1)
2. Deflector to ceiling dimensions are:
4" (102mm) min. to 12" (305mm) max.
3. Minimum spacing between sprinklers 16 feet (4.9m).
4. Polyester Coated or Electroless Nickel PTFE (Teflon
Plated Corrosion Resistant Sprinklers.
*Concealed Sprinkler is not corrosion resistance.
5. UL Listed for extended coverage, light hazard applications.
6. 5.6 K Factor.
7. Sprinkler is approved for
250 psi (17,2 bar) applications.
8. Quick response performance.
9. ½" (13mm) adjustment of escutcheon and cover.
10. Concealed cover plate can prevent the sprinkler from being
used for unintended purposes. No exposed thermal element
with the concealed version.
11. Push-on/thread-off sturdy convenient escutcheon for recessed
and cover for concealed.
12. Factory assembled sprinkler & cup, shipped complete with
bulb protector for concealed and FP recessed versions.
13. Sprinkler & cup assembly and escutcheon or cover are
separately packaged.
14. Available in a variety of plated and painted finishes
See Fig. 9.
(1)
Approval Organizations
1. Listed by Underwriters Laboratories Inc. and
UL certified for Canada (cULus)
2. NYC MEA 258-93-E
Patents
US Patent No. 7,841,418
Other Patents Pending
Products Description
The Model DH56 are quick response extended cover-
age sidewall dry sprinklers for use in light hazard applica-
tions. The Model DH56 dry sprinkler with SWC cover plate
is a concealed sprinkler that uses Reliable's push on/thread
off sidewall cover. This sprinkler has the cup factory mounted
and is shipped with a bulb protector that protects the 3mm
frangible glass bulb during shipping and post installation fin-
ishing operations. The DH56 can be combined in the field
with the FP Escutcheon to make a recessed dry sprinkler.
*DuPont Registered Trademark

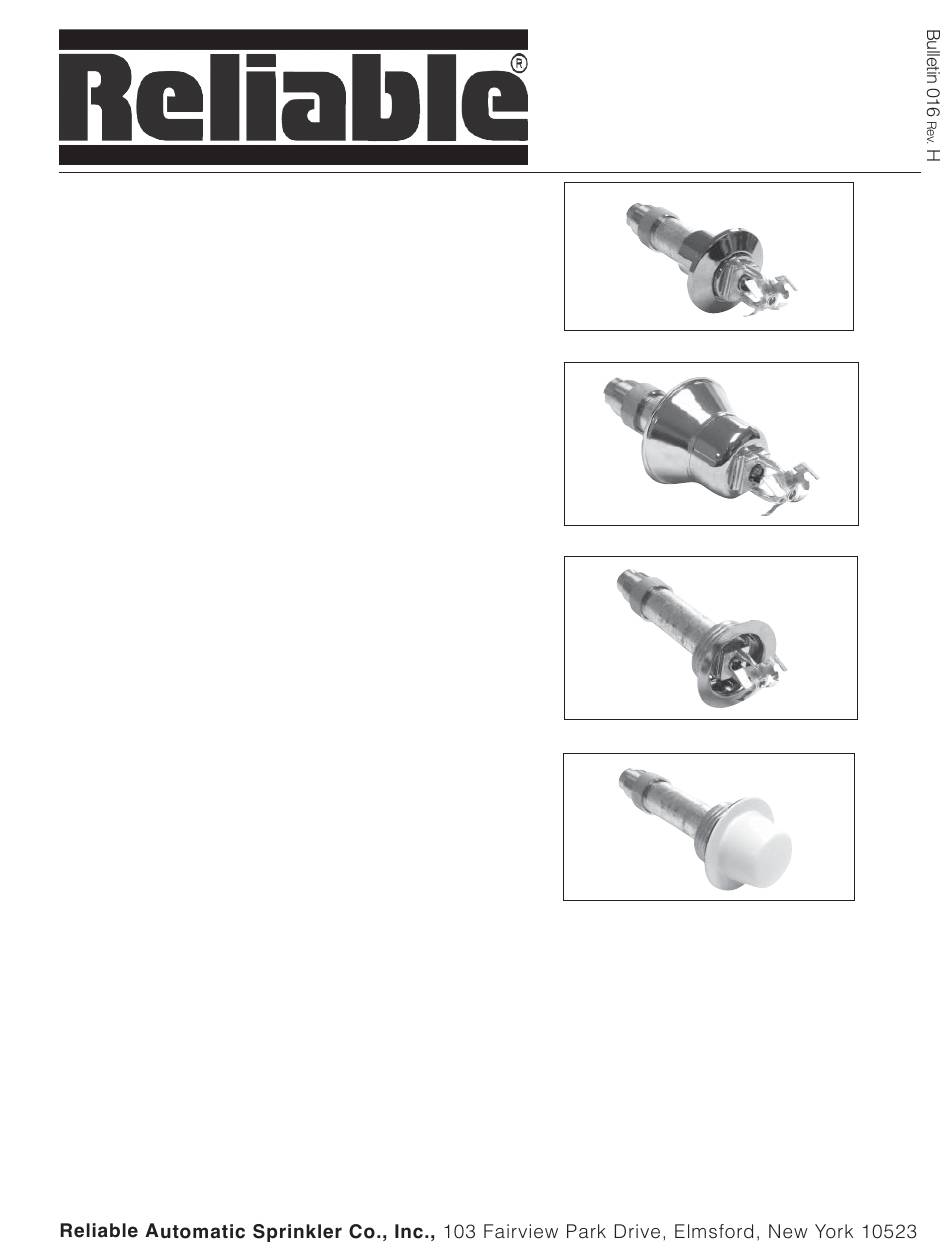

Model DH56 HSW
Model DH56 HSW Recessed
Model DH56 HSW Concealed
Quick Response,
Extended Coverage Dry Sprinklers
(1)
)*
®
DH56 HSW/HB (See Fig. 5)
DH56 HSW FP Recessed (See Fig. 6)
with SWC coverplate (See Fig. 7)
The SWC cover plate and FP recessed escutcheons have
½" adjustment. The SWC cover plate is attached with 135
& 165 degree solder. In the event of a fire the rising ambient
temperature melts the solder and the cover plate is ejected
away by springs exposing the 3mm frangible glass bulb.
The use of a 3mm bulb allows quick response which enables
the sprinkler to apply water to a fire sooner than standard
response sprinklers of the same temperature rating.
Model DH56 dry sprinklers are intended for use in dry
and preaction systems to protect areas subjected to freez-
ing temperatures and unheated portions inside and outside
buildings. See Fig. 1 for guidelines on using dry sprinklers in
wet systems.
Bulletin 016
DH56 HSW (See Fig. 4)
DH56 HSW Concealed
H
Rev.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DH56 HSW and is the answer not in the manual?

Questions and answers

Summary of Contents for Reliable DH56 HSW

  • Page 1 The Model DH56 dry sprinkler with SWC cover plate away by springs exposing the 3mm frangible glass bulb. is a concealed sprinkler that uses Reliable’s push on/thread The use of a 3mm bulb allows quick response which enables off sidewall cover. This sprinkler has the cup factory mounted...
  • Page 2: General Installation Instructions

    Installation Wrenches: Throughout this technical bulletin, Reliable has specified specific installation wrenches for use on each version of our sprinklers. A pipe wrench may also be used to install a dry sprinkler provided that it only interfaces with the steel outer tube of the assembly (Item #8 on fig 10). Keep in mind that a pipe wrench will incorporate a large amount of torque into the final assembly.
  • Page 3 Fig. 1...
  • Page 4: Maintenance

    ½” (13mm) adjustment. Standard finish shall be chrome, white and brass. Quick response recessed horizontal sidewall sprinklers shall be Reliable Model DH56, SIN RA1664 (Bulletin 016). Fig. 2 - XLO2 Wrench For concealed EC horizontal sidewall sprinklers: Replace “horizontal sidewall”...
  • Page 5 Note: The Sprinkler Can protrudes when escutcheon is in nominal position. Escutcheon adjustment provides ¼” (-6mm) to +1 (+32mm) “A” dimension adjustment range. ¼” ¼” Fig. 4 Note: The Sprinkler Can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment pro- vides - ½”...
  • Page 6 Note: Do not install the Model DH56 Dry EC Horizontal Recessed Sidewall Sprinkler in walls which have positive pressure in their side space. Fig. 6 Fig. 7...
  • Page 7 Fig. 8...
  • Page 8: Ordering Information

    Installation Wrenches: Throughout this technical bulletin, Reliable has specified specific installation wrenches for use on each version of our sprinklers. A pipe wrench may also be used to install a dry sprinkler provided that it only interferes with the steel outer tube of the assembly (item #8 on fig 16). Keep in mind that a pipe wrench will incorporate a large amount of torque into the final assembly.
  • Page 9: Material Specifications

    MATERIAL SPECIFICATIONS ITEM # DESCRIPTION MATERIAL SPECIFICATION FRAME BRASS PER UNS C83600 DEFLECTOR BRONZE PER UNS C51000 LOAD SCREW BRASS PER UNS C22000 SEAT ADAPTOR BRASS ALLOY PER UNS C36000 BULB INSERT COPPER ALLOY PER UNS C331400 GLASS BULB GLASS W/GLYCERIN SOLUTION ORIFICE ADAPTOR BRASS ALLOY PER UNS C36000 OUTER TUBE...
  • Page 10 Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
