Reliable DH56 HSW Quick Start Manual

Quick response, extended coverage dry sprinklers
Hide thumbs Also See for DH56 HSW:

Advertisement

Quick Links

For coverages up to 28 feet wide and
(1)
10 feet long
. 250 psi (17,2 bar) rated.
Features:
1.
Coverage for long and narrow spaces such as hallways,
corridors, decks and rooms up to 28 feet wide and 10
feet long.
(1)
2.
Deflector to ceiling dimensions are:
4" (102mm) min. to 12" (305mm) max.
3.
Minimum spacing between sprinklers 13 feet (4m).
4.
Polyester Coated Corrosion Resistant Sprinklers (cULus)
5.
UL Listed for extended coverage, light hazard applications.
6.
5.6 K Factor.
7.
Sprinkler is approved for
250 psi (17,2 bar) applications.
8.
Quick response performance.
9.
½" (13mm) adjustment of escutcheon and cover.
10.
Concealed cover plate can prevent the sprinkler from being
used for unintended purposes. No exposed thermal element
with the concealed version.
11.
Push-on/thread-off sturdy convenient escutcheon for recessed
and cover for concealed.
12.
Factory assembled sprinkler & cup, shipped complete with
bulb protector for concealed and FP recessed versions.
13.
Sprinkler & cup assembly and escutcheon or cover are
separately packaged.
14.
Cover finishes available in standard white paint, special
bronze, black paint or flat white paint.
See Fig. 9.
(1)
Approval Organizations
1.
Listed by Underwriters Laboratories Inc. and
UL certified for Canada (cULus)
2.
NYC MEA 258-93-E
Patents
US Patent No. 7,841,418
Other Patents Pending
Products Description
The Model DH56 are quick response extended cover-
age sidewall dry sprinklers for use in light hazard applica-
tions. The Model DH56 dry sprinkler with SWC cover plate
is a concealed sprinkler that uses Reliable's push on/thread
off sidewall cover. This sprinkler has the cup factory mounted
and is shipped with a bulb protector that protects the 3mm
frangible glass bulb during shipping and post installation fin-
ishing operations. The DH56 can be combined in the field
with the FP or F2 Escutcheon to make a recessed dry sprin-
kler. The SWC cover plate, FP and F2 recessed escutcheons
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

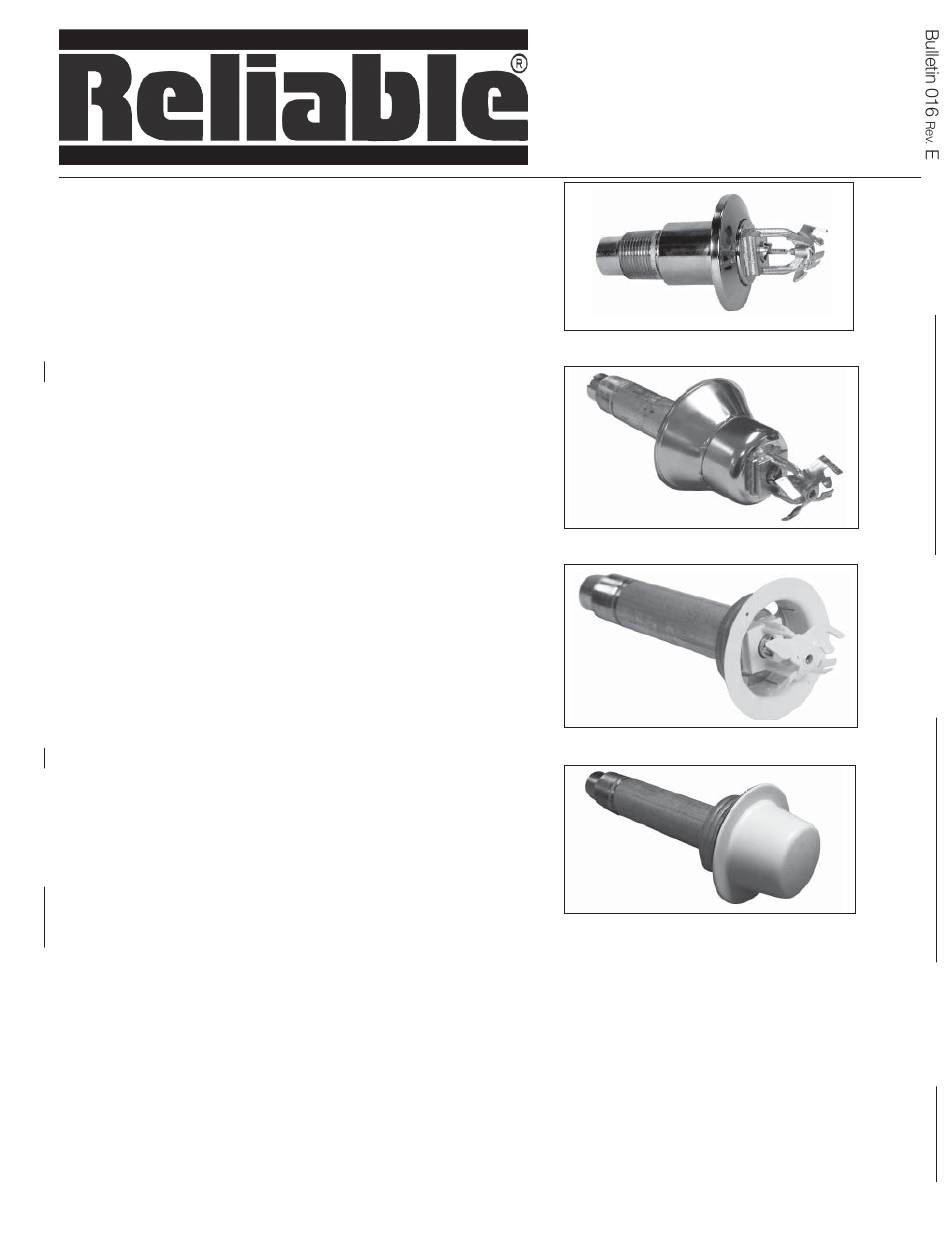

Model DH56 HSW
Model DH56 HSW Recessed
Model DH56 HSW Concealed
Quick Response,
Extended Coverage Dry Sprinklers
(1)
DH56 HSW FP Recessed (See Fig. 6)
with SWC coverplate (See Fig. 7)
have ½" adjustment. The SWC cover plate is attached with
135 & 165 degree solder. In the event of a fire the rising
ambient temperature melts the solder and the cover plate is
ejected away by springs exposing the 3mm frangible glass
bulb. The use of a 3mm bulb allows quick response which
enables the sprinkler to apply water to a fire sooner than stan-
dard response sprinklers of the same temperature rating.
Model DH56 dry sprinklers are intended for use in dry and
preaction systems to protect areas subjected to freezing tem-
peratures and unheated portions inside buildings. See Fig. 1
for guidelines on using dry sprinklers in wet systems.
Bulletin 016
DH56 HSW (See Fig. 4)
DH56 HSW/HB (See Fig. 5)
DH56 HSW Concealed
E
Rev.
