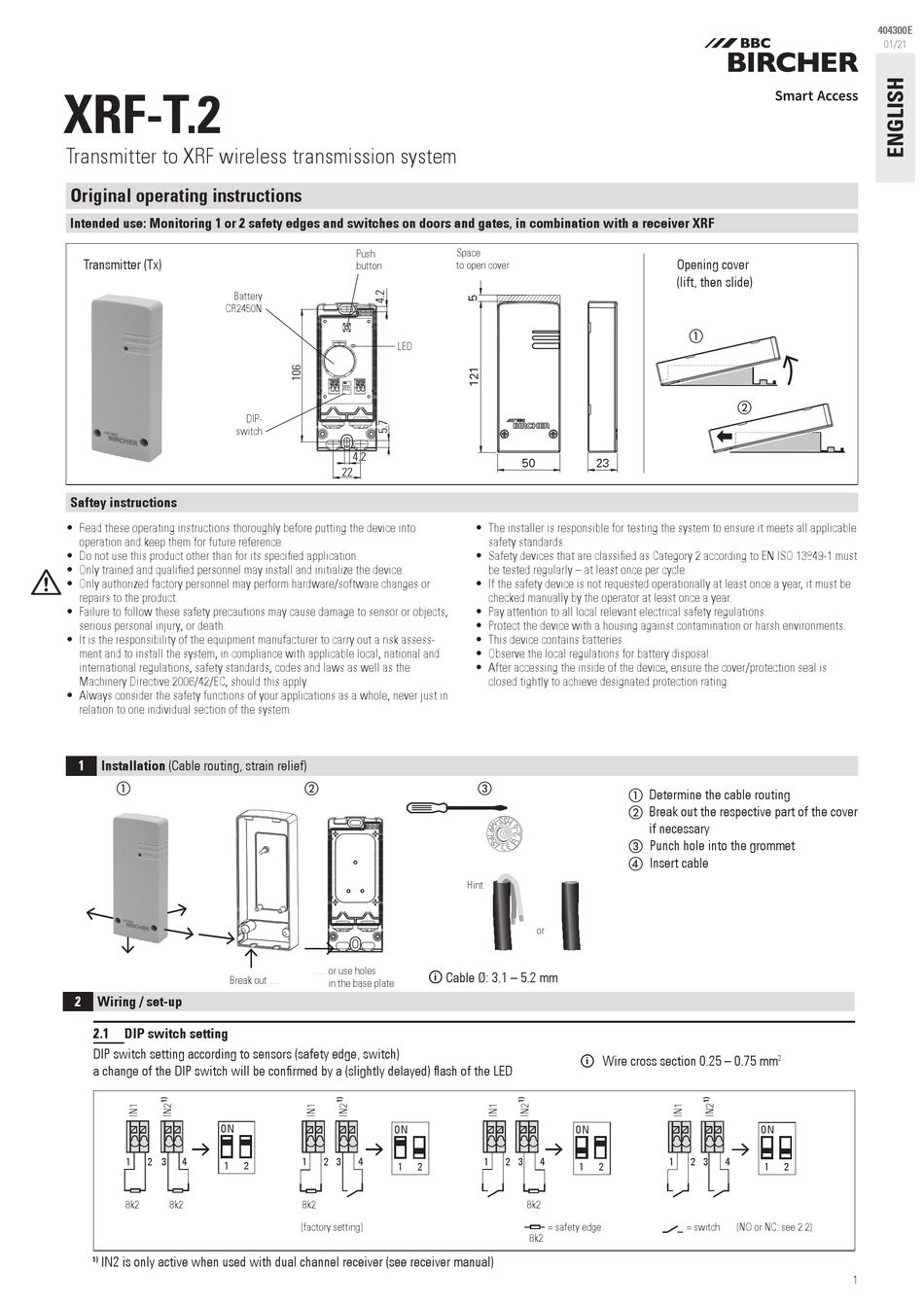

BBC Bircher XRF-T.2 Original Operating Instructions

XRF-T.2
Transmitter to XRF wireless transmission system
Original operating instructions
Intended use: Monitoring 1 or 2 safety edges and switches on doors and gates, in combination with a receiver XRF

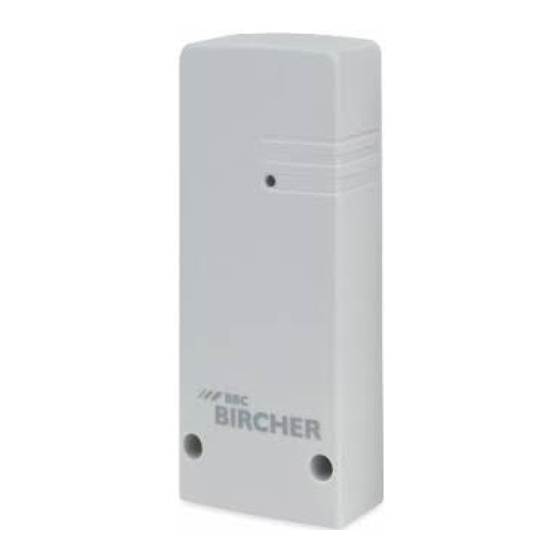

Transmitter (Tx)
Battery
CR2450N
switch
Saftey instructions
• Read these operating instructions thoroughly before putting the device into
operation and keep them for future reference.
• D o not use this product other than for its specified application.
• Only trained and qualified personnel may install and initialize the device.
• O nly authorized factory personnel may perform hardware/software changes or
repairs to the product.
• Failure to follow these safety precautions may cause damage to sensor or objects,
serious personal injury, or death.
• It is the responsibility of the equipment manufacturer to carry out a risk assess-
ment and to install the system, in compliance with applicable local, national and
international regulations, safety standards, codes and laws as well as the
Machinery Directive 2006/42/EC, should this apply.
• Always consider the safety functions of your applications as a whole, never just in
relation to one individual section of the system.
1 Installation (Cable routing, strain relief)

Break out ...
2 Wiring / set-up
2.1 DIP switch setting
DIP switch setting according to sensors (safety edge, switch)
a change of the DIP switch will be confirmed by a (slightly delayed) flash of the LED
ON
1 2 3 4
1
8k2 8k2
IN2 is only active when used with dual channel receiver (see receiver manual)
1)
Push
button
LED
DIP-
4.2
22

... or use holes
in the base plate
ON
1 2 3 4
2
1 2
8k2
(factory setting)
Space
to open cover
50 23 50 23
• The installer is responsible for testing the system to ensure it meets all applicable
safety standards.
• S afety devices that are classified as Category 2 according to EN ISO 13849-1 must
be tested regularly – at least once per cycle.
• If the safety device is not requested operationally at least once a year, it must be
checked manually by the operator at least once a year.
• Pay attention to all local relevant electrical safety regulations.
• Protect the device with a housing against contamination or harsh environments.
• This device contains batteries.
• Observe the local regulations for battery disposal.
• After accessing the inside of the device, ensure the cover/protection seal is
closed tightly to achieve designated protection rating.

Hint:
or
Cable Ø: 3.1 – 5.2 mm
i
Wire cross section 0.25 – 0.75 mm
i
ON
1 2 3 4
1 2
8k2
= safety edge
8k2
Opening cover
(lift, then slide)


 Determine the cable routing
 Break out the respective part of the cover
if necessary
 Punch hole into the grommet
 Insert cable
2
ON
1 2 3 4
1 2
= switch (NO or NC: see 2.2)
404300E
01/21
1
