BBC Bircher XRF-T.2 Original Operating Instructions

XRF-T.2
Transmitter to wireless signal transmisssion system for safety edges
Original operating instructions
Intended use: Monitoring safety edges on doors and gates, in combination with the XRF-Rx receiver

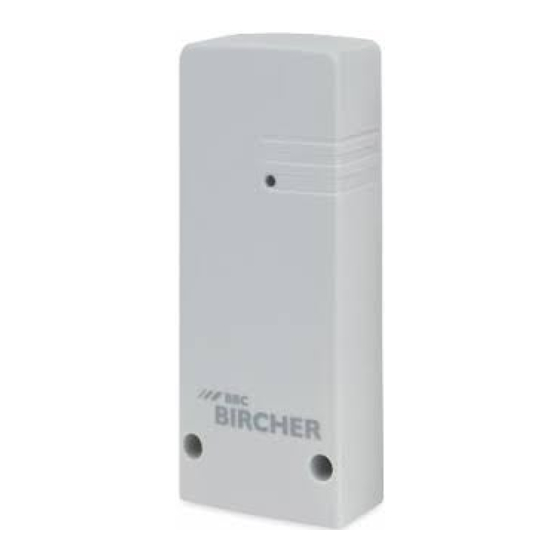

Transmitter (Tx)
1 Installation
1.1 Cable routing, strain relief
 Determine the cable routing
 Break out the respective part of the cover if necessary

Break out ...
2 Wiring / set-up
2.1 DIP switch setting
DIP switch setting according to sensors (safety edge, switch)
ON
1 2 3 4
1
8k2 8k2
IN2 is only active when used with dual channel receiver (see receiver manual)
1)
Battery
CR2450N
DIP-
switch
 Punch hole into the grommet
 Insert cable

... or use holes
in the base plate
ON
1 2 3 4
2
1 2
8k2
(factory setting)
Space
Push
to open cover
button
LED
4.2
50 23
22

Hint:
or
Cable Ø: 3.1 – 5.2 mm
i
Wire cross section 0.25 – 0.75 mm
i
ON
1 2 3 4
1 2
8k2
= safety edge
8k2
50 23
1.2 Space to open cover
50
2
ON
1 2 3 4
1 2
= switch (NO or NC: see 2.2)
404300D
09/20
23
1
