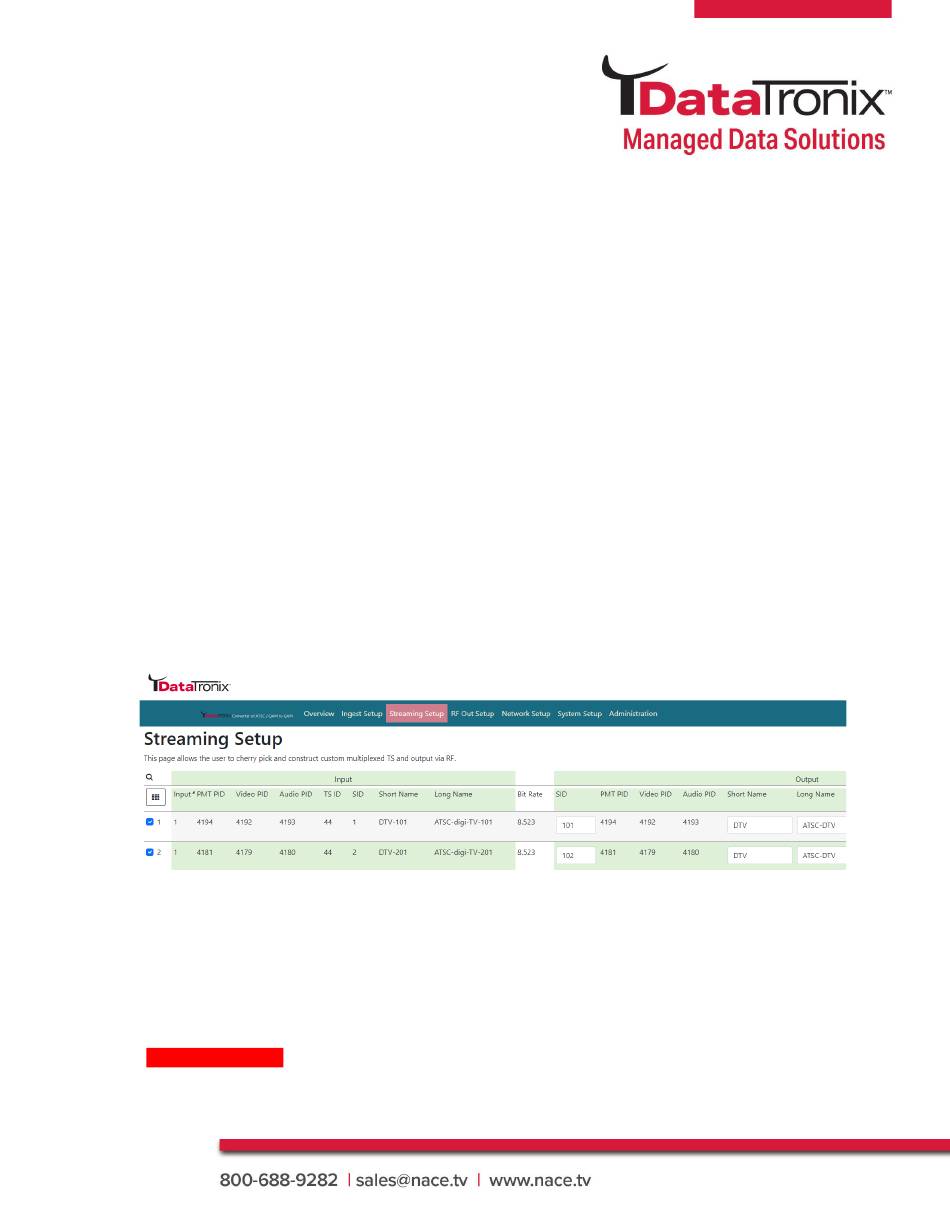

Streaming Setup

Use the [Streaming Setup] page to set the output: SID, Select VCN Mode Type, VCN, Short
Name, and other parameters.
Enable / Select / and Setup Streams
1. Enable each stream/program as required by checking the check box
Note: To remove a stream/program - deselect/uncheck the stream(s) #
on the left side of the table
2. Modify SID (Services Output ID)
Note 1: If installing multiple DT-ATSC-QAM-8V2 units make sure not to duplicate SID
outputs
Note 2: Enter SID for a program and the followed programs will be assigned by consecutive
numbers
3. Enter Short Name [1-7 Characters]
4. Enter Long Name [1-16 Characters]
5. Select VCN Mode:
VCN Mode 2-Part Auto [Example 102.1 – Set Automatically by the Device]
VCN Mode 2-Part Manual [102.2 – Manual Entry by User]
VCN Mode 1-Part Manual [102 – Manual Entry by User]
Note: Only 1 VCN mode type can be selected
Modify Source ID as required
6.
Note: If installing multiple DT-ATSC-QAM-8V2 units make sure not to duplicate source ID
outputs
Select RF# from 1-8 to assign programs to desired carrier
7.
Note 1: Bitrate mapping may be required based on the Mbps of the streams/programs in
the RF Out
Note 2: Use the streaming setup page to move program(s) as needed to allow for
increased overhead of required programs
8. Save and Confirm all parameters
*****Note: Leaving any Streaming Setup page without saving the set parameters
will cause the device to revert to the last saved settings
