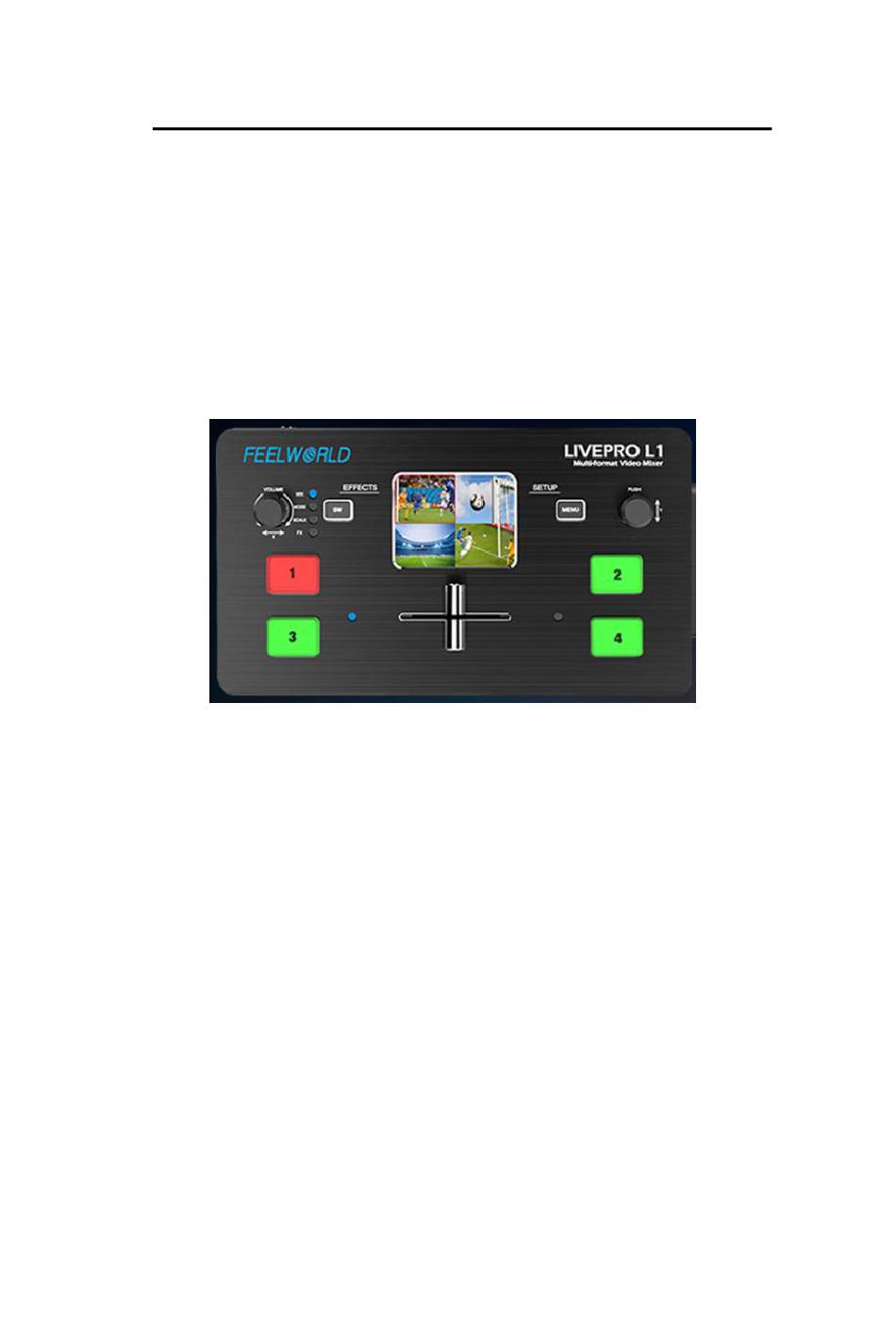

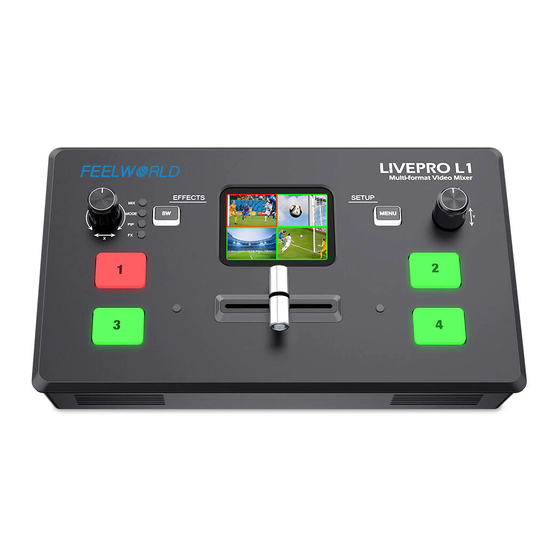

  • Page 1 LIVEPRO L1 Multi - format Video Mixer USER MANUAL...
  • Page 2 Thank you for your purchasing our product! In order to let you quickly grasp how to use this signal switcher, the following is the detailed product instruction.You can read it and how to use it before using the switcher. Please read all the information we provide carefully, and brake you to use our products correctly.
  • Page 3 Features  USB capture video complying with UVC for live streaming  4 CH HDMI inputs  2” TFT display on board to live preview 4 inputs  Auto cut and manual switch (T-Bar)  14 transition effects on T-Bar ...

  • Page 4: Table Of Contents

    CONTENTS 1. Production Instruction............. 5 1.1 Product Overview............. 5 1.2 System Connection............5 1.3 Front Panel............... 6 1.4 Interface Panel..............7 2. Product Using..............7 2.1 MENU................7 2.2 Main Menu..............8 2.2.1 INPUT................8 2.2.2 HDMI................8 2.2.3 USB3.0................9 2.2.4 AUDIO................
  • Page 5 3. Switch Input Source............13 4. Software Operation............14 5. OBS Streaming............... 22 6. Streaming Setting............25 7. Upgrade................26 8. Specification..............28...

  • Page 6: Production Instruction

    1.Product Instruction 1.1 Product Overview LIVEPRO L1 is a mini signal switcher and mixer which is able stream 6-picture PVW or PGM from any one out of the 4 HDMI inputs to any live broadcasting platform via the third party live streaming software such as OBS.

  • Page 7: Front Panel

    1.3 Front Panel TFT display To display 4 inputs and menu PUSH/Y 1. Knob, turn to select menu item, push to confirm 2. Work as a quick button to switch HDMI Out between 6-Picture PVW and PGM when TFT is under the state of previewing 4 inputs.

  • Page 8: Interface Panel

    MIC to Line or connect to MIC interface of computer directly AUDIO IN / OUT when connecting microphone; AUDIO Out, audio output port, connect to loudspeaker, headset, etc. 2.Product Using MENU When LIVEPRO L1 is power on, the native TFT display show starting up page.

  • Page 9: Main Menu

    2.2 Main Menu The menu will automatically exit after about 5 seconds when there is no operation. 2.2.1 INPUT Push MENU and select the first menu item <Input> Push knob to enter <Input> menu 2.2.2 HDMI Push MENU and select the second menu item <HDMI> Push knob to enter <HDMI>...

  • Page 10: Usb3.0

    1. If there is microphone and audio interface, please connect microphone to the audio interface and connect the output interface of the audio interface to the AUDIO IN interface of LIVEPRO L1. 2. If there is microphone without sound adapter, please connect the microphone...

  • Page 11: Ip Setting

    1. If there is wireless microphone and it with earphone interface, please connect this interface to AUDIO IN of LIVEPRO L1. Note: Because there are variety of wireless microphone, if you can’t use normally when connect to the LIVERPRO L1 directly, please use it with audio interface or amplifier.

  • Page 12: Info

    INFO: Show the SN, IP, MAC,MCU version and VIDEO version. 2.3 BUTTON SW On LIVEPRO L1 push button SW, the TFT will show the transition effect menu <MIX>. The <MIX> LED indication beside will light up. Push again, it will skip to the next menu <MODE>, again to <PIP >...

  • Page 13: Mode

    Wipe to Left Wipe to Top Center Split Horizontal Center Split Vertical Cross Inwards Blinds Vertical Box Inwards Iris Round 2.3.2 MODE Keep pushing the button SW to open up MODE menu. MODE: FAST or T-Bar TIME: 0.5-5.0S Choose FAST, the switching will be without transition effect but in set time. Choose T-Bar, the switching will be with selected transition effect by pushing T-Bar.

  • Page 14: Switch Input Source

    L1 supports matting the Chroma Key in the menu, removing the pure color background and overlaying it on another signal to realize the application of virtual reality. Matting can be done on the software “Feelworld Live” or simple settings and adjustments can be made on the device.

  • Page 15: Software Operation

    4. Software Operation Connection Way 1. Connect the LAN port of the computer to the LAN port of LIVEPRO L1, manually set the IP for the computer and LIVEPRO L1, you can connect LIVEPRO L1 and the computer to the same LAN.
  • Page 16 Select the desired device by SN and IP and enter the management interface. The software interface is a simulation of operation panel on real LIVEPRO L1device. For example, clicking Button M can open up menu as on the device. MIX and PIP click via button S INPUT INFO In the【Input Info】you can check...
  • Page 17 Output: PVW/PGM Format: 1920×1080@60(max) Click<Set>after confirm Live Streaming Capture Device: Choose FEELWORLD USB3.0 Capture H.265: When it is ON, users can watch Preview or PGM streaming back on XPOSE software. The streaming back content is subject to USB 3.0 output setting.
  • Page 18 AudioSource: AFV/Linein/input1,2,3,4 Audio Bar: ON/OFF TEST PATTERN To facilitate troubleshooting, Feelworld Live provides a test signal output, which can be used to troubleshoot the USB or HDMI output interface when there is no output signal from USB or HDMI. Output: Select the USB/HDMI interface to be tested.
  • Page 19 HDMI Output Setting DVI/HDMI: Choose output type as DVI or HDMI, default is HDMI. Bits: 8bit/10bit/12bit, default is 8bit. Color Space: Video or Image, default is image. DE On/Off: On/Off DE H Pos: input value to adjust output horizontal position DE V Pos: input value to adjust output vertical position DE H Size: input value to adjust output horizontal size DE V Size: input value to adjust output vertical size...
  • Page 20 Password Protection In order to solve the problem of control conflicts caused by different devices controlling the same L1 in the same LAN, Feelworld Live provides a password protection function, as an administrator, you can set a password for the device controlling Feelworld Live, and when you control the interface again, you need to enter the password to control it.
  • Page 21 English, Russian and German. T-Bar Calibration If the T-Bar is not in the correct position, no other operation is possible. T-Bar correction is available in Feelworld Live. The steps are as follow： 1. Turn on the T-Bar Calibration switch. 2. Push the T-Bar to the far right side.
  • Page 22 Mode: Fast/T-Bar Time: 0.5s~5.0s Layout: 15 kinds There are 9 kinds of PIP layout Chroma Key (1) Click S button and FX, open Chroma Key menu, as shown in the picture below:...

  • Page 23: Obs Streaming

    B layer in the PIP setting, otherwise you may not see the chromakey effect. 5.OBS Streaming LIVEPRO L1 is compatible with many third party steaming software, we recommend OBS, which is available to download on https://obsproject.com/download. Download the software and update to the latest version.
  • Page 24 If there is no video format YUY 2 after setting above, check the USB 3.0port connection. Make sure it is linked to USB 3.0 port on PC by USB 3.0 cable. (USB 3.0 cable or port is standard in blue while USB 2.0 is in black) If the captured video is showing mosaic, change the video format to YUY2.
  • Page 25 Audio Setting When there is no audio playing first check the video source see if the it is set in default value and then check the audio setting on OBS. 1. Set Default for the audio source. 2. Audio setting on OBS. Choose Audio, click Setting and choose audio device (Mic/Auxiliary Audio Device)

  • Page 26: Streaming Setting

    6.Streaming Setting 1. Find the UL and Live Streaming Code provided by streaming broadcast website. 2. Copy rtmp address and broadcast code. 3. Back to OBS, click setting in the lower right corner and click “Stream”. Choose Stream Type as “Custom Streaming Server” Paste the rtmp address to server and broadcast code to stream key.

  • Page 27: Upgrade

    1. Tools: XTOOL software and upgrade cable 2.Upgrade Method: LAN port upgrade 2.1 Turn on the power on LIVEPRO L1 and use LAN cable to connect device. 2.2 The default IP is 192.168.0.99, so make sure the PC and device are in the same IP segment.
  • Page 28 2.5 Upgrade Program After communication setting is done, the status light in bottom left turns green. Click Confirm to start upgrade. 2.5.1 After upgrade is done, there will pop up a window showing “New Version Upgraded” then users need to reboot the device to let the new version take effect.

  • Page 29: Specification

    8.Specification Input HDMI In 4×HMDI-A HDMI Out 1×HMDI-A USB3.0 1×USB TypeA 1×3.5mm Stereo Jack Connections Audio 1×3.5mm Stereo Jack Communication LAN 1×RJ45 Power 1×DC Jack HDMI SMPTE:720p@50/60|1080i@50/60|1080p@23/2 4/30/50/60 Input VESA:1024X768@60|1280X720@60|1280X768 Resolutions @601280X800@60|1280X1024@60|1360X768 @60|1366X768@60|1440X900@60|1600X1200 @60|1680X1050@60|1920X1080@60|1920X Performance 1200@60 HDMI Output SMPTE:720p@50/60|1080p@24/25/30/50/60 Resolutions VESA:1024X768@60|1280X720@60|1280x768 @60|1280X1024@60|1360X768@60 HDMI...
