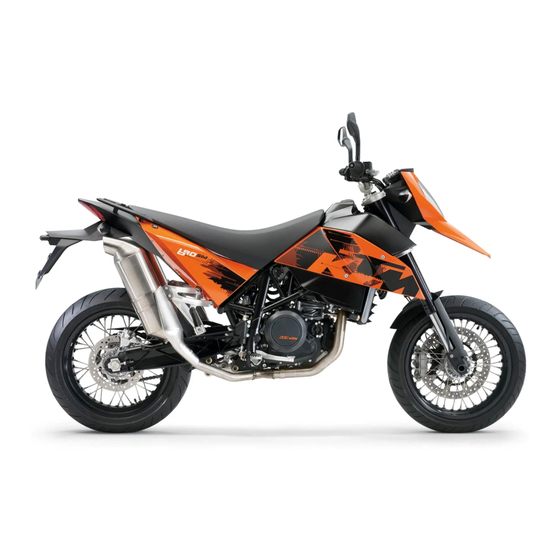

- Page 1 SETUP INSTRUCTIONS 2008 Packaging 5 690 SUPERMOTO EU 690 SUPERMOTO AUS/UK 690 SUPERMOTO R EU 690 SUPERMOTO R AUS/UK 690 SUPERMOTO R USA ART. NO. 3211381en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION 1 M EANS OF REPRESENTATION Symbols used The symbols used are explained in the following. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). - Page 5 SET‑UP 2 S ET‑UP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle when mounting the handlebar, do not remove the plastic on the fuel tank until after all of the work has been com- pleted.
- Page 6 Together with an assistant, take the vehicle off of the palette. – Fill up with fuel. ( S. 8) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( S. 7)
-
Page 7: Mounting The Seat
WORK 3 W ORK Removing the seat – Insert the ignition key in the seat lock and turn it 45° counterclockwise. – Lift up the seat at the rear, pull it back and remove from above. 100108-10 Mounting the seat –... -
Page 8: Recharging The Battery
WORK – Carefully move the fuel tank forwards and lower it. – Mount and tighten the screw with the rubber bushing and bearing sleeve. Check fuel tank for tight fitting. Guideline Screw, fuel tank bracket 15 Nm (11.1 lbf ft) – Check the routing of the fuel hoses. –... -
Page 9: Setting The Clock
WORK – Connect the battery charger to the battery. Switch on the battery charger. Battery charger (58429074000) You can also use the battery charger to test rest potential and start potential of the battery, and to test the generator. With this device, you cannot overcharge the bat- tery. - Page 10 WORK Refueling Danger Fire hazard Fuel can easily catch fire. – Never fill up the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
-
Page 11: Technical Data - Chassis Tightening Torques
TECHNICAL DATA - CHASSIS TIGHTENING TORQUES 4 T ECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Screw, combination instrument 1 Nm (0.7 lbf ft) – Screw, combination instrument holder 1 Nm (0.7 lbf ft) ® Screw, side stand switch 2 Nm (1.5 lbf ft) Loctite 243™ – Spoke nipple, front wheel M4,5 5 Nm (3.7 lbf ft) (690 SUPERMOTO) - Page 12 TECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Screw, rear footrest clamp 25 Nm (18.4 lbf ft) ® Screw, rear footrest bracket 25 Nm (18.4 lbf ft) Loctite 243™ – Screw, top triple clamp 12 Nm (8.9 lbf ft) – Screw, bottom triple clamp 15 Nm (11.1 lbf ft) – Screw, fork stub 15 Nm (11.1 lbf ft) –...
- Page 13 SUBSTANCES 5 S UBSTANCES Super unleaded (ROZ 95 / RON 95 / PON 91) according to – DIN EN 228 (ROZ 95 / RON 95 / PON 91)
- Page 14 *3211381en* 3211381en KTM-Sportmotorcycle AG 5230 Mattighofen/Austria http://www.ktm.com...
