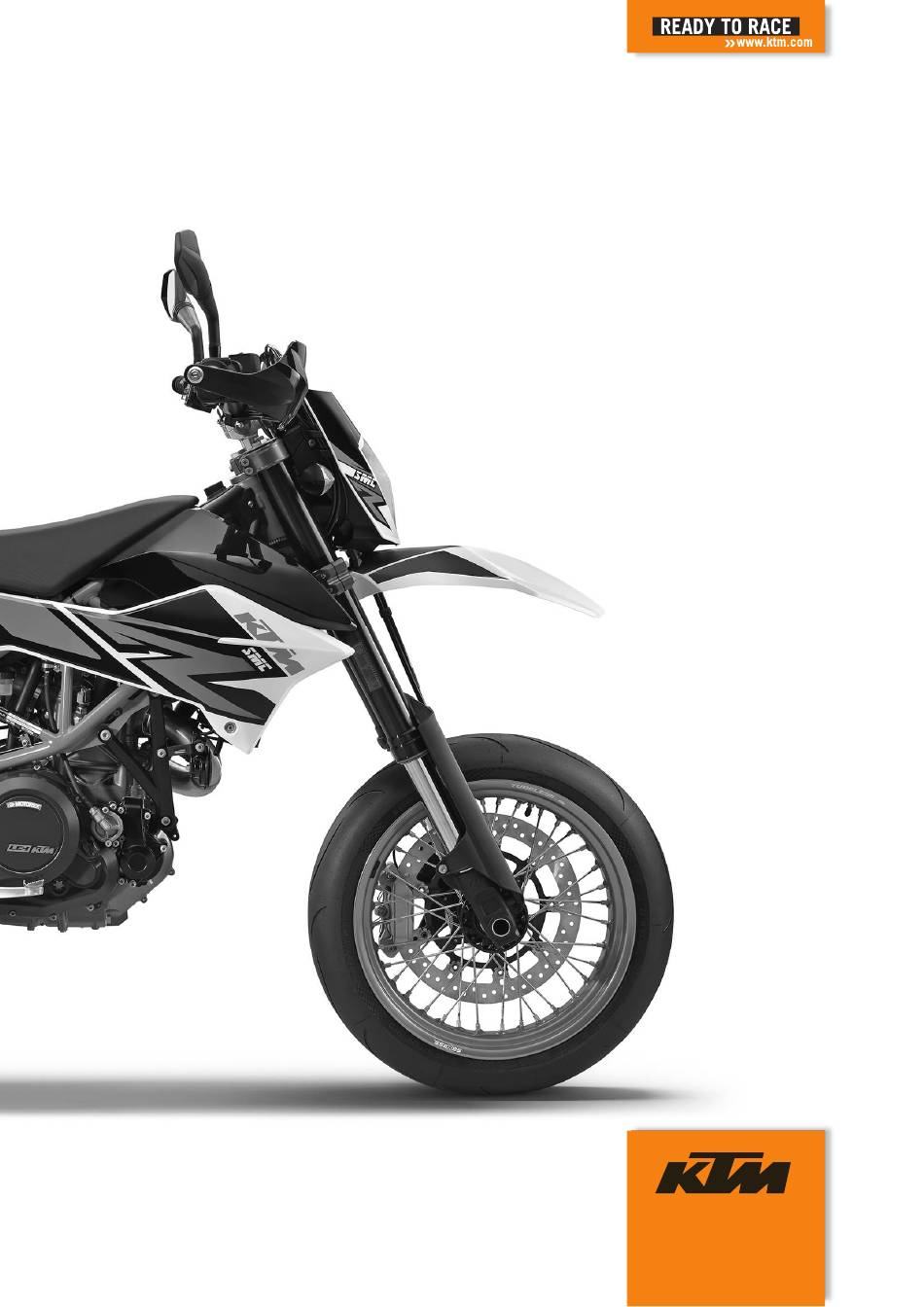

SETUP INSTRUCTIONS
2017
690 SMC R
Art. no. 3213599en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 690 SMC R and is the answer not in the manual?

Questions and answers

Related Manuals for KTM 690 SMC R

Summary of Contents for KTM 690 SMC R

  • Page 1 SETUP INSTRUCTIONS 2017 690 SMC R Art. no. 3213599en...
  • Page 3 KTM accepts no liability for delivery options, devi- ations from illustrations and descriptions, misprints, and other errors.

  • Page 4: Means Of Representation

    MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 SETUP Unpacking and setting up the vehicle – Remove the straps and box. S01530-10 – Remove the adhesive tape in the upper area of the motorcycle. S01534-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle.
  • Page 6 SETUP – Position the handlebar. – Position the handlebar clamps. Mount the four screws and tighten evenly. Guideline Screw, handlebar clamp 20 Nm (14.8 lbf ft) The markings of the handlebar scale are located centrally between the han- dlebar clamps. Markings face backwards.

  • Page 7: Remove Screws

    – Mount heel protector. ( p. 11) – Refuel. ( p. 11) – Prepare the vehicle according to the specifications in the KTM Dealer.net for han- dover to the customer. – Set the kilometers or miles. ( p. 13)
  • Page 8 WORK Removing the seat – Pull on strap and raise the rear of the seat at the same time. – Pull back the seat and lift it off. 101977-10 Mounting the seat 101988-10 – Hook slot of the seat onto screw , press the rear downward and at the same time push it forward.

  • Page 9: Recharging The Battery

    WORK – Disconnect negative cable from the battery. – Take off positive terminal cover S00622-10 – Disconnect ABS connection cable and positive cable from the battery. S00620-10 – Remove screws – Pull retaining bracket of the battery forward and remove it. –...

  • Page 10: Installing The Battery

    WORK Info Even when there is no load on the battery, it still loses power steadily. The charging level and the method of charging are very important for the service life of the battery. Rapid recharging with a high charging current shortens the battery's service life. If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves.
  • Page 11 WORK – Position positive terminal cover – Position washer and negative cable , and mount and tighten the screw. Guideline Screw, battery terminal 4.5 Nm (3.32 lbf ft) S00622-11 – Position the engine electronics control unit – Mount battery cover S00624-10 Finishing work –...
  • Page 12 WORK Closing filler cap – Put the filler cap back on and turn the ignition key 90° clockwise. – Remove the ignition key and fold down the cover. 101976-01 Removing rear fairing Preparatory work – Remove the seat. ( p. 6) Main work –...
  • Page 13 WORK – Mount and tighten screws – Tighten the screws of the grab handles. Guideline Screw, grab handle 10 Nm (7.4 lbf ft) – Mount the seat. ( p. 6) S01536-10 3.10 Mounting rear footrest bracket Info The operations are the same for the left and right sides. –...

  • Page 14: Setting The Clock

    WORK Warning Danger of poisoning Fuel is poisonous and a health hazard. – Avoid skin, eye and clothing contact with fuel. – Immediately consult a doctor if you swallow fuel. – Do not inhale fuel vapors. – In case of skin contact, rinse the affected area with plenty of water. –...
  • Page 15 WORK 3.14 Setting the kilometers or miles Info If the unit is changed, the value is retained and converted accordingly. Make the setting according to the country. Condition The motorcycle is stationary. – Switch on the ignition by turning the ignition key to position ON –...

  • Page 16: Technical Data

    TECHNICAL DATA Chassis tightening torques – Screw, chain guard EJOT 2 Nm (1.5 lbf ft) – Screw, combination instrument EJOT 1 Nm (0.7 lbf ft) – Screw, license plate holder, bottom EJOT 3 Nm (2.2 lbf ft) – Screw, side cover on spoiler EJOT 1 Nm (0.7 lbf ft) –...
  • Page 17 TECHNICAL DATA – Screw, wheel speed sensor 6 Nm (4.4 lbf ft) Nut, rear sprocket screw 35 Nm (25.8 lbf ft) Loctite ® 2701™ – Remaining nuts, chassis 25 Nm (18.4 lbf ft) – Remaining screws, chassis 25 Nm (18.4 lbf ft) –...
  • Page 18 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
  • Page 19 *3213599en* 3213599en 10/2016 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
