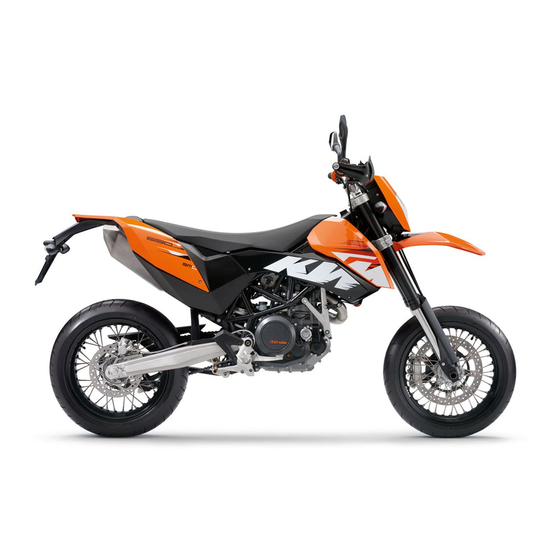

Summary of Contents for KTM 690 SMC 2008

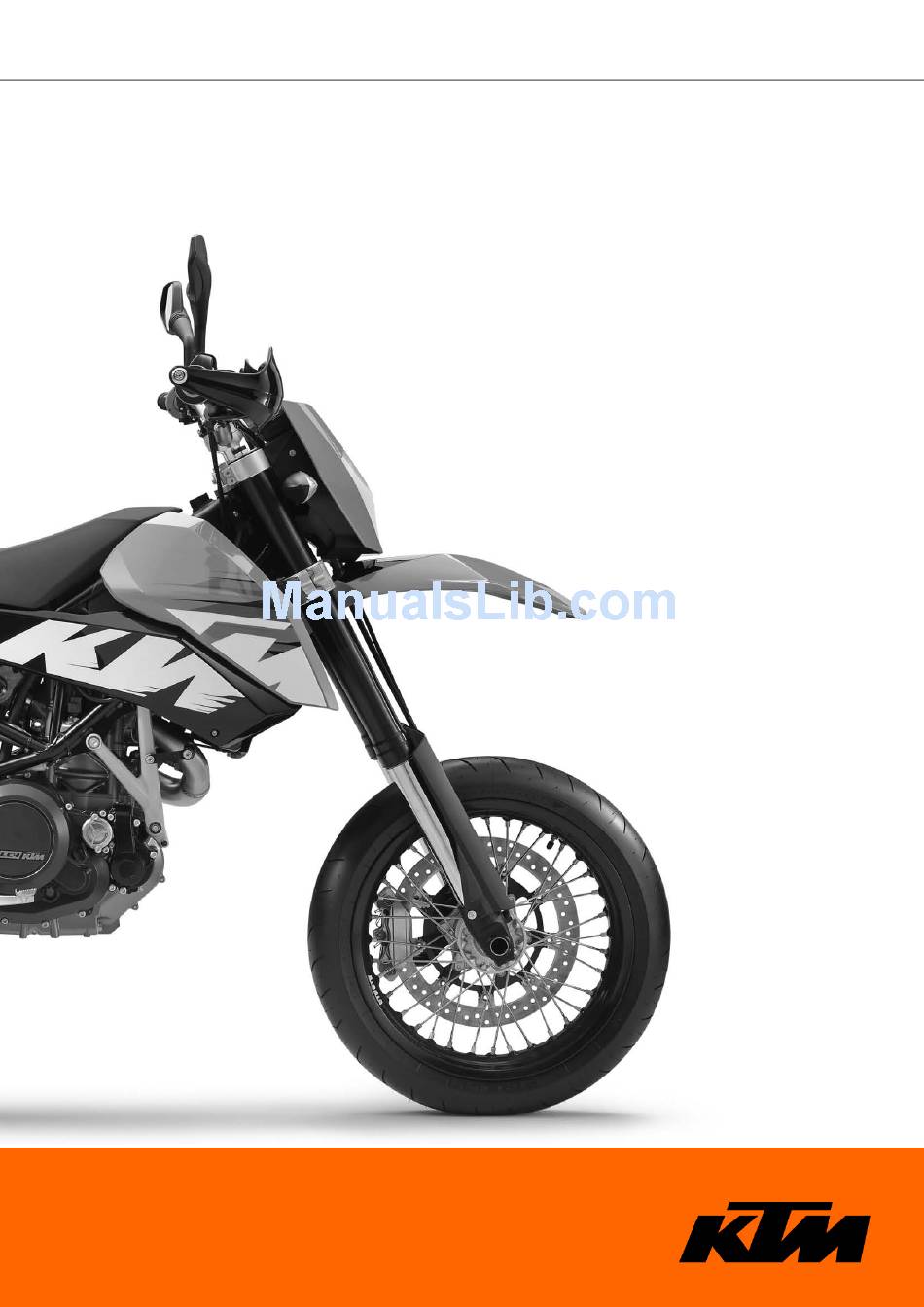

- Page 1 SETUP INSTRUCTIONS 2008 Packaging 5 690 SMC EU 690 SMC AUS/UK 690 SMC USA ART. NO. 3211383en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION 1 M EANS OF REPRESENTATION Symbols used The symbols used are explained in the following. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). - Page 5 SET‑UP 2 S ET‑UP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective foil on the the vehicle until you have finished. – Check the vehicle for transport damage.
- Page 6 SET‑UP – Mount and tighten the rear mirror adapter and rear mirror on both sides. – Position all operating elements exactly on the handlebar. Tighten all screws. – Fit and tighten the M8 screw of the right hand guard. 600646-01 –...
- Page 7 – Fit the heel protector. ( S. 9) – Fill up with fuel. ( S. 10) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( S. 11)
-
Page 8: Mounting The Seat
WORK 3 W ORK Removing the seat – Pull on strap and raise the rear of the seat at the same time. – Pull back the seat and lift it off. 100230-10 Mounting the seat – Hook slot of the seat onto screw , press the rear downward and at the same ... -
Page 9: Recharging The Battery
WORK Recharging the battery Warning Risk of injury Battery acid and battery gases cause serious cauterization. – Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. – Avoid contact with battery acid and battery gases. –... -
Page 10: Installing The Battery
WORK Installing the battery – Slide the battery into the battery rack. Info The battery terminals must be at the rear. – Attach the positive cable and mount positive terminal cover – Position retaining bracket – Mount and tighten screws ... -
Page 11: Fitting Rear Fairing
WORK – Remove screws – Open the filler cap. ( S. 8) – Take off the rear fairing. – Close the filler cap. ( S. 8) 100314-10 Fitting rear fairing – Position the license plate holder and cable harness. –... - Page 12 WORK Warning Forfeiture of homologation and insurance cover The vehicle is homologated as 2-seater. If the heel protector is fitted instead of the footrest bracket, the vehicle no longer conforms to the homologation and must not be operated in this form without alterations to the registration papers. –...
-
Page 13: Setting The Clock
WORK Setting the clock 3.13 Condition The motorcycle is standing. – Switch on the ignition by turning the ignition key in the position (690 SMC USA). – Press the MODE button several times until the ODO display mode is active. – Keep the MODE button and the SET button pressed simultaneously. The time begins to flash. -
Page 14: Technical Data - Chassis Tightening Torques
TECHNICAL DATA - CHASSIS TIGHTENING TORQUES 4 T ECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Remaining screws, chassis 4 Nm (3 lbf ft) – Spoke nipple, front wheel M4,5 4 Nm (3 lbf ft) – Spoke nipple, rear wheel 4 Nm (3 lbf ft) – Screw, exhaust heat shield 8 Nm (5.9 lbf ft) –... - Page 15 TECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Screw, connection lever on frame 30 Nm (22.1 lbf ft) – Remaining nuts, chassis 50 Nm (36.9 lbf ft) – Remaining screws, chassis 45 Nm (33.2 lbf ft) ® Engine carrying screw 45 Nm (33.2 lbf ft) Loctite 243™ ® Screw, top shock absorber 45 Nm (33.2 lbf ft) Loctite 243™...
- Page 16 SUBSTANCES 5 S UBSTANCES Super unleaded (ROZ 95 / RON 95 / PON 91) according to – DIN EN 228 (ROZ 95 / RON 95 / PON 91)
- Page 17 *3211383en* 3211383en KTM-Sportmotorcycle AG 5230 Mattighofen/Austria http://www.ktm.com...
