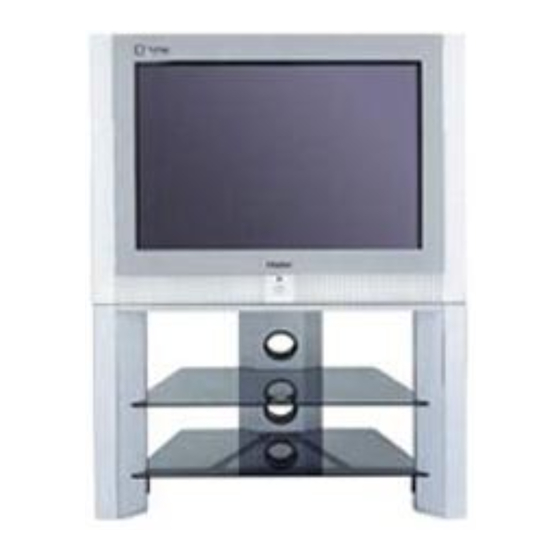

- Page 1 34F9K 34F9K COLOUR TV RECEIVER OWNER'S MANUAL H a i e r & H i g h e r Please read this manual carefully before using this TV set and keep it for future reference.
-
Page 2: Table Of Contents
* For your enjoyment of this TV set, please read this manual carefully and keep it good for future reference. CONTENTS Before Operation Warning and cautions...2 Installation...3 Antenna connection...3 Preparation of the remote control unit...3 Function buttons and external sockets...4 Front and side panel of the TV set...4 Rear panel of the TV set...4 Buttons on the remote control...5... -
Page 3: Warning And Cautions
Warning and cautions 1 When you clean the TV set, please pull out the power plug from AC outlet. Don't clean the cabinet and the screen with benzene, petrol and other chemicals. 2 In order to prolong the using life of the TV set, please place it on a ventilated place. -
Page 4: Installation
Installation Antenna connection Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .In different places, the suitable antenna type and position are different. 300 twin-lead cable Antenna adapter (additional purchase) coaxial cable Note It is recommended that you'd better use 75... -
Page 5: Function Buttons And External Sockets
Function buttons and external sockets Front and side panel of the TV set Volume up/ down TV/Video (input selector MENU Infrared sensor window Power switch Rear panel of the TV set Video output terminals: VIDEO AUDIO L, R Video 2 input terminals: VIDEO AUDIO DVD input terminals: Y, Cb, Cr If you want to connect the TV set to the other audio/video equipments, please refer to P23. -
Page 6: Buttons On The Remote Control
Buttons on the remote control MUTE SCAN LOCK CALL ZOOM TV/AV SWAP S.STD P.STD MENU VOL- VOL+ PICTURE SOUND LIGHT LIGHT TIME TUNE EXIT FUNCTION Buttons on the remote control Program scan Mute Zoom function Mono/stereo(No including) Program number Digital selector Picture mode selection Volume selection Picture menu... -
Page 7: Switching On/Off The Tv Set
Switching on/ off the TV set In the following, the methods of using power switch and the remote control to switch on/off power supply for the TV set will be explained. Switching on/ off the TV set MENU TV/Video Channel selector Volume up/ down (input selector Power indicator... -
Page 8: Watching Tv Program
Watching TV You can watch TV program in a presetting channel. Watching TV program How to select TV program Select the desired program Select the desired sound MENU VOL- VOL+ TV set to adjust the volume level. The range is 0~99. When TUNE If the colour of some channel is abnormal MENU... -
Page 9: Program Swap And Auto Scan Functions
Watching TV Continued Swap function enables quick swap to the last watched program. Auto scan function enables automatic successive scanning of all the programs in memory (each channel will last about 2 seconds), so that you are free from the trouble of pressing keys. -
Page 10: Searching Channel
Searching channel This TV set has three methods to set channels, which are respectively full automatic, semi automatic and manual fine tune. In this section, how to use the remote control to set channel is explained. You can also use buttons on the TV set to set channel. Full automatic mode TUNE MENU... -
Page 11: Semi-Automatic Search
Searching channel Continued Semi-automatic search Semi-automatic search 1 Press the CH+/- buttons or the PROGRAM NUMBER 0-9 button to choose desired channels regard channel 1 as example TUNE MENU VOL- VOL+ 2 Press the TUNE menu button , till the TUNING menu shown on the right display on the screen. -
Page 12: Manual Fine Tune
Searching channel Manual fine tune If the picture and/or sound are poor, try using the FINE TUNE feature. reception is poor. MENU VOL- VOL+ TUNE 2 Press the TUNE menu button , MENU VOL- VOL+ Continued Manual fine tune Do not use this feature unless 1 Press the CH+/- buttons or PROGRAM NUMBER 0-9 button to choose desired... -
Page 13: Program Skip
Searching channel Program skip VOL- MENU VOL+ TUNE MENU VOL- VOL+ Continued Program skip The Program skip feature enables you to skip/hide programs that you do not wish to be displayed when using the CH+/- buttons. These channels will still be displayed by directly using the channel number buttons on the remote control. -
Page 14: Convenient Picture And Sound Control Functions
Convenient picture and sound control functions Multiple picture modes P.STD PICTURE MENU VOL- VOL+ How to select picture modes You can quickly select the desired picture mode from four preset modes and one customized mode. Press the P.STD button to select the desired picture quality. -
Page 15: Black Stretch And Noise Reduce
Convenient picture and sound control functions Continued Black stretch and noise reduce FUNCTION MENU VOL- VOL+ FUNCTION 1 Press the FUNCTION menu button , till the FUNCTION menu shown on the right display on the screen. MENU VOL- VOL+ How to select black stretch 1 Press the FUNCTION menu button , till the FUNCTION menu shown on the right display on the... -
Page 16: Multiple Sound Modes
Convenient picture and sound control functions Continued Multiple sound modes Press the S.STD button to select the S.STD desired sound quality. Four kinds of sound models (i.e., " can be selected in turn. The 4 modes are: Speech-Designed to reduce the bass and treble which Theatre-Enables extra bass and treble to enhance the Music-Adjust the sound to best suit music programs;... -
Page 17: Surround, Woofer And Mute Functions
Convenient picture and sound control functions Continued Surround, Woofer and mute functions SOUND MENU VOL- VOL+ SOUND MENU VOL- VOL+ How to eliminate sound 1 Press the MUTE button on the MUTE remote control and "MUTE" type face will display on the lower part of the screen. -
Page 18: Time Functions
Time functions Clock setting and timer on/off functions TIME MENU VOL- VOL+ TIME MENU VOL- VOL+ Clock setting The clock will only work if the TV set if left turned on or in standby. When the set is disconnect from the power supply or is turned off by the main power on the front panel, the clock loses power and will need to be reset when the power is reconnected. -
Page 19: Sleep Timer And Program Presetting
Time functions Sleep timer and program presetting TIME VOL- MENU VOL+ TIME MENU VOL- VOL+ Continued Sleep timer The TV set have 18 sections option for sleep timer function (each section has a time interval of 10 minutes) (See right chart): 1 Press the TIME menu... -
Page 20: Setup Function
Set up functions S c r e e n s a v e r a n d A V L f u n c t i o n s FUNCTION MENU VOL- VOL+ Automatic Volume Limit control reduces effect of large volume changes such as when the ads come on. -
Page 21: Switch On/Off Modes
Set up functions Switch on/off modes FUNCTION 2 Press the CH+/- buttons select "FADE" MENU VOL- VOL+ Continued Switch on/off modes Provides professional picture fades between channel change to reduce the effect of bright light flashes common with channel change 1 Press the FUNCTION menu button till the FUNCTION menu shown on the right... -
Page 22: Position Exchange Function
Position exchange function Exchange 1 Press the MENU button again (7 times) till the EXCHANGE VOL- MENU VOL+ menu display on the screen. PROGRAM NUMBER 0-9 buttons to set PROGRAM 1 TO 6. MENU VOL- VOL+ MENU VOL- VOL+ Exchange This feature enables TV programs that may be on a wrong TV channel number to be swapped/exchanged. -
Page 23: Other Functions
Others functions Calendar, child lock and display functions MENU VOL- VOL+ Child lock function LOCK (including the functional buttons on the TV set) all do not take effect and this status can be kept even if the TV set is off. on the remote control ,then indicating the chid lock function has been cancelled. -
Page 24: Connection To The External Audio And Video Equipments
Connecting the TV set to the other video and audio equipments Connecting to the other video and audio equipments You can connect a stereo to the AUDIO output terminals on the TV set to enjoy sounds of higher quality. VIDEO and AUDIO output terminals output the video and audio signals being monitored by the TV set. -
Page 25: Troubleshooting Guide
Troubleshooting guide To assist in location possible faults use help guide below BREAKDOWN PHENOMENON PICTURE Picture with snow Double or Triple Image Disturb Normal No Picture No colour Normal volume Scramble Normal or Weak Volume Colour Spot Normal volume Note: 1.If the fault can not be repaired using the above guide consult with your local authorized service center. -
Page 26: Specifications
34 " pure flat CRT 5W+5W & 5W Sound output power AC 160V-250V~, 50/60Hz Power supply <180W Power consumption Size mm width Remote control Supplied Owner's manual accessories Battery(AA) The design and specifications may be changed without notice. 34F9K depth height...
