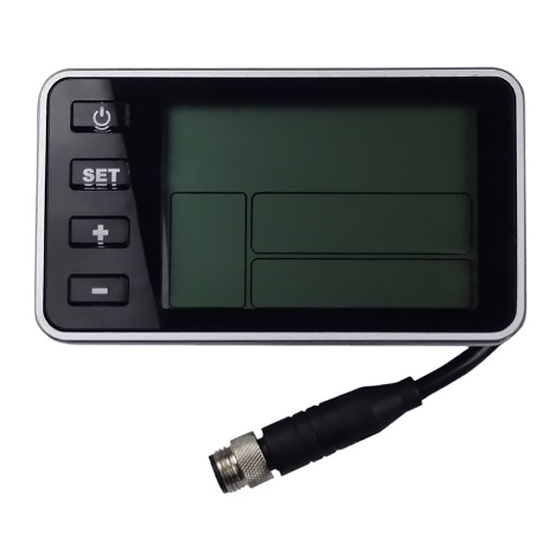

C500B-LCD Instructions
Nanjing Bigstone Electronic & Technology co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C500B-LCD and is the answer not in the manual?

Questions and answers

Related Manuals for BIGSTONE C500B-LCD

Summary of Contents for BIGSTONE C500B-LCD

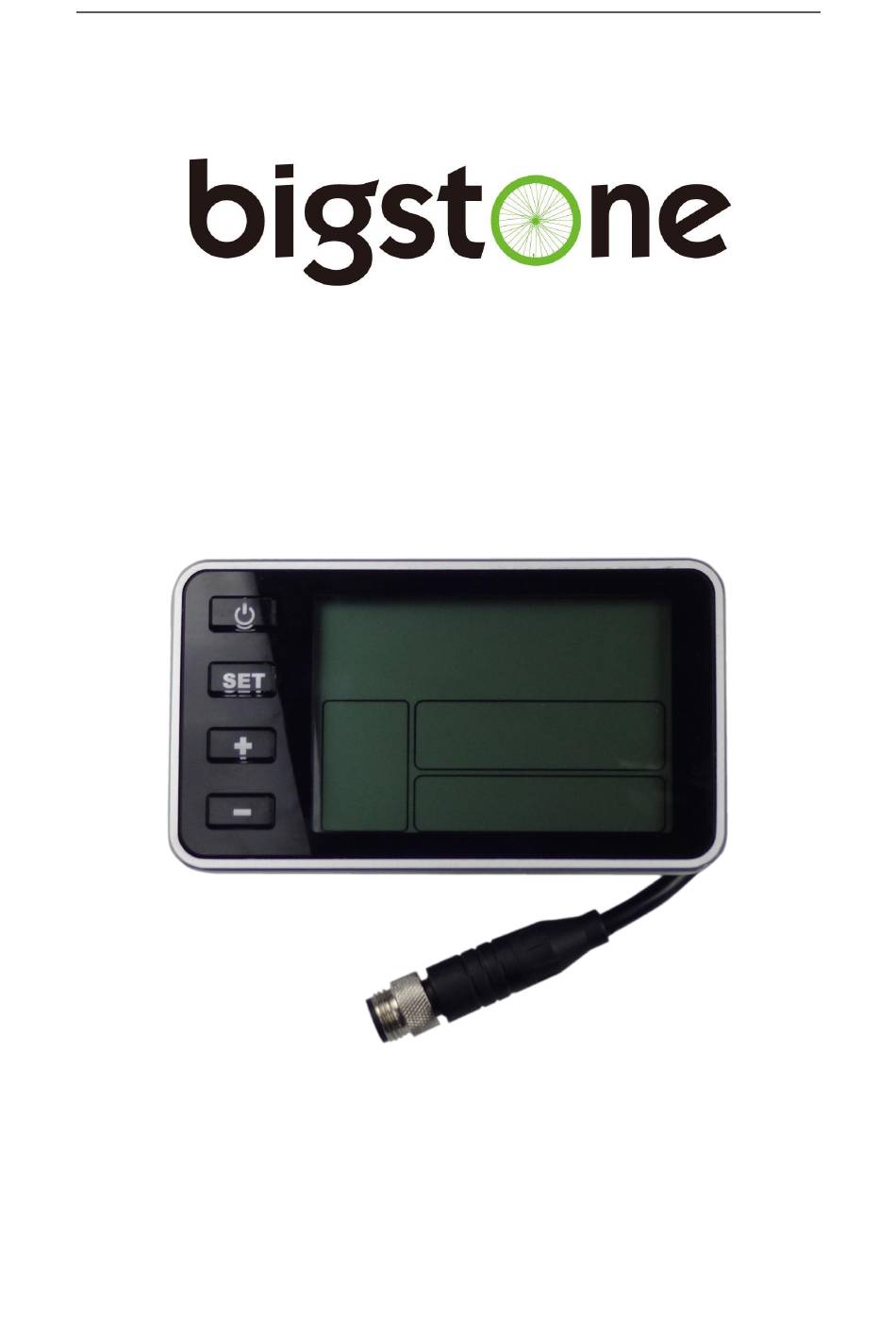

  • Page 1 C500B-LCD Instructions Nanjing Bigstone Electronic & Technology co.,Ltd...

  • Page 2: Table Of Contents

    16. Auto Sleep after 5 Minutes....................24 Common Problems & Solutions....................... 24 Quality & Warranty...........................24 Quality & Warranty：.......................24 Other Items：..........................25 Error Code Table..........................25 page 1 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 3: About The User Manual

    Under the temperature of -20 to 60℃, the shell material can ensure normal usage and good mechanical performance of the products. Dimension figure (unit: mm) page 2 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 4: Button Definition

    C500B has four buttons including ON/OFF 、 SET 、 UP and DOWN.“ON/OFF” names to “ ”, “SET” names to “SET”; “UP” names to “ ＋” and “DOWN” names to “－”. page 3 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 5: Function Summary

    Total distance (ODO) 11.1 Trip 11.2 Remaining distance (without this function by default) 11.3 12. Trip time indicator 13. Battery indicator Battery residual capacity indicator 13.1 page 4 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 6 Battery charging and discharging times (without this function 13.4 by default) 14. Mobile phone charging indicator 15. Cable definition 16. Auto sleep after 5 minutes page 5 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 7: Full View Area

    Full View Area NORMAL VIEW AREA page 6 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 8: Normal Operation

    2A, six segments is >=12A. 4. Speed Display The speed is as below, and user can select KM/H or MPH in SET4. page 7 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 9: Backlight Indicator

    Hold the DOWN for 2 seconds to get into 6km PAS work, and with your hand off, the 6km PAS work is released. The display is as below. page 8 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 10: Pas Selection

    1 HZ and show the error code automatically. Different error code is corresponding with different error information. See the last page Error code table for details. page 9 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 11: User Setting Operation

    10.1.1、SET1: Reset Trip Click the DOWN and reset the trip, then the TRIP icon will flash at 1 HZ, meanwhile the mileage will be cleared. page 10 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 12 10.1.3、SET3: Wheel Diameter Setting Select the accurate wheel diameter value to ensure the accuracy of display about speed and mileage. page 11 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 13 10.1.5、SET5: 36V/48V Choice Click UP or DOWN to switch the 36V & 48V selection. Cruise 10.1.6、SET6: Setting page 12 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 14 SET for 6 second to exit. 10.2.1、 P1：Motor Characteristic Parameter Setting P1 is motor characteristic parameter setting, P1 = motor gear page 13 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 15 P3 parameter setting is 0, power assist control mode is gear 9 of "speed control" mode. P3 parameter needs to be determined according to the distributed function of the controller, its setting range is page 14 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 16 P5 is handlebar function setting, the setting range is 0-4, hold UP or DOWN for selection. P5 parameter definition table： P5 value P4=0 P4=1 page 15 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 17 P6: Handlebar Speed Setting Select the accurate handle speed limit value to ensure current speed is no more than top speed at current handle level. page 16 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 18 Reverse 5 Lower Forward Lower Signal 5 Signal Standard Standard Higher Higher Reverse 6 Lower Forward Lower Signal 6 Signal Standard Standard page 17 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 19 C2 is Gear mode Setting, If the maximum gear is 3, C2 should be set as 3. If the maximum gear is 6, C2 should be set as 6. page 18 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 20 The operating temperature of the motor shows there should be a temperature sensor installed in the Inner motor to output the temperature for signal detection simultaneously. page 19 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
  • Page 21 C7 is the parameters of power-assist tuning setting, with the default value of 1. The setting range 0-2, and press UP or DOWN for short to make selection. page 20 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 22: Distance Indicator

    Trip is can be reset by hand in the SET 1 interface. （ when the riding mileage >=500km, it will be reset automatically. The value will be page 21 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 23: Trip Time Indicator

    When the capacity is full, the five segments are all light. In low battery, the battery frame will flash, it indicates that the battery is severely low and needs to be recharged immediately. page 22 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 24: Mobile Phone Charging Indicator

    14. MOBILE PHONE CHARGING INDICATOR Press UP and SET for 2s and the USB icon will light. 15. Cable Definition 1 Red： Battery + page 23 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 25: Auto Sleep After 5 Minutes

    Any quality problems in normal case and in guarantee period, our company will responsible for the warranty. 2、 The warranty time is 18 months from date of purchasing. page 24 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...

  • Page 26: Other Items

    Throttle error(Start detection) motor no phase position Hall error Brake error(Start detection) Under voltage Motor stalling communication controller receiving error communication display receiving error page 25 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
