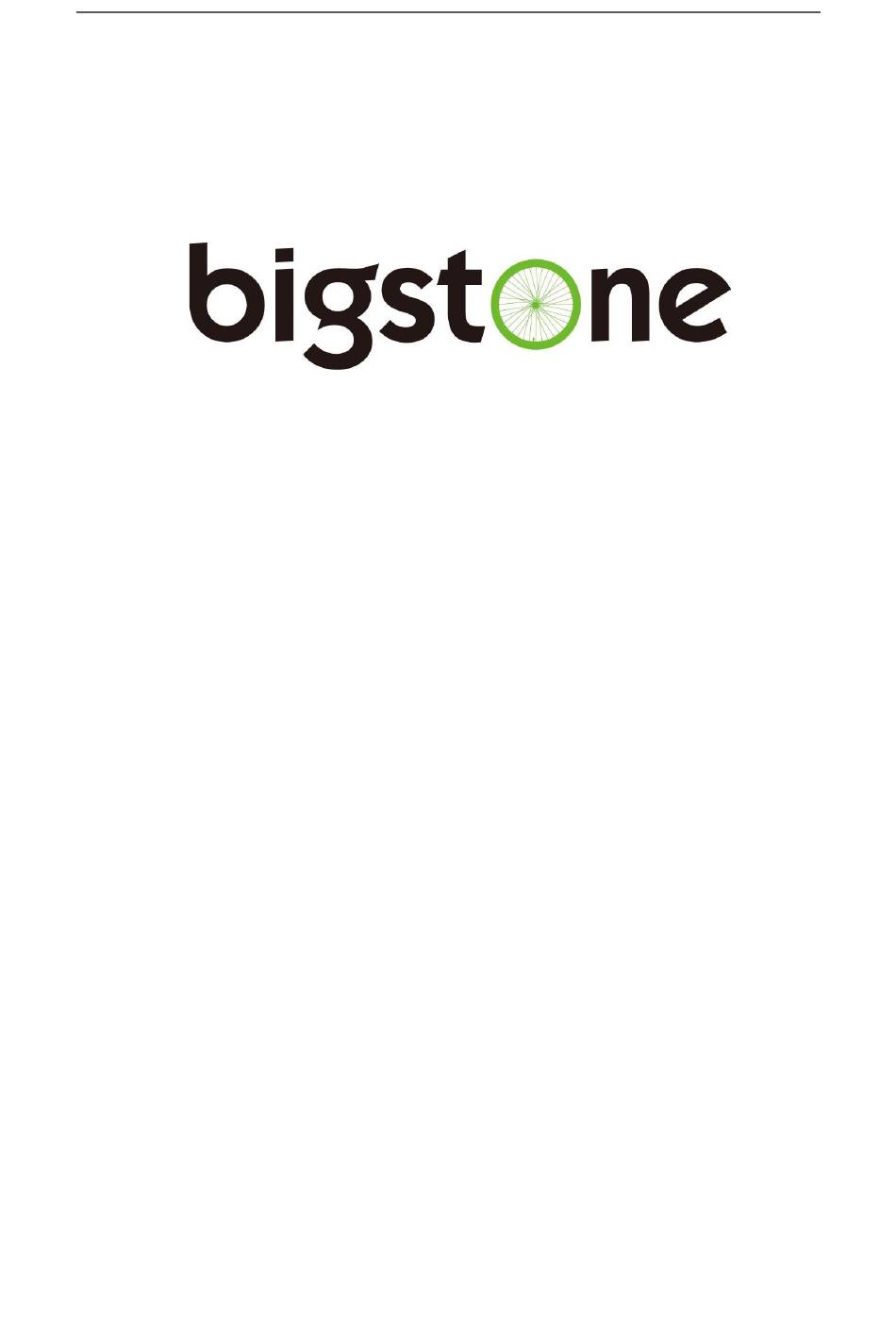

- Page 1 C800-TFT Instructions Nanjing Bigstone Electronic & Technology co.,Ltd...
-
Page 2: Table Of Contents
SLEEP AFTER MINUTES…………………………………………………...……… .15 COMMON PROBLEMS & SOLUTIONS………………………………………………..….….. 16 QUALITY & WARRANTY…………………………………………………………..……..…..16 QUALITY & WARRANTY…………………………………………………………………………16 OTHER ITEMS ………………………………………………………………………………… … 16 ERROR CODE TABLE…………..……………………………………..………………..…..…..17 page 1 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 3: About The User Manual
Under the temperature of -20 to 60℃, the shell material can ensure normal usage and good mechanical performance of the products. Dimension figure (unit: mm) page 2 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 4: Button Definition
C800 has four buttons including ON/OFF 、 SET 、 UP and DOWN. “ON/OFF” names to “ ”, “SET” names to “SET”;“UP” names to “ ＋” and “DOWN” names to “－”. page 3 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 5: Function Summary
3. KM/H & MPH 4. Light indicator 5. 6KM/H work 6. PAS level selection 7. Error code indicator 8. Total distance (ODO) and Trip 9. Battery capacity page 4 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 6: Full View Area
FULL VIEW AREA NORMAL VIEW AREA With the display on ,the default display are riding speed、trip distance、 ODO、PAS level、battery indicator as show in fig below. page 5 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 7: Normal Operation
ON/OFF for 3 seconds to turn off the power. With the display off, there is no battery consumption battery power. The leakage current is no more than 2µA. page 6 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 8: Riding Mode Selection
6. 6KM/H WORK Hold the DOWN for 2 seconds to get in 6km PAS work, and with your hand off, the 6km PAS work is released. page 7 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 9: Pas Level Selection
It indicates that the battery is severely low and needs to be recharged immediately. ※See the picture for above messages in Full View Area . page 8 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 10: Setting Opeeration
10.1：Trip Clear N means NO, Y means YES. Select “Y” and when user return main interface, user will find the Trip has been cleared. page 9 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... - Page 11 ※ The max speed value range from 20 km/h to 99.9 km/h. When set max speed 99.9 km/h, there is no limit for riding speed. page 10 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
- Page 12 Select the suitable value to ensure the accuracy of display about speed and mileage. The set value can be 16, 20, 24, 26, 700C, 28 (unit: inch) page 11 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
- Page 13 The battery voltage can be set to 24V, 36V or 48V. This parameter need to be consistent with the actual parameter of user’s e-bike. page 12 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
- Page 14 N means throttle with one level. (6) Assist levels: it can be set to 3,5,6,9. If user select 3, the range of assist levels is 1-3. page 13 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
- Page 15 (7) Password: user can set the power-on password, default no password. The boot interface: (8) Exit. 10.8: Information Click SET enter information interface. HW ver: Hardware version. SW ver: Software version. page 14 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
-
Page 16: Minutes
Click SET, the set information will be saved and exit the setting interface. 11: AUTO SLEEP AFTER 5 MINUTES When the riding speed is 0 km/h for 5 minutes, the system will go to sleep automatically. page 15 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 17: Common Problems & Solutions
2. The damage caused by wrong installation or operation. 3. Shell is broken when display is out of the factory. 4. Wire is broken. page 16 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 18: Error Code Table
Throttle error(Start detection) motor no phase position Hall error Brake error(Start detection) Under voltage Motor stalling communication controller receiving error communication display receiving error page 17 Address：NO.35 PuZhou Road, PuKou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
