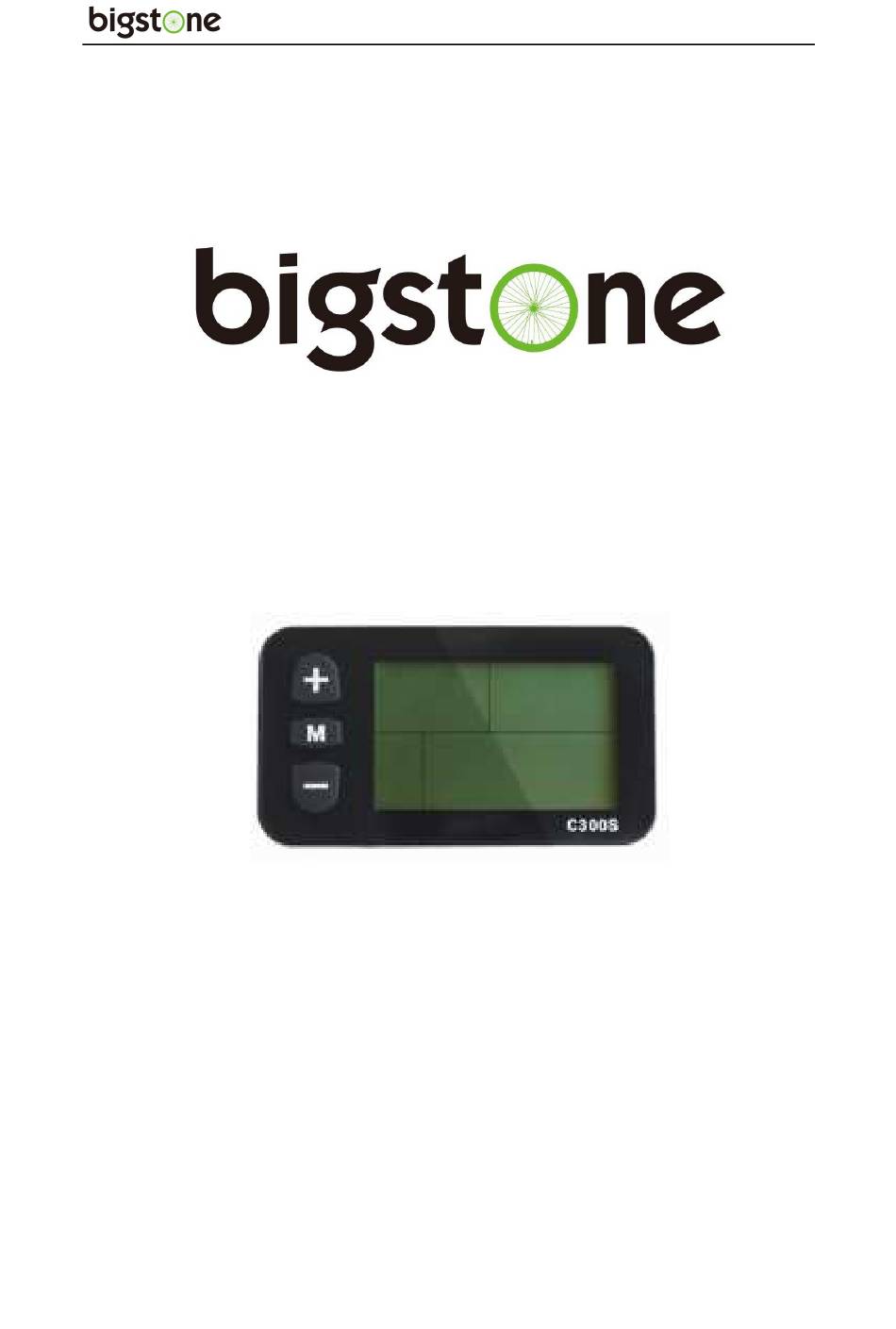

- Page 1 C300S-LCD Instructions Nanjing Bigstone Electronic & Technology co.,Ltd Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
-
Page 2: Table Of Contents
PREPARATION BEFORE OPEN THE POWER..........错误！未定义书签。 INSTALLATION INSTRUCTIONS....................12 COMMON PROBLEMS & SOLUTIONS..................12 QUALITY & WARRANTY.........................13 QUALITY & WARRANTY： ......................13 OTHER ITEMS：..........................13 VERSION CHANGE ...........................13 ERROR CODE TABLE ........................145 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 1 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 3: About The User Manual
Dear users, To ensure better performance of your e-bike, please read through the C300S-LCD product introduction carefully before using it. We will inform you all the details concisely（including hardware installation, setting and normal use of the display） when using our display. Meanwhile, the introduction will also help you solve possible confusion and malfunction. -
Page 4: Button Definition
BUTTON DEFINITION C300S has three buttons, including MODE、UP and DOWN. “MODE” names to “M”, “UP” names to “ ＋” and “DOWN” names to “－”. Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 3 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 5: Function Summary
7. Assist level selection 8. Error code indicator 9. SET operation 10. Distance indicator 11. Battery indicator 12. Cable definition 13. Auto sleep after 5 minutes Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 4 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 6: Full View Area
FULL VIEW AREA NORMAL VIEW AREA The normal viewing area of the C300S is shown below. Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 5 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 7: Normal Operation
2A, six segments is >=12A. SPEED DISPLAY 、 It displays the current riding speed of e-bike. The speed display is as below. Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 6 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 8: 5、Backlight Indicator
The e-bike is traveling at 6Km/h. Display as shown below. 7 ASSIST LEVEL SELECTION 、 Click UP or DOWN to change the stages and output power ratio, the Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 7 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 9: 9、Set Opearation
Hold DOWN & UP 2 seconds to enter into the mode of setting. Click MODE to choose setting parameters and click DOWN & UP to exit setup. 9.1 Reset trip distance, trip time and max speed Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 8 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... - Page 10 Click UP or DOWN to select the limited speed. ※ Wheel diameter setting Select the accurate wheel diameter value to ensure the accuracy of display about speed and mileage. Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 9 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
-
Page 11: 10、Distance Indicator
With the display on, click the MODE to switch the display information. In turn shows ODO and trip time, trip distance, max speed, auto cycle display. Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 10 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 12: 11、Battery Indicator
12 、 CABLE DEFINITION 1 Red： Battery + 2 Blue： Weak lock 3 Black： Battery- 4 Green: UART-RECEIVE (RXD) 5 White: UART- SEND (TXD) Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 11 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 13: 13、Auto Sleep After 5 Minutes
Step3: Adjust the direction and tighten the low screw after installation. COMMON PROBLEM & SOLUTIONS Q：Why the display is not able to start up？ A：Checking the connector that between display and controller. Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 12 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 14: Quality & Warranty
6. Beyond Warranty period. VERSION CHANGE The instrument instructions are the operating instructions of common software version of Nanjing Bigstone Electronic & Technology Co., Ltd. (V3.1 version). The instrument software version that using on Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 13 Tel：025-89618445... -
Page 15: Error Code Table
Throttle error(Start detection) motor no phase position Hall error Brake error(Start detection) Under voltage Motor stalling communication controller receiving error communication display receiving error Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China page 14 Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
Need help?
Do you have a question about the C300S-LCD and is the answer not in the manual?
Questions and answers
COMMENT CHANGER LE DIAMËTRE DE LA ROUE

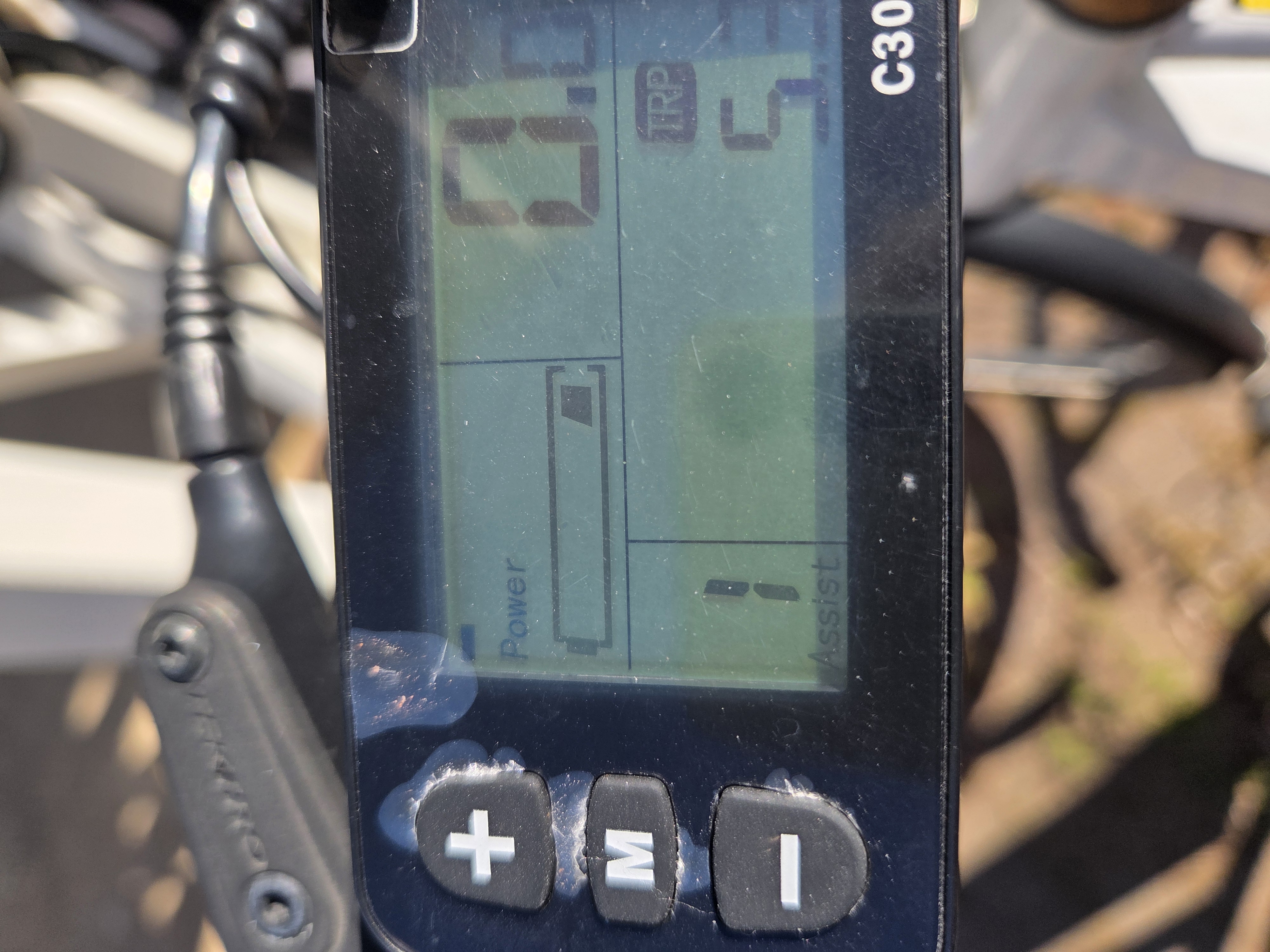

Jag tryckte + och ' för att nollställa km. Nu visas inte batteripower längre, den visar en stapel och blinkar, batteriet är fullt laddat. Hur återställer jag detta?
