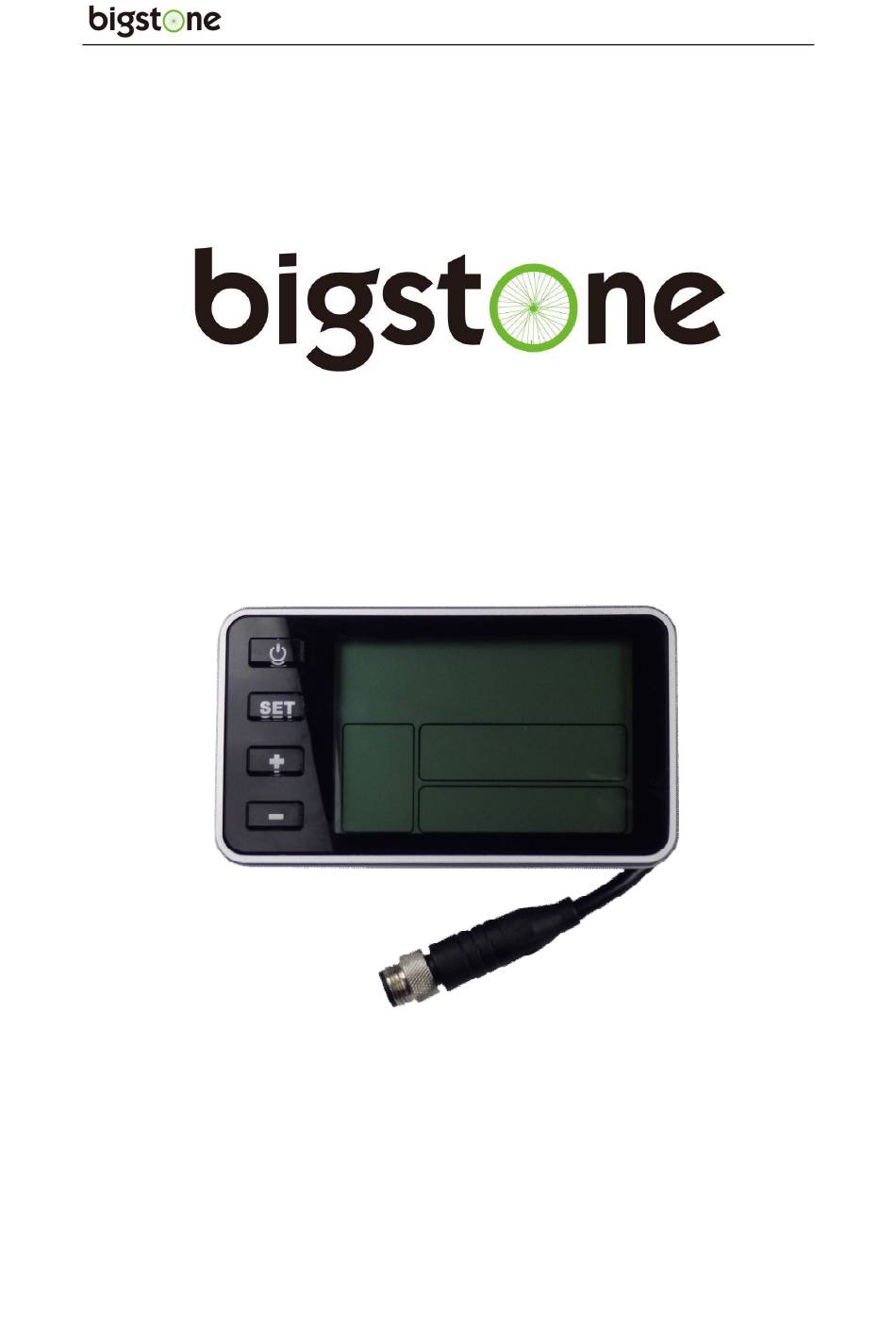

- Page 1 C500B-LCD Instructions Nanjing Bigstone Electronic & Technology co.,Ltd...
-
Page 2: Table Of Contents
16. AUTO SLEEP AFTER 5 MINUTES…………………………………………………...……… .15 COMMON PROBLEMS & SOLUTIONS………………………………………………..….….. 15 QUALITY & WARRANTY…………………………………………………………..……..…..15 QUALITY & WARRANTY…………………………………………………………………………15 OTHER ITEMS …………………………………………………………………………………… 15 ERROR CODE TABLE…………..……………………………………..………………..…..…..16 page 1 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 3: About The User Manual
℃ the shell of nylon material. Under the temperature of -20 to 60 , material can ensure normal usage and good mechanical performance of the products. page 2 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 4: Button Definition
C500B has four buttons including ON/OFF、SET、UP and DOWN. “ON/OFF” names to “ ”, “SET” names to “SET”;“UP” names to “ ＋” and “DOWN” names to “－”. page 3 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 5: Function Summary
11. Distance indicator Total distance (ODO) 11.1 Trip distance 11.2 Remaining distance (without this function by default) 11.3 12. Trip time indicator 13. Battery indicator page 4 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... - Page 6 Battery charging and discharging times (without this function 13.4 by default) 14. Mobile phone charging indicator 15. Cable definition 16. Auto sleep after 5 minutes page 5 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
-
Page 7: Full View Area
With the display on ,the default display are riding speed、ODO、PAS level、battery indicator as show in fig below. Press SET to switch the display information. In turn shows: ODO, trip distance and trip time. page 6 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 8: Normal Operation
2A, six segments is >=12A. 3. RIDING MODE SELECTION There are three modes for riding with arrow selection, including POWER，NORMAL and ECO. The default option is NORMAL. page 7 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 9: Speed Display
※If the e-bike has headlight, the controller will turn on/off the headlight at the same time of the backlight on/off (without this function by default) page 8 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 10: Km/H Work
If there is something wrong with the electronic control system, the display will flash at 1 HZ and show the error code automatically. See the page 9 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 11: Set Operation
1 SET0: RIDING MODE SELECTION There are three modes for selected: POWER、NORMAL、ECO. 10.2: SET1: RESET TRIP DISTANCE TO 0 Click the DOWN to reset the trip distance. page 10 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 12: Distance Indicator
11. DISTANCE INDICATOR With the display on, press SET to switch the display information, in turn shows: ODO, trip distance. page 11 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... - Page 13 >=500km, it will be resetted automatically. The value will be accumulated without resetting.） (the default is no) 11.3 Remaining distance This function need to be customized. page 12 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
-
Page 14: Trip Time Indicator
In low battery, the outside edge of the battery frame will flash. It indicates that the battery is severely low and needs to be recharged immediately. Low battery flash page 13 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 15: Mobile Phone Charging Indicator
Press UP and SET for 2s and the USB icon will light 15. CABLE DEFINITION 1 Red： Battery + 2 Blue： Weak lock 3 Black： Battery- 4 Green: UART-RECEIVE (RXD) 5 White: UART- SEND (TXD) page 14 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 16: Auto Sleep After 5 Minutes
2、 The warranty time is 18 months from date of purchasing. ： OTHER ITEMS The following items are not belong to warranty scope page 15 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com... -
Page 17: Error Code Table
Throttle error(Start detection) motor no phase position Hall error Brake error(Start detection) Under voltage Motor stalling communication controller receiving error communication display receiving error page 16 Address：NO.38 Ningliu Road, Pukou District, Nanjing City, China Tel：025-89618445 Fax：025 – 58849541 Email: bigstone.ebike@gmail.com...
