Summary of Contents for Thermo Scientific 88870001

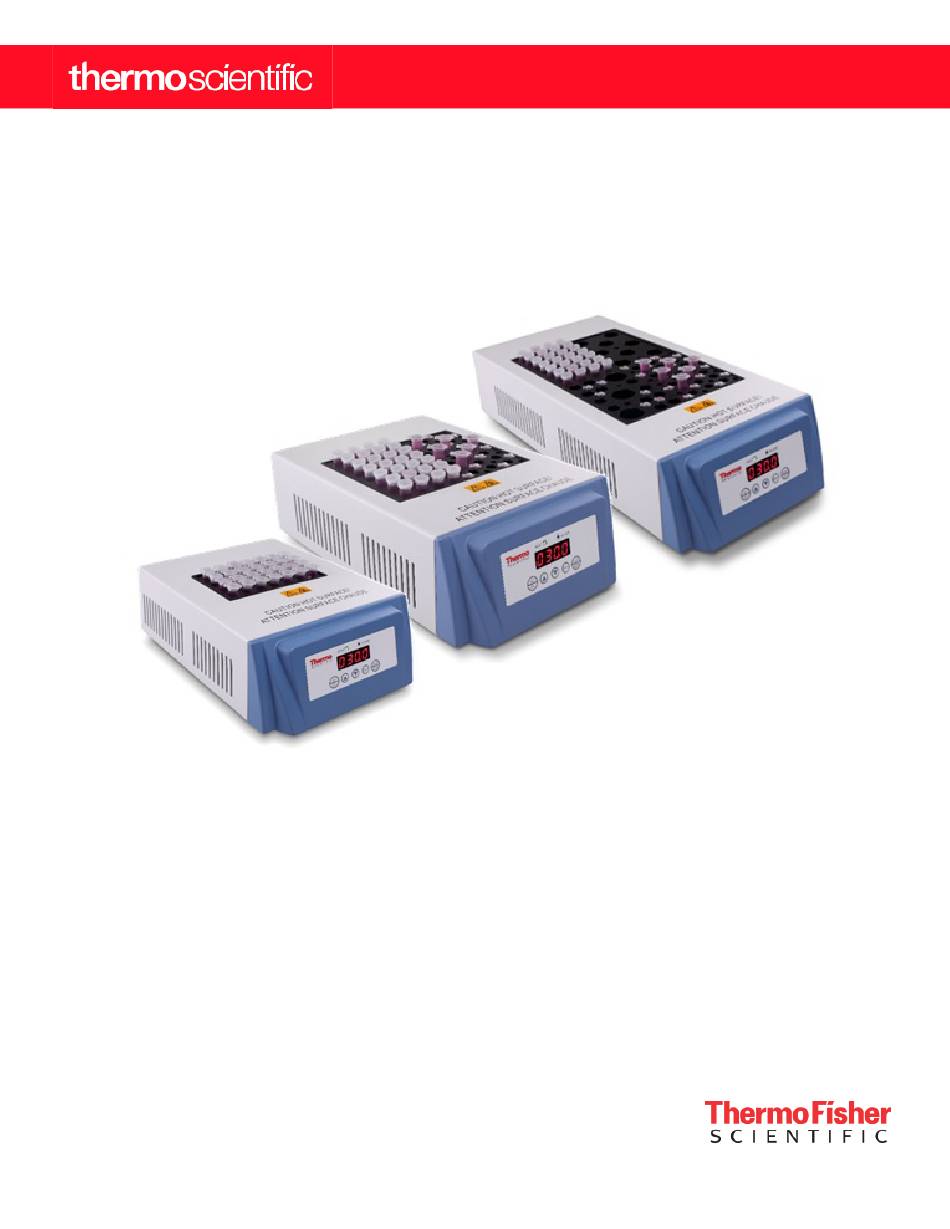

  • Page 1 Thermo Scientific Digital Drybath Operating Manual 0000848 • Revision A • October 2021...
  • Page 2 IMPORTANT! Before using this product, read this entire operation manual carefully. Users should follow all of the operational guidelines contained in this manual and take all necessary safety precautions while using this product. Failure to follow these guidelines could result in potentially irreparable bodily harm and/or property damage.
  • Page 3: Table Of Contents

    Contents Models................. 1 Safety Information ............2 Introduction ..............4 Features............... 5 Normal Working Conditions........5 Transportation and Storage Conditions ....5 Basic Parameters ............. 5 Regulatory Compliance ..........6 Preparation Work............8 Structure Diagram ............ 8 Display Panel Diagram ..........8 Instructions for Buttons ..........
  • Page 4: Models

    Models This manual covers the models shown below. Table 1. Models NA Model EU Model Voltage Description 88870001 100-120 Vac TS Drybath Stdrd 1 blck 100-120 V 88870002 100-120 Vac TS Drybath Stdrd 2 blck 100-120 V 88870003 100-120 Vac...
  • Page 5: Safety Information

    Safety Information Alert Signals • The power cord The instrument should use the power line cord CAUTION: Important information is contained in attached to it. If the power line is destroyed, it any item and should be carefully read. Failure to must be replaced but not be repaired.
  • Page 6 Excessive temperature will impair performance or result in failure of the instrument. This instrument should not be used in locations subjected to direct sun light. The instrument should be kept away from hot gas, oven and all other heat sources. If the instrument is to be stored for a long time, the power plug should be withdrawn and the instrument covered with soft cloth or plastic...
  • Page 7: Introduction

    Introduction The product is a dry bath with advanced microcomputer control, which can be widely applied to sample reservation, enzyme reservation and reaction, DNA amplification, electrophoresis degeneration and serum coagulation, etc. The characteristics of the product are as follows: • The digital display for control of the temperature.
  • Page 8: Features

    Pollution Degree Overvoltage category II Indoor use Mains supply voltage ±10% fluctuations Basic Parameters Table 2. 100-120 V NA Catalog Number 88870001 88870002 8887000303 Digital 1 block Digital 2 block Digital 4 block Model Name 100-120 V 100-120 V 100-120 V Temperature Range Ambient Temperature +5°C ~ 130°C (Ambient Temperature 25°C)
  • Page 9: Regulatory Compliance

    Table 3. 200-240 V EU Catalog 88870004 88870005 88870006 Number Digital 1 block Digital 2 block Digital 4 block Model Name 200-240 V 200-240 V 200-240 V Temperature Range Ambient Temperature +5°C ~ 130°C (Ambient Temperature 25°C) Temperature ±1.0°C Uniformity Temperature Accuracy ±0.5°C@37°C Temperature...
  • Page 10 Electromagnetic Compatibility • Have a certified technician remove the Refractory Ceramic insulation from the unit then dispose properly. FCC Statement (USA) This device complies with Part 15 Subpart B of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference...
  • Page 11: Preparation Work

    Preparation Work Instructions for Buttons This chapter introduces the structure of the instrument, user interface and functions of all buttons and preparation before startup. Read the content in the chapter carefully before using the instrument for the first time. Setting or adjusting button: Press the button to display present setting temperature and press the button again to display present time.
  • Page 12: Operation Guidance

    Operation Guidance Setting Temperature and This chapter introduces the displaying window and the operation of buttons of the dry bath with constant Heating Time temperature. Note: The illumination pattern of the ‘Heat Light’ indicates the Set Temperature and Hold-Time Setpoint: Operation status.
  • Page 13: Start And Stop Instrument

    Instruction: There is limitation for temperature and time 7. The Heat-indicator may start 'blinking' as the setting. The setting temperature range is: 15 ~ 135°C; the temperature is stabilized to the calibrated temperature. time range is: 0 ~ 99 h 59 min and continuous mode "- -:- -". 8.
  • Page 14: Maintenance

    Maintenance The holes of the blocks should be regularly cleaned with the damp cloth to ensure the test tube be well contacted with the wall of the holes so as to have good heat conduction. If the surface of the instrument is polluted, it can be cleaned with a slightly damp soft cloth.
  • Page 15: Failure Analysis And Troubleshooting

    Failure Analysis and Troubleshooting This chaper introduces possible failures of this instrument, explanation and troubleshooting. CAUTION: The user is not allowed to open the housing of the instrument for inspection during the warranty period. If any failures that require opening the housing for inspection occur, the supplier or manufacturer should be contacted timely.
  • Page 16: Modular Block Accessories

    Modular Block Accessories Table 5. Modular Block Accessories Block Dimensions Catalog No. Heating Blocks No. of Holes W x D x H (mm/in) 124 x 76 x 39 / 88870101 For 6 mm test tubes 4.9 x 3.0 x 1.5 124 x 76 x 39 / 88870102 For 10 mm test tubes...
  • Page 17 Table 5. Modular Block Accessories Block Dimensions Catalog No. Heating Blocks No. of Holes W x D x H (mm/in) For mixed size test tubes 30 holes for 0.5 ml 124 x 76 x 39 / 88870115 30+20 test tubes 20 holes for 0.2 ml test tubes 4.9 x 3.0 x 1.5 124 x 76 x 113 / 88870116...
  • Page 18: Warranty

    Warranty When used in laboratory conditions and according to these operation instructions and maintenance, this product is warranted for 24 months against defective materials or workmanship. The 24 month warranty period begins from the delivery date of this product. For product quality or performance issues, contact Thermo Fisher Scientific Customer Service.
  • Page 19: Frequently Asked Questions

    Frequently Asked Questions Scenario 1 Does unit turn off once the program time is complete: Example- If unit is set for one program to run at 45°C for 2 hrs. Q-Would the unit turn off upon completion of this 2 hrs? A-The instrument doesn't turn off by itself, it just stops running.
  • Page 20 WEEE Compliance WEEE Compliance. This product is required to comply with the European Union’s Waste Electrical & Great Britain Electronic Equipment (WEEE) Directive 2012/19/EU. It is marked with the following symbol. Thermo Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them.
  • Page 21 North America’s Technical Support Team Phone: 1-866-984-3766, Option#2 Service Email: Servicesupport.led.asheville@thermofisher.com Presales Email: LED.Presales@thermofisher.com Webpage: www.unitylabservices.com Europe Middle East Africa Technical Support Team German national toll free: 0800 1 112 110, Fax: 0800 1 112 114 German international: +49 6103 408 0, Fax: +49 6103 408 12 13 Email: unity.de@thermofisher.com and let.support@thermofisher.com Singapore Technical Support Team Service Hotmail is Service.LPG.ROA1@thermofisher.com...
