Summary of Contents for Thermo Scientific 88870007

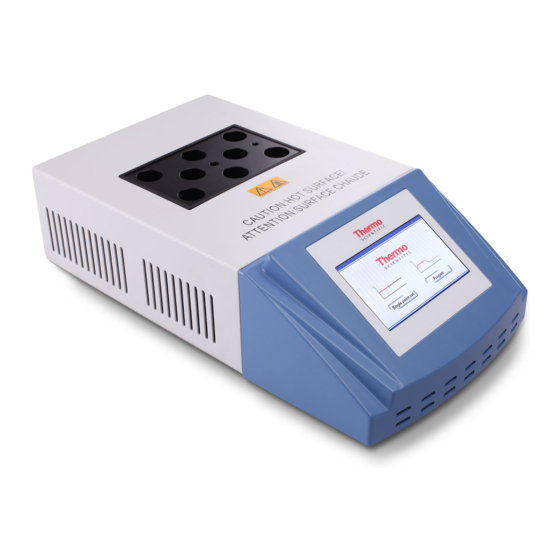

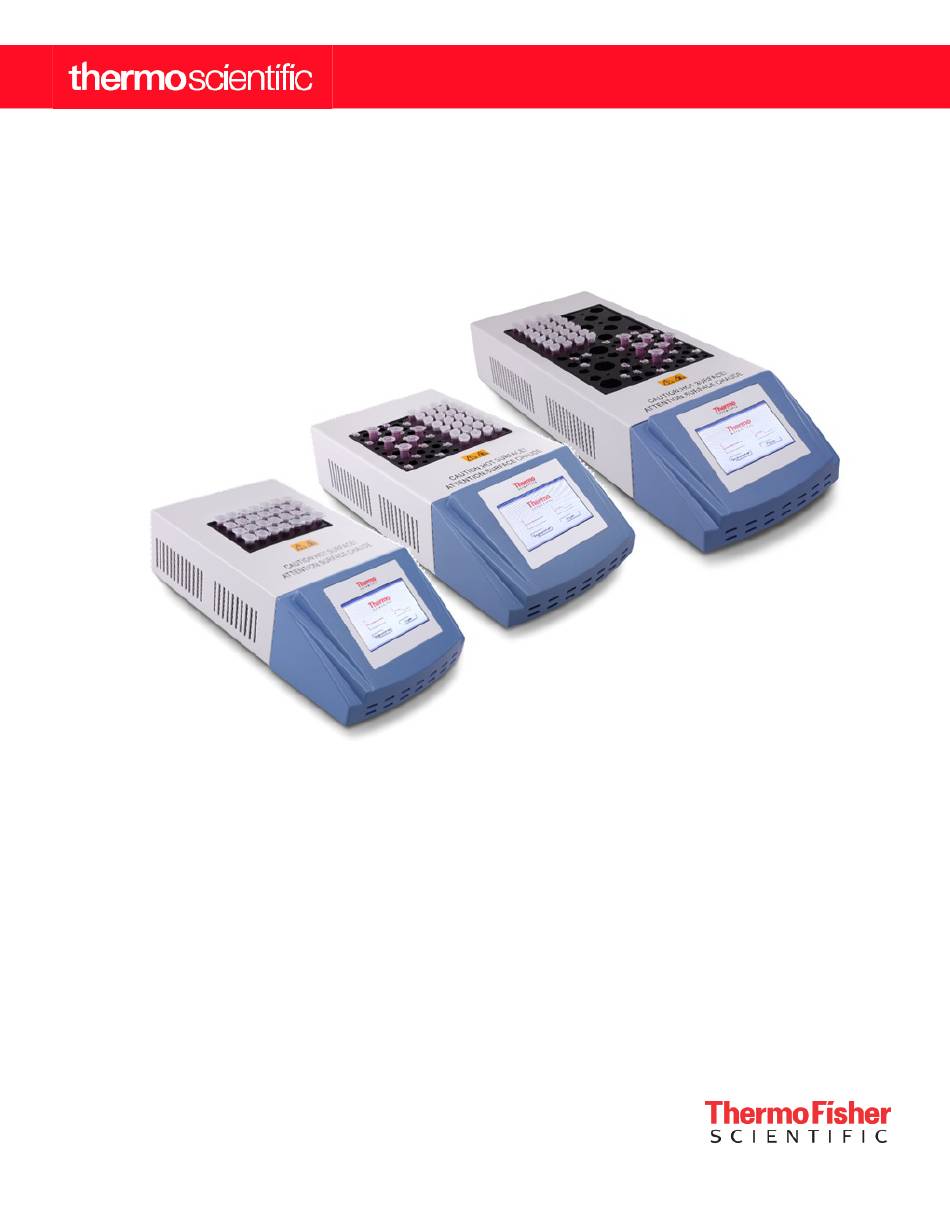

- Page 1 Thermo Scientific Touch Screen Drybath Operating Manual 0000849 • Revision A • October 2021...
- Page 2 IMPORTANT! Before using this product, read this entire operation manual carefully. Users should follow all of the operational guidelines contained in this manual and take all necessary safety precautions while using this product. Failure to follow these guidelines could result in potentially irreparable bodily harm and/or property damage.
-
Page 3: Table Of Contents
Contents Preface ................ 1 Models................. 2 Safety Information ............3 Introduction ..............5 Features............... 6 Normal Working Conditions........6 Transportation and Storage Conditions ....6 Basic Parameters ............. 6 Regulatory Compliance ..........7 Preparation Work............9 Structure Interface............ 9 Operation Guidance............. 10 Examination Before Start-Up ........ -
Page 4: Preface
Extended Warranty for your Thermo Scientific products. Whatever Thermo Scientific products you need or use, we will be happy to discuss your applications. If you are experiencing technical problems, working together, we will help you locate the problem and, chances are, correct it yourself over the telephone without a service call. -
Page 5: Models
Models This manual covers the models shown below. Table 1. Models NA Model EU Model Voltage Description 88870007 100-120 Vac Drybath Stdrd 1 blck 100-120 V 88870008 100-120 Vac Drybath Stdrd 2 blck 100-120 V 88870009 100-120 Vac Drybath Stdrd 4 blck 100-120 V... -
Page 6: Safety Information
Note: Notes alert you to pertinent facts and conditions. electrician to install a correct power socket, so as to make the grounded plug to work for WARNING: If the Thermo Scientific Touch safety. Screen Drybath is used in a manner not specified by the manufacturer, the protection provided by •... - Page 7 • Placement of the instrument Protective Conductor Terminal This instrument should be fixed in a low RH and low dust place away from water source (e.g. sink or water pipeline) and the room should be well ventilated, and free of corrosive CAUTION: In any of the following cases, gas or interference of strong magnetic field.
-
Page 8: Introduction
Introduction CAUTION: After unpacking, immediately check the goods against the packing list. In case of damaged or missed goods, please immediately contact the distributor in which the product was purchased from. After unpacking, the packing box and packing materials should be well kept for future repair. -
Page 9: Features
Features This chapter introduces the usage, transportation, storage CAUTION: Before using the instrument, make conditions of the instrument, as well as its basic parameters, sure the working conditions meet the above performance and functions. requirements. Normal Working Transportation and Conditions Storage Conditions Ambient temperature: -20°C~+55°C Ambient temperature... -
Page 10: Regulatory Compliance
Table 3. 220 V Touch Screen 1 block Touch Screen 2 block Touch Screen 4 block Parameters / Type 200-240 V 200-240 V 200-240 V Temperature Range Ambient Temperature +5°C~130°C(ambient temperature 25°C) Temperature Uniformity ±1.0°C Temperature Accuracy ±0.5°C@37°C Temperature Fluctuation ±0.5°C ≤... - Page 11 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 12: Preparation Work
Preparation Work This chapter introduces the structure of the instrument, user interface and functions of all buttons and preparation before startup. Read the content in the chapter carefully before startup when using the instrument for the first time. Structure Interface Housing LCD Touch Screen Front cover... -
Page 13: Operation Guidance
Operation Guidance The chapter introduces the display window and the operation of buttons of the dry bath with constant temperature. Examination Before Start-Up Confirm the following before inserting the plug into the power socket. 1. Ensure the power source is in accordance with the voltage requirement of the instrument (refer to Figure 3. - Page 14 Single Running Interface • Input the correct temperature into the box that pops out. • To ensure the accuracy of temperature, the instrument should be calibrated after temperature stabilizes for 30 minutes. • Calibrate the instrument with the qualified Grade II standard filled thermometer.
- Page 15 Password Inputting Interface • Input the password into the box. CAUTION: If the password has been forgotten, user can use 000000 to ROOT and then the file will be reset to the initial state (the name of the file would not be changed). •...
- Page 16 Instruction: During the operation of the instrument, the temperature and the time should not be changed. If needed, stop the program and enter into the setting interface to change them. Figure 9. Files Saving Interface Program Running Interface • Press “CAL.” to call for the temperature adjustment interface.
-
Page 17: Maintenance
Maintenance The holes of the blocks should be regularly cleaned with the damp cloth to ensure the test tube be well contacted with the wall of the holes so as to have good heat conduction. If the surface of the instrument is polluted, it can be cleaned with a slightly damp soft cloth. -
Page 18: Failure Analysis And Troubleshooting
Failure Analysis and Troubleshooting This chapter details possible failures of this instrument and possible causes with troubleshooting. Table 4. Failure Analysis and Troubleshooting Error Cause Solution Power supply fails to be Check power supply and connect it connected Display window is not turned on after Fuse burned Replace fuse switching on power supply... -
Page 19: Modular Block Accessories
Modular Block Accessories Table 5. Modular Block Accessories Block Dimensions Catalog No. Heating Blocks No. of Holes W x D x H (mm/in) 124 x 76 x 39 / 88870101 For 6 mm test tubes 4.9 x 3.0 x 1.5 124 x 76 x 39 / 88870102 For 10 mm test tubes... - Page 20 Table 5. Modular Block Accessories Block Dimensions Catalog No. Heating Blocks No. of Holes W x D x H (mm/in) For mixed size test tubes 3 holes for 25 mm test tubes 124 x 76 x 39 / 88870114 3 +12 + 6 4.9 x 3.0 x 1.5 12 holes for 13 mm test tubes 6 holes for 6 mm test tubes...
-
Page 21: Warranty
Warranty Warranty Scope The Warranty Period starts two weeks from the date your equipment is shipped from our facility. This allows for shipping time so the warranty will go into effect at approximately the The above mentioned warranty does not apply to damages same time your equipment is delivered. -
Page 22: Faq Section
FAQ Section :Scenario 1: Does unit turn off once the program time is complete: Example- If unit is set for one program to run at 45degC for 2 hrs. Q-Would the unit turn off upon completion of this 2 hrs? A-The instrument doesn't turn off by itself, it just stops running. - Page 23 WEEE Compliance WEEE Compliance. This product is required to comply with the European Union’s Waste Electrical & Great Britain Electronic Equipment (WEEE) Directive 2012/19/EU. It is marked with the following symbol. Thermo Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them.
- Page 24 North America’s Technical Support Team Phone: 1-866-984-3766, Option#2 Service Email: Servicesupport.led.asheville@thermofisher.com Presales Email: LED.Presales@thermofisher.com Webpage: www.unitylabservices.com Europe Middle East Africa Technical Support Team German national toll free: 0800 1 112 110, Fax: 0800 1 112 114 German international: +49 6103 408 0, Fax: +49 6103 408 12 13 Email: unity.de@thermofisher.com and let.support@thermofisher.com Singapore Technical Support Team Service Hotmail is Service.LPG.ROA1@thermofisher.com...
