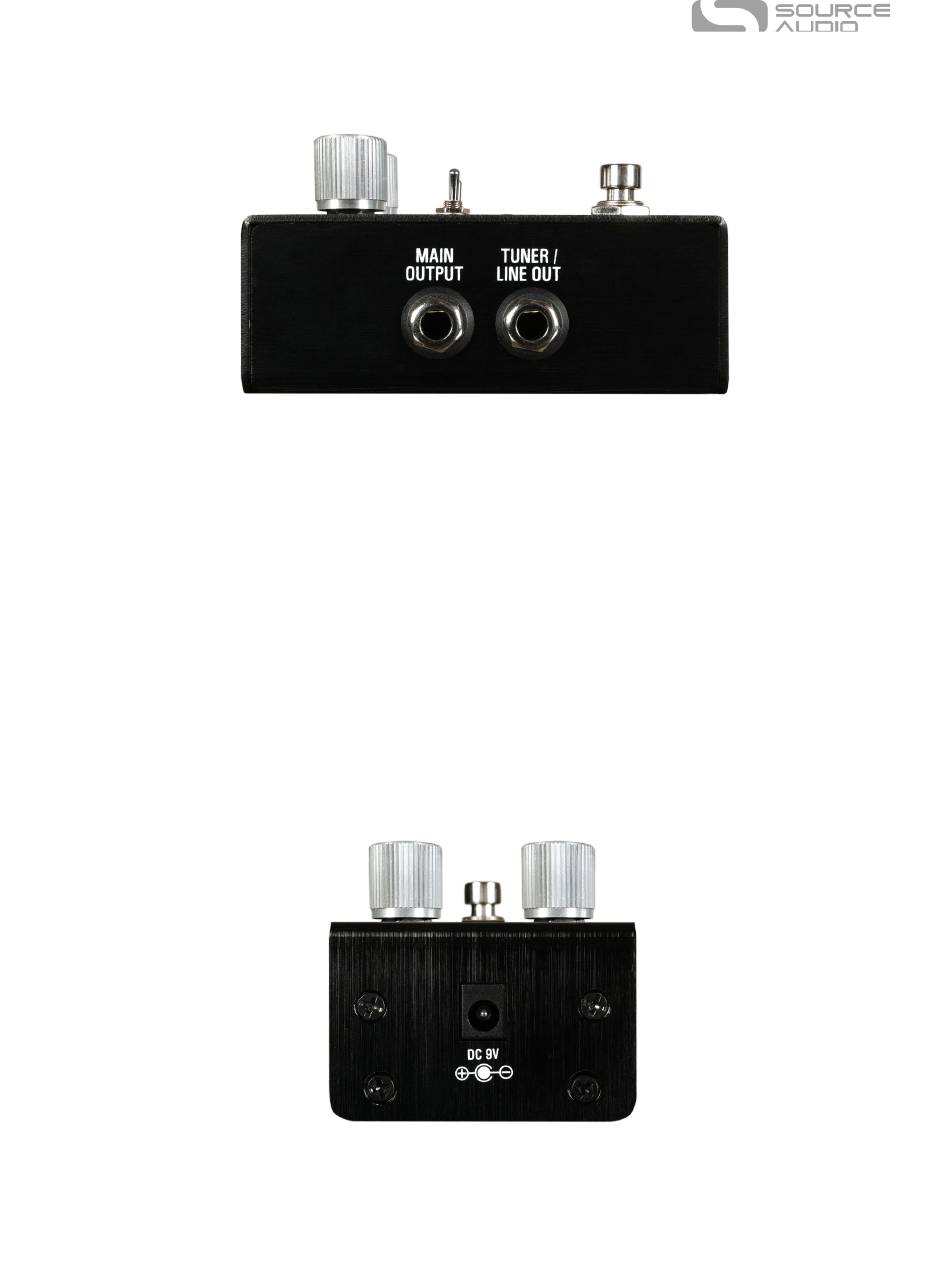

Output Side Connections
MAIN OUTPUT
This is the primary audio output. Connect it to your amplifier, recording interface, or the next device
in your effects signal chain using a mono (TS) ¼" cable.
TUNER / LINE OUT
O
2 can act either as an auxiliary audio output or an output for connecting to your tuner.
UTPUT
•
TUNER / LINE OUT Output as an Audio
audio output. It carries an audio signal when the ZIO is configured with a signal routing that uses
stereo outputs. Connect it to your amplifier, recording interface, or the next device in your
effects signal chain using a mono (TS) ¼" cable.
Power Connections
SA271
Output:
The tip contact on O
ZIO User Guide
2 acts as the secondary
UTPUT
4
