Wait until both the Sensor Head and Control Unit have been switched on for a minimum of 90 minutes. Perform the following tests:  Verify that the green LED (D10) on the terminal PCB is flashing at equal intervals, indicating that the chest assembly temperature is under control.  Check the final stabilised Sensor Head temperature by measuring the voltage between TB3 terminals 1 and 2 (ground) in the Sensor Head terminal box. This voltage should be 6.6 0.4V.  Select the VIEW option from the main menu. Check that the zirconia sensor temperature is 700 10C.  Check that the combustibles sensor temperature is 300 20C. how to perform this test

Summary of Contents for Servomex SERVOTOUGH FluegasExact 2700

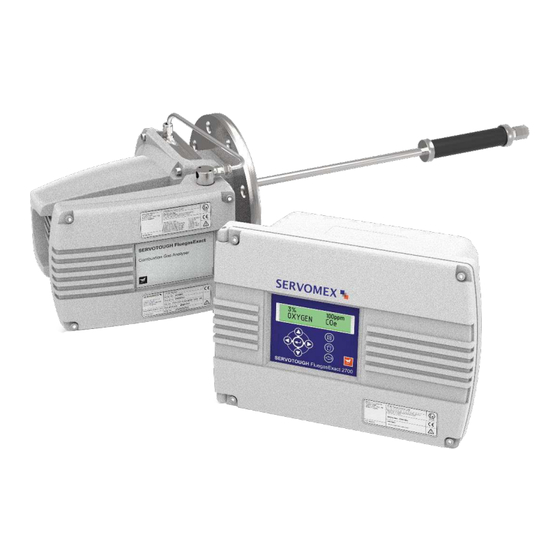

Page 1 SERVOTOUGH FluegasExact 2700 INSTALLATION MANUAL Part Number: 02700005D Revision: Language: UK English...
Page 3 This handbook is accurate at the date of printing but will be superseded and should be disregarded if specifications or appearance are changed. Servomex is a registered trademark of Servomex Group Limited. The use of all trademarks in this document is acknowledged.
Page 5: Table Of Contents
Initial Startup Procedure ...................... 62 Gases required ......................62 Visual inspection ......................62 Initial power up ......................63 Analogue output span setup ..................63 Sensor head sample flow adjustment ................64 Combustibles sensor zero adjustment ................64 02700005D_7 © Servomex Group Limited. 2021...
Page 6 11 Appendix C – Product Disposal / Applicability of the Waste Electrical and Electronic Equipment (WEEE) Directive ...................... 98 12 Appendix D – REACH Regulation ..................100 13 Appendix E – North American – Hazardous Area Installation Drawing ......102 © Servomex Group Limited. 2021 02700005D_7...
Page 7 Figure 23. Oxygen sensor only interconnection wiring schematic ..........88 Figure 24. Combustibles only interconnection wiring schematic ............ 90 Figure 25. Dual sensor interconnection wiring schematic .............. 92 Figure 26. Flow alarm interconnection wiring schematic ............... 94 02700005D_7 © Servomex Group Limited. 2021...
Page 8 Table 32. Recommended cables and suppliers ................87 Table 33. Oxygen sensor only interconnection wiring ..............89 Table 34. Combustibles only interconnecting wiring ..............91 Table 35. Dual sensor interconnecting wiring ................94 Table 36. Flow alarm interconnection wiring schematic..............95 © Servomex Group Limited. 2021 02700005D_7...
Page 9: Introduction
Addresses for technical assistance and spares are given on the rear cover. A QuickStart Manual is available, part number 02700003D. A Service Manual is available for use by qualified personnel, part number 02700002D. About this manual Reference: 02700/005D Order as part number: 02700005D 02700005D_7 © Servomex Group Limited. 2021...
Page 10: General Safety Information
Zone 2 / Division 2 hazardous area / location. Flanges and flange adaptors supplied by Servomex DO NOT conform to ANSI or any other Standards body and must only be used in Servomex specified applications with process pressure not greater than 0.34 barg (5 psig).
Page 11: Hazardous Area Approval And Certification
11Kg (24.3lb) respectively and care must be taken when handling. Remove the analyser components from their packing and inspect for obvious external damage. If damage has occurred, inform Servomex or its agent immediately. Retain all packing and shipping information for future use. 02700005D_7...
Page 13: Analyser Overview
The user must ensure that both the sensor head and control unit have their own separate power supply. Also required is a compressed air supply with a pressure regulator to control the aspirator air supply. 02700005D_7 © Servomex Group Limited. 2021...
Page 14: Sensor Head Description
Aspirator air isolation valve (supplied by customer) It is design to detect and indicate a low flow condition in the sample stream. Relay contacts are provided for indicating low flow and flow fault conditions. © Servomex Group Limited. 2021 02700005D_7...
Page 15: Installation Of Sensor Head And Probe Tube
Refer to Figure 4. NOTE All Servomex adaptor flanges, interface flanges, probe support tubes, stand-offs and thermal spacers, including the integral flange on the sensor head, are suitable for fitting onto the standard flanges (raised face [<1.6mm] or flat faced). They do not comply with any national or international standards and the analyser’s maximum...
Page 16: Figure 3 - Protect From Radiant Heat Sources And The Sun
Figure 3 – Protect from radiant heat sources and the sun Operating environment conditions for the sensor head are given in Table 1. © Servomex Group Limited. 2021 02700005D_7...
Page 17: Table 1. Sensor Head Operating Environment
Refer to Section 7. Table 1. Sensor head operating environment 02700005D_7 © Servomex Group Limited. 2021...
Page 18 The anti-seize compound (part number 1761-3211) and ROCOL ASP dry film anti- scuffing paste are the only recommended release compounds. The use of "Silver Goop" or other similar release agents may result in permanent damage to the combustibles sensor (if fitted). © Servomex Group Limited. 2021 02700005D_7...
Page 19: Figure 4. Sensor Head Dimensions (Typical)
Calibration gas / blowback gas inlet Aspirator air supply inlet 1/8” NPT 1/4” OD compression fitting (INT) Purge gas exit 1/4” NPT (INT) or M6 screws (4 off) breather fitting Unused entry 02700005D_7 © Servomex Group Limited. 2021...
Page 20: Flange Mounting Arrangements
NOTES Ensure that mounting bolts are tightened evenly to prevent the sensor head from tilting, damaging the gasket and causing leaks. Servomex recommended torque for mounting bolts is 20 lb/ft. The sensor head must not be left un-powered when mounted on an active flue. If the sensor head is not to be fitted immediately then a blanking flange should be used.
Page 21 M16 studding and M16 nuts and washers to mount the sensor head configuration supplied onto a Servomex weld on 4" flange. 3.2.2 Weld-on flange installation If there is no existing flange available then a weld-on flange (part number 02750409) may be provided.
Page 22: Table 2. Sensor Head Adaptor Flange Kits
145.0 JIS 80 5Kg/cm 02750990 130.0 DIN 80 PN16 02750989 JIS 65 5Kg/cm 02750988 168.3 3" ANSI 300 18.0 dia 02750991 c/bored 38.0 168.3 Thermox WDG IV Table 2. Sensor head adaptor flange kits © Servomex Group Limited. 2021 02700005D_7...
Page 23: Figure 5. Adaptor Flange Installation
4" flanges welded onto a 102mm (4 inch) diameter pipe. Each of the flanges has four M16 threaded and four 19mm plain holes equally spaced on a 190.5mm diameter pitch circle (PCD). Refer to Figure 6. 02700005D_7 © Servomex Group Limited. 2021...
Page 24: Figure 6. High Temperature Stand-Off Flange Installation
Section 3.2.6. Figure 6. High temperature stand-off flange installation 4” ANSI flange on flue with weld-on or adaptor flange fitted where M16 nuts and washers (4 off each) necessary © Servomex Group Limited. 2021 02700005D_7...
Page 25 • If a probe retention flange is to be installed then replace the M16x80mm studs with the M16x105mm studs supplied. Install the probe retention flange as described in Section 3.2.6. 02700005D_7 © Servomex Group Limited. 2021...
Page 26: Figure 7. Thermal Spacer Installation
ANSI 4” gasket ANSI 4” gasket Thermal spacer M16 x 80mm studs (4 off) 4” flange on Servomex 2700 sensor head 3.2.6 Probe retention flange installation A probe retention flange (part number 02750998) is available when it is required to leave the probe in the process during servicing.
Page 27 4" ANSI sealing gasket [7] and the four M16 nuts and washers [8] provided. Ensure that the vent hole in the gasket and in the retention flange are aligned with the sample vent on the sensor head. 02700005D_7 © Servomex Group Limited. 2021...
Page 28: Sample Probe Installation
There are many possible configurations for the probe assemblies grouped into three main types: • Open-ended sample probes (only use with internal sample filter option). • Unsupported filtered sample probes. © Servomex Group Limited. 2021 02700005D_7...
Page 29 (using PTFE tape to seal the thread) or to a probe retention flange. The probe retention flange is used to avoid potential damage to the fragile probe when removing the sensor head from the flue for maintenance purposes. Refer to Section 3.2.6 for probe retention flange installation. 02700005D_7 © Servomex Group Limited. 2021...
Page 30: Table 3. Sample Probe Part Numbers
1.5m Ceramic, Open-Ended 02740707 A <1750°C B <1750°C D <1750°C C <1750°C * Ceramic, Filtered 02740708 A <1750°C B <1750°C C <1750°C * * Denotes vertical mount only Table 3. Sample probe part numbers © Servomex Group Limited. 2021 02700005D_7...
Page 31: Figure 9. Sample Probe And Filter Construction
Filter retaining cap 1/2” NPT threaded mounting hole in Silicon carbide filter element Servomex 2700 filter block 2700 mounting flange Filter retaining cap Mounting flange on flue Locking nut assembly 1/2” compression to 1/2” NPT adaptor 02700005D_7 © Servomex Group Limited. 2021...
Page 32: Figure 10. Supported Probe Construction
Installing the support tube assembly Refer to Figure 10. Fit the sample filter shroud [2] onto the end of the support tube [7]. The sample filter shroud [2] must be positioned with respect to the direction of the © Servomex Group Limited. 2021 02700005D_7...
Page 33 Attach the sensor head to the protruding length of the sample probe tube using the compression fitting. Attach the sensor head to the support tube flange and secure in place with the four M16 nuts and washers [10]. 02700005D_7 © Servomex Group Limited. 2021...
Page 34: Figure 11. Probe Support Tube Installation
M16 nuts and washers (4 off each) provide 4” ANSI 150lb flange ANSI 4” gasket ANSI 4” gasket Support tube flange M16 x 80mm studs 4” flange on 2700 sensor head © Servomex Group Limited. 2021 02700005D_7...
Page 35: Calibration And Utilities Supplies
If the sensor head is to be used in conjunction with the optional flow alarm, an aspirator air isolation valve must be fitted to allow zero calibration of the flow alarm. This valve must be fitted between the aspirator air regulator and the entry to the sensor head. 02700005D_7 © Servomex Group Limited. 2021...
Page 36 The purge gas inlet must be connected to the terminal box and not to the sensor head main body in order to avoid overheating of the terminal box PCB. © Servomex Group Limited. 2021 02700005D_7...
Page 37 Blow back must not be used instead of a suitably specified sample probe. If you have any concerns over the included probe, consult Servomex prior to installation. Time must be given to allow for calibration pipe work to be Auto Calibration flushed and for the sensors to stabilise.
Page 38: Electrical Installation
For operation above 50°C, all cables connected to the sensor head must be rated for temperatures of at least 80°C (176°F) © Servomex Group Limited. 2021 02700005D_7...
Page 39 TB5/13, TB3/9 and the stud PCB terminal – S, as detailed on the interconnection diagram and Figure 12. Fuse F1 located in the terminal box is rated F6.3A HRC (5 x 20mm) for both 100- 120V and 220-240V operation. 02700005D_7 © Servomex Group Limited. 2021...
Page 40 • The mains power cable must be wired so that the protective earth conductor is the last conductor to take the strain in the event of the cable slipping in its anchorage. © Servomex Group Limited. 2021 02700005D_7...
Page 41: Figure 12. Sensor Head Terminal Enclosure Detail
100-120Vac or 220-240Vac Neutral TB1-N 50/60Hz, 600VA maximum Protective earth TB1-Protective ground Note that terminal TB1-protective ground is at the right-hand side Table 4. Sensor head electrical power connections Figure 12. Sensor head terminal enclosure detail 02700005D_7 © Servomex Group Limited. 2021...
Page 42: Atex/Iecex Special Instructions For Hazardous Areas
Provide automatic closing and spark arresting devices at the purge outlet aperture. d. Provide low and high pressure monitoring and control, set to give pressures no less than the minimum and no greater than the maximum specified above respectively within the enclosure. © Servomex Group Limited. 2021 02700005D_7...
Page 43 However, under abnormal conditions, the process environment may become flammable for short periods of time. The Fluegas Exact Sensor Head contains flame arrestors that prevent an ignition of a flammable sample within the Sensor 02700005D_7 © Servomex Group Limited. 2021...
Page 44: Figure 13. Typical Sample Arrangement
Head from propagating into the process environment. These flame arrestors have been tested to the flameproof standard EN/IEC 60079-1. Figure 13. Typical sample arrangement © Servomex Group Limited. 2021 02700005D_7...
Page 46: North America Special Instructions For Hazardous Areas
"special permission" from the inspection authority having jurisdiction. 3. Power must not be restored after enclosure has been opened until enclosure has been purged for 30 minutes at a flow rate of 3 l/min minimum. © Servomex Group Limited. 2021 02700005D_7...
Page 47 The Fluegas Exact Sensor Head contains flame arrestors that prevent an ignition of a flammable sample within the Sensor Head from propagating into the process environment. These flame arrestors have been tested to the flameproof standard EN/IEC 60079-1. 02700005D_7 © Servomex Group Limited. 2021...
Page 50: Installation Of Flow Alarm Relay Box
95% RH maximum, non-condensing Atmospheric pressure 76 to 112 kPa (absolute) (11 to 16.2 psia) Altitude 2000m maximum Overvoltage category Category II Pollution degree Pollution Degree 2 Table 6. Flow alarm relay box operating environment © Servomex Group Limited. 2021 02700005D_7...
Page 51: Figure 15. Flow Alarm Relay Box Installation
Figure 15. Flow alarm relay box installation Gland entries M20 x 1.5 with 3/4” Flow alarm relay box NPT adaptors Box lid EMC earth terminal Mounting holes (for 4 off M6 bolts) 02700005D_7 © Servomex Group Limited. 2021...
Page 52: Electrical Installation
0.13 to 1.5 mm2 (26 to 16 AWG) Wire Size, TB2 0.13 to 2.5 mm2 (26 to 14 AWG) Stripping Length 10mm Tightening Torque 0.4 - 0.5 Nm Table 7. Relay box terminal information © Servomex Group Limited. 2021 02700005D_7...
Page 53: Table 8. Relay Contact Specification
CLOSED=Fault Fault Common TB2-1 TB2-2 OPEN=Fault Table 10. Flow alarm relay box terminals - INVERSE mode CAUTION Terminals TB1-1 to TB1-4 shall only be used to connect the relay box to the sensor head. 02700005D_7 © Servomex Group Limited. 2021...
Page 54 All glands shall be selected to provide cable strain relief and the effectiveness of that strain relief to withstand pulling and twisting of the cable confirmed in accordance with the relevant safety standard applicable to the installation. © Servomex Group Limited. 2021 02700005D_7...
Page 55: Figure 17. Flow Sensor Signal Amplifier Board
Table 11. Flow sensor signal amplifier board terminal information CAUTION The terminals TB3 on the Flow Sensor Signal Amplifier Board in the Sensor Head shall only be used to connect to a Servomex Flow Alarm Relay Box. 02700005D_7 © Servomex Group Limited. 2021...
Page 56 Signal Amplifier Board to the response of the Flow Sensor. WARNINGS For operation above 50°C, all cables connected to the flow alarm relay box must be rated for temperatures of at least 80°C (176°F) © Servomex Group Limited. 2021 02700005D_7...
Page 58: Installation Of Control Unit
10 kg. The control unit shall not be lifted by means of any fitted cables. NOTE Allow 365mm at the front and 250mm to the left hand side for service access. © Servomex Group Limited. 2021 02700005D_7...
Page 59: Table 12. Control Unit Operating Environment
M8 by 20mm screws and washers. Four 12mm diameter holes are provided for mounting the control unit to the wall. Servomex recommend the use of M8 or 3/8" bolts to fix the control unit to the wall.
Page 60: Figure 18. Control Unit Installation
Wall mounting brackets M6 bolts (4 off) EMC earth terminal 3/4” NPT (INT) threaded cable ¼” NPT (INT) threaded enclosure conduit entries or optional adaptors purge inlet and outlet fittings as required (optional) or blanking plugs © Servomex Group Limited. 2021 02700005D_7...
Page 61: Electrical Installation
For operation above 50°C, all cables connected to the control unit must be rated for temperatures of at least 80°C (176°F) 02700005D_7 © Servomex Group Limited. 2021...
Page 62 (20 AWG) to 2.5mm (14 AWG) solid conductors or 1.5mm (16 AWG) stranded conductors. • The mains power cable connected to the control unit shall have a minimum conductor size of 1.0mm (16 AWG). © Servomex Group Limited. 2021 02700005D_7...
Page 63: Table 13. Control Unit Electrical Power Voltage Selection
All electrical connections and access to the mains power fuse, F1, are made to the control PCB inside of the control unit enclosure. After electrical connections are complete ensure that the safety cover is re-fitted and the access door is fully bolted down. 02700005D_7 © Servomex Group Limited. 2021...
Page 64: Figure 19. Control Unit Enclosure Detail
LCD ribbon cable connection PL1 Electrical power and user external connections to the analyser outputs are detailed in Figure 23, Figure 24, and Figure 25, and in Table 14, Table 15, Table 16 and Table 17. © Servomex Group Limited. 2021 02700005D_7...
Page 65: Table 14. Control Unit Electrical Power Connections
100 to 120Vac -10% +10% Live TB3-L 220 to 240Vac -10% +10% Neutral TB3-N 50/60Hz, 250VA maximum Protective earth TB3-Protective ground Note that pin TB3-protective ground is at the top Table 14. Control unit electrical power connections 02700005D_7 © Servomex Group Limited. 2021...
Page 66: Table 15. Relay Output Connections
+ ve TB2-17 maximum load impedance 1000 ohms - ve TB2-18 The full scale of the above outputs represents the range selected by the user via the analyser software interface. Table 16. Analogue output connections © Servomex Group Limited. 2021 02700005D_7...
Page 67: Enclosure Purge Connection
The purge gas must be air from a non-hazardous area source or an inert gas. The control unit internal volume is approximately 8.5x10 (520in ). Vent the outlet freely to atmosphere and ensure that the vent cannot become blocked or restricted. 02700005D_7 © Servomex Group Limited. 2021...
Page 68 For hazardous Areas, the purge must satisfy the area safety requirements. For corrosive purge, a flow rate of 50 to 100ml/min at 490 to 980 Pa (50 to 100mm O) is required. © Servomex Group Limited. 2021 02700005D_7...
Page 70: Initial Startup Procedure
Check fuse F1 fitted is F6.3A HRC (voltage independent). In the control unit (refer to Figure 19): • Check that the transformer primary lead is connected to the correct socket. PL7 for 100V-120V (nominal) or PL6 for 220V-240V (nominal). © Servomex Group Limited. 2021 02700005D_7...
Page 71: Initial Power Up
Analogue output span setup Refer to the QuickStart manual. • SET OUTPUTS If a zirconia sensor is fitted then select the option in the SERVICE 20mA menu and select for the oxygen analogue output. Check the 02700005D_7 © Servomex Group Limited. 2021...
Page 72: Sensor Head Sample Flow Adjustment
LOW point calibration of the combustibles sensor (if fitted). • Apply a nominal 0.3% O in N gas mixture to the calibration gas inlet at a flow rate of 600 to 800ml/min. Perform a LOW point calibration of the zirconia sensor © Servomex Group Limited. 2021 02700005D_7...
Page 73: Flow Alarm Calibration
5 to 10 days. Flow alarm calibration Figure 20. Flow alarm relay box components Fault/Alarm relay enable/disable SPAN/NORMAL flow potentiometer (Rotary switch (low flow alarm Fault/Alarm relay direct/invert threshold) ZERO flow potentiometer 02700005D_7 © Servomex Group Limited. 2021...
Page 74 If the analyser reading goes directly to the check gas value then the analyser is not drawing a sample and the cause must be investigated. © Servomex Group Limited. 2021 02700005D_7...
Page 75 RED LED comes ON. Then turn in the opposite direction until the GREEN LED just comes on. The Span is now set and, with 100% sample flow, the SPAN GREEN LED will be ON. 02700005D_7 © Servomex Group Limited. 2021...
Page 76 6. All three GREEN LED's will now be ON. If not, investigate and rectify the fault. 7. Set the Fault/Alarm relay Enable/Disable switch back to ON. Low Flow or a Fault condition will now be indicated via the customer interface relays. 8. Replace the Flow Alarm Relay Box Cover. © Servomex Group Limited. 2021 02700005D_7...
Page 77: Maintenance And Spares
Analyser flow rates, air supplies, probes and filters (internal an external), should be checked once per year, as well as the whole analyser and cabling for signs of wear. In more rugged applications, these times may need to be shorter, depending on experience. 02700005D_7 © Servomex Group Limited. 2021...
Page 78: Replacing Fuses
SERVOSURE report. Note that you will always be informed in advance if any repairs or new parts are required for your analyser. Contact Servomex or your local Servomex agent to arrange for a preventative maintenance contract. © Servomex Group Limited. 2021...
Page 79: Spare Parts
Spare parts WARNING SERVOTOUGH FluegasExact spares must be supplied by Servomex. Table 19 to Table 23 list the parts that may be relevant to the installation. Service Manual 02700002D is available and must be used when replacing any of these parts.
Page 80: Table 20. Sensor Head - Description
Fuse Kit (Control Unit & Sensor Head) S2700998 * * includes: F1.6A HRC (5 x 20mm), F2.5A HRC (5 x 20mm), F3.15A HRC (5 x 20mm) & F6.3A HRC (5 x 20mm) Table 20. Sensor Head – description © Servomex Group Limited. 2021 02700005D_7...
Page 81 S2740712B Probe <700°C, SS, Double-Filtered, 1.5m * S2740712C Probe <700°C, Hastelloy, Open-ended, 0.5m S2740713A Probe <700°C, Hastelloy, Open-ended, 1.0m S2740713B Probe <700°C, Hastelloy, Open-ended, 1.5m S2740713C Probe <1000°C, High Temp Alloy, Open-ended, 0.5m S2740704A 02700005D_7 © Servomex Group Limited. 2021...
Page 82: Table 21. Sample Probes - Description
<700°C SS filtered/double-filtered probe in a supported probe installation. ** Items 16,17 and 18 (filter probes exceeding 1.5m in length) are only available as part of a supported probe installation and should not be used alone. Table 21. Sample probes – description © Servomex Group Limited. 2021 02700005D_7...
Page 83: Table 22. Manuals - Description
Installation Manual - German 02700025D Installation Manual - Spanish 02700035D Service Manual - English 02700002D Table 22. Manuals – description Item Spare part number Complete Mains Protection Cover Kit S2700996 Table 23. Flow alarm relay box spares 02700005D_7 © Servomex Group Limited. 2021...
Page 84: Technical Specification
) unfiltered software 300ml/min) Table 25. Combustibles measurement performance CAUTION The combustibles measurement is not promoted or recommended as a primary safety measurement, e.g. for use in electrostatic precipitator (ESP) protection or coal mill applications. © Servomex Group Limited. 2021 02700005D_7...
Page 85: Flow Alarm Performance
Flow alarm performance Description Specification ± 20ml/min at 200ml/min (nominal flow) Repeatability Response time (T < 20 seconds Table 26. Flow alarm performance 02700005D_7 © Servomex Group Limited. 2021...
Page 86: Analyser Inputs And Outputs
Two SPCO relays (250Vac / 3A or 12Vdc / 1A max) Flow Status Alarm and Flow Alarm Fault. Flow alarm relay box Maximum contact voltage with respect to earth 264Vac / 264Vdc Table 27. Analyser inputs and outputs summary © Servomex Group Limited. 2021 02700005D_7...
Page 87: Physical
Ingress protection – sensor head IP66 Ingress protection – flow alarm IP66 relay box Pressure: 0.2 to 0.3 barg (3 to 5 psig). Flow: 1.5 litres/min typical. Aspirator air requirements Instrument grade compressed air, free from oil, water. 02700005D_7 © Servomex Group Limited. 2021...
Page 88: Materials In Contact With Sample
316 and 303 stainless steel, gasket sealing Sensor head material 316 and 310 stainless steel, Incoloy 803, silicon Sample probes carbide, high temperature ceramic Table 29. Materials in contact with sample Hazardous area classification Please see next page. © Servomex Group Limited. 2021 02700005D_7...
Page 89 Flow alarm relay box - European ATEX II 3 GD Coding (Gases) Ex nA nC IIC T4 Gc Coding (Dusts) Ex tc IIIC T75°C Dc IP66 Temperature Range -20°C to +65°C Certificate number (ATEX) Baseefa11ATEX0263X 02700005D_7 © Servomex Group Limited. 2021...
Page 90 Non-incendive (USA and Canada) Class I, Div 2, Groups A,B,C & D T5 Class II, Div 2, Groups F & G T5 Class III, Div 1 T5 Canada Ex nA nC IIC T5 Gc © Servomex Group Limited. 2021 02700005D_7...
Page 91: Sensor Head Purge Certification Labels
Table 30. Hazardous Area classification WARNINGS To minimise the risk of propagating brushed discharges, do not install in a high velocity dust laden environment. Sensor head purge certification labels 8.8.1 Sensor head Figure 21. Leakage compensation label 02700005D_7 © Servomex Group Limited. 2021...
Page 94: Appendix A - Interconnecting Wiring Schedules
Use 2 pairs for the Zirconia sensor heater. Cable and gland sizes may vary depending on the manufacturer. Always check that the outside diameter of the cable is suitable for the gland being specified. Table 31. Interconnecting cable requirements © Servomex Group Limited. 2021 02700005D_7...
Page 95: Table 32. Recommended Cables And Suppliers
Recommended Cables and Suppliers (Always check manufactures specification for full compatibility before use). Analyser Cable Supplier Part Number Alpha……………………………… M9700040 Oxygen Only Belden…………………………….. 1056A Alpha……………………………… M9740080 Combustibles Only Belden…………………………….. 1077A Alpha……………………………… M9740120 Oxygen and Combustibles Belden…………………………….. 1078A Table 32. Recommended cables and suppliers 02700005D_7 © Servomex Group Limited. 2021...
Page 96: Figure 23. Oxygen Sensor Only Interconnection Wiring Schematic
Figure 23. Oxygen sensor only interconnection wiring schematic © Servomex Group Limited. 2021 02700005D_7...
Page 97: Table 33. Oxygen Sensor Only Interconnection Wiring
Zirconia sensor heater supply (polarity not important) TB3-6 TB2-8 TB3-7 TB2-9 Zirconia sensor temperature output TB3-8 TB2-10 TB3-9 Overall cable screen connection * Enclosure * for correct earthing details see Section 0 Table 33. Oxygen sensor only interconnection wiring 02700005D_7 © Servomex Group Limited. 2021...
Page 98: Figure 24. Combustibles Only Interconnection Wiring Schematic
Figure 24. Combustibles only interconnection wiring schematic © Servomex Group Limited. 2021 02700005D_7...
Page 99: Table 34. Combustibles Only Interconnecting Wiring
Combustibles sensor temperature output ground TB2-6 Stud Individual screens and unused cores Enclosure terminal 'S’ TB5-13 Overall cable screen connection * Enclosure * for correct earthing details see Section 0 Table 34. Combustibles only interconnecting wiring 02700005D_7 © Servomex Group Limited. 2021...
Page 100: Figure 25. Dual Sensor Interconnection Wiring Schematic
Figure 25. Dual sensor interconnection wiring schematic © Servomex Group Limited. 2021 02700005D_7...
Page 101 TB1-9 Optional sensor head temperature measurement TB3-2 TB1-10 TB3-3 TB1-7 Zirconia cell output TB3-4 TB1-8 TB3-5 TB2-7 Zirconia sensor heater supply (polarity not important) TB3-6 TB2-8 TB3-7 TB2-9 Zirconia sensor temperature output TB3-8 TB2-10 02700005D_7 © Servomex Group Limited. 2021...
Page 102: Figure 26. Flow Alarm Interconnection Wiring Schematic
Stud Individual screens and unused cores Enclosure terminal 'S’ * for correct earthing details see Section 0 Table 35. Dual sensor interconnecting wiring Figure 26. Flow alarm interconnection wiring schematic © Servomex Group Limited. 2021 02700005D_7...
Page 103: Table 36. Flow Alarm Interconnection Wiring Schematic
To comply with the requirements of the European EMC Directive, the EMC Earth on the flow alarm relay box shall be connected to a local EMC earth. The connection shall be not more than 3m long. 02700005D_7 © Servomex Group Limited. 2021...
Page 104: Appendix B - Compliance And Standards Information
The analyser has been assessed to IEC 61010-1 for electrical safety including any additional requirements for US and Canadian national differences. Servomex Group Limited is a BS EN ISO 9001 and BS EN ISO 14001 certified organisation. © Servomex Group Limited. 2021...
Page 106: Appendix C - Product Disposal / Applicability Of The Waste Electrical And Electronic Equipment (Weee) Directive
+44 (0)1892 652181 Fax: +44 (0)1892 662253 Global email: info@servomex.com All analysers returned to Servomex or one of its appointed agents for servicing, disposal, or any other purpose must be accompanied by a completed decontamination certificate. © Servomex Group Limited. 2021...
Page 108: Appendix D - Reach Regulation
In pursuance of the requirements included in Article 33 of the European REACH Regulation on the Registration, Evaluation, Authorisation and Restriction of Chemicals, information on Substances of Very High Concern (SVHC) contained in Servomex products is provided on www.servomex.com. © Servomex Group Limited. 2021...
Page 110: Appendix E - North American - Hazardous Area Installation Drawing
Appendix E – North American – Hazardous Area Installation Drawing © Servomex Group Limited. 2021 02700005D_7...
