Avalon Instruments StarGo2 Pro User Manual page 47

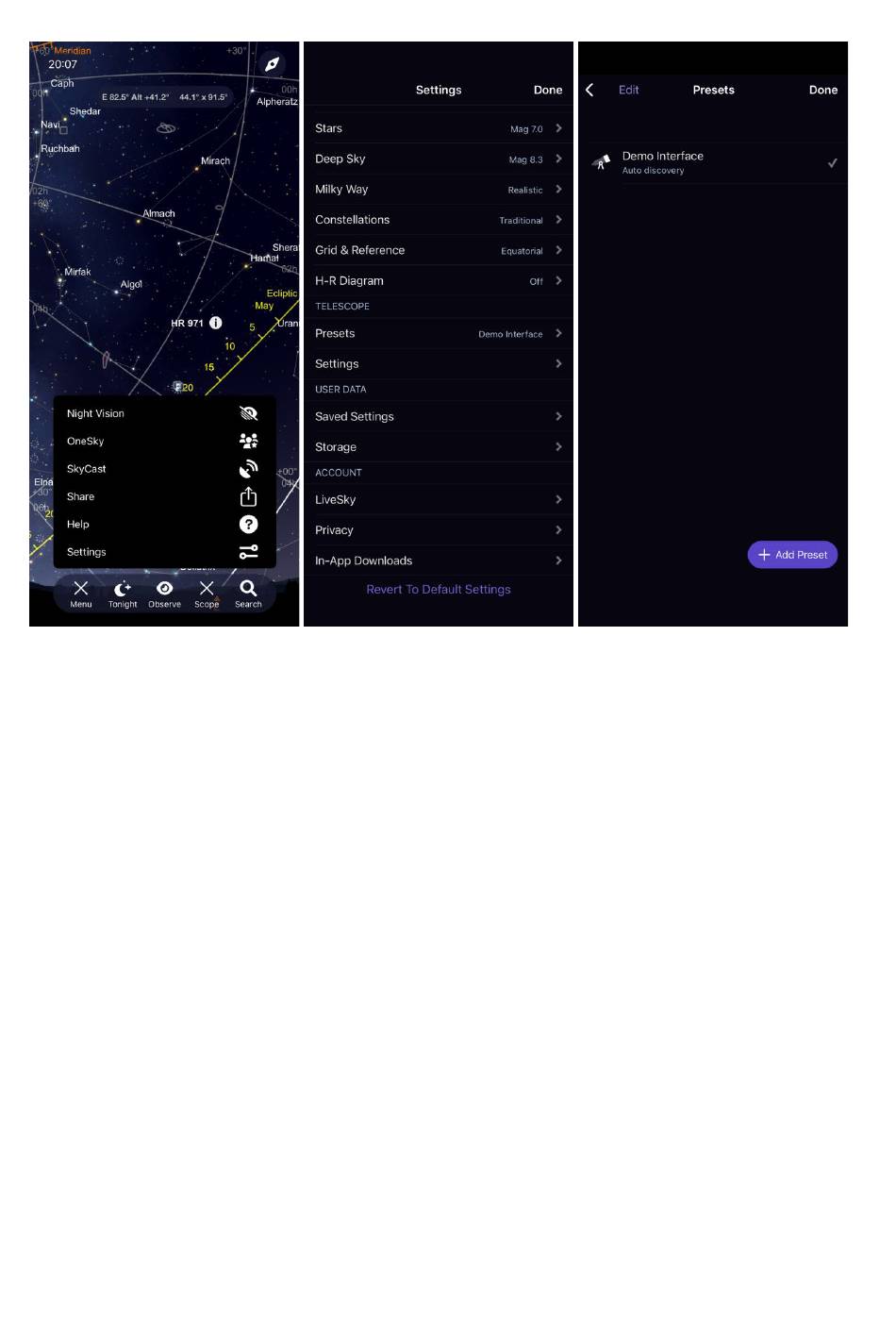

Fig. 3.1.1d
4 The first time the app is used the "Demo Interface" is the only presets available for testing.
Click on + Add Preset button below (see Figure 3.1f).
5 In the next page (Figure 3.1.1g) four types of connections are proposed. The first two are
important for us. The third is relate to the SkyFi hardware and the fourth as been already
considered before, which is like the version 6 of Skysafari. These are the way to consider
the two interesting modes:
a. ASCOM Alpaca: Click on this button to open the related page (Figure 3.1.1h). The
autodetect function is activated by the default. Press the "Scan Network For
Device" button to auto detect the StarGO2 network. If all is OK the IP Address, the
port number and the Scope name will be loaded and shown as in Figure 3.1.1i,
together with few other information. If something goes wrong (it can happen),
select the Manual Configuration and put in the related fields the needed
information, taking into account that the IP number must be taken from the
StarGO2 SODD and the port number is 11111. At the end press Next to pass to the
next page. Here it is possible to set few other secondary parameters. They are
common to whatever connection is selected and can be seen in Figure 3.1.1n
47
Fig. 3.1.1e Fig. 3.1.1f
