Avalon Instruments StarGo2 Pro User Manual page 36

1. Once launched the app on the Mac click the Setup item under the Telescope main menu
(Figure 3.26).
2. The Setup panel will open on the top left of the main window. Fill all the fields with the
information provided in Figure 3.27, with the only exception of the IP address that will be
taken from the main ODD (see Figure 2.5 of section 2).
3. After the insertion of the required parameters, the connection can be established pressing
Connect key in the bottom of the panel. This will close the Setup panel and will open the
floating Scope Control one (Figure 3.28).
36

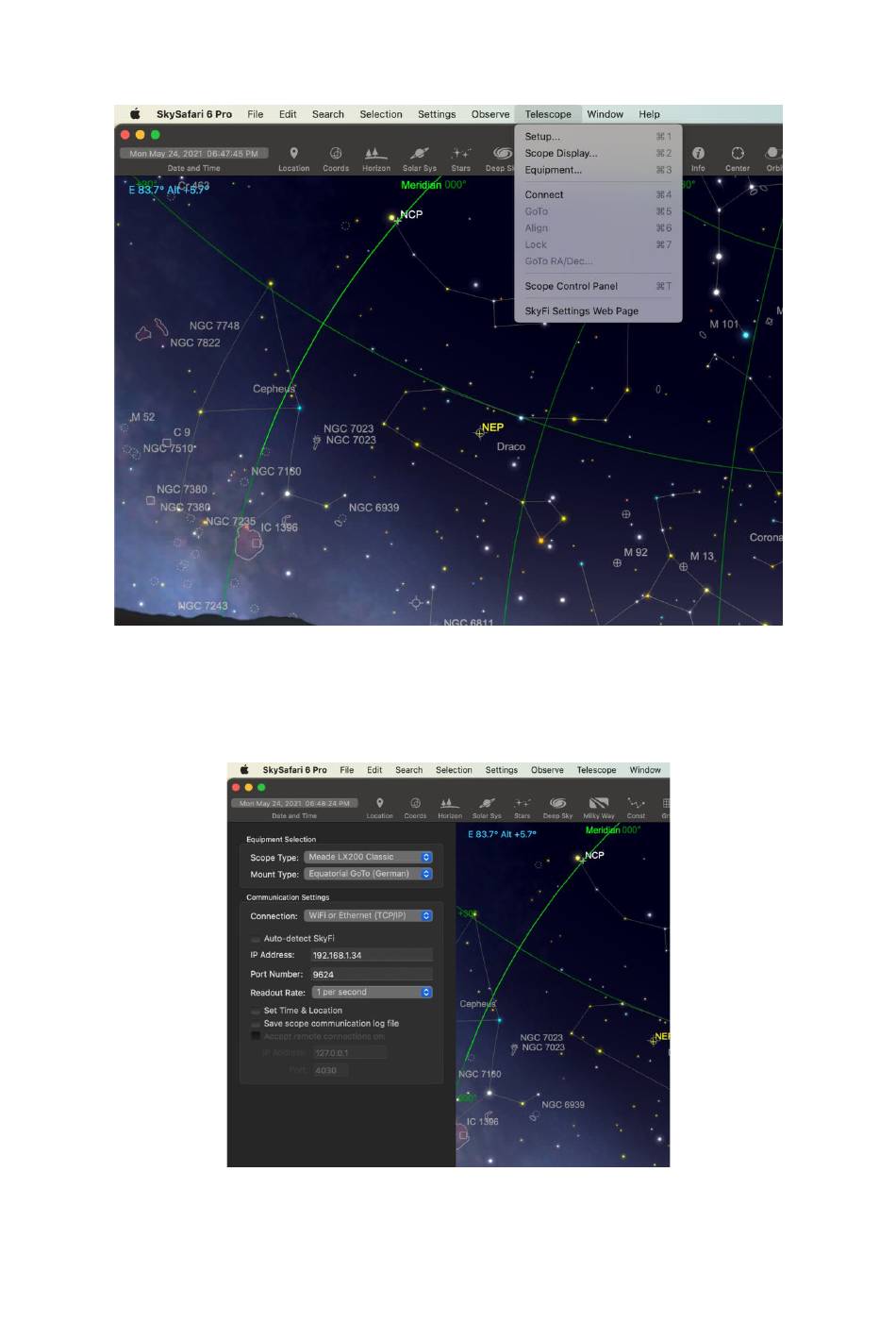

Figure 3.26
Figure 3.27
