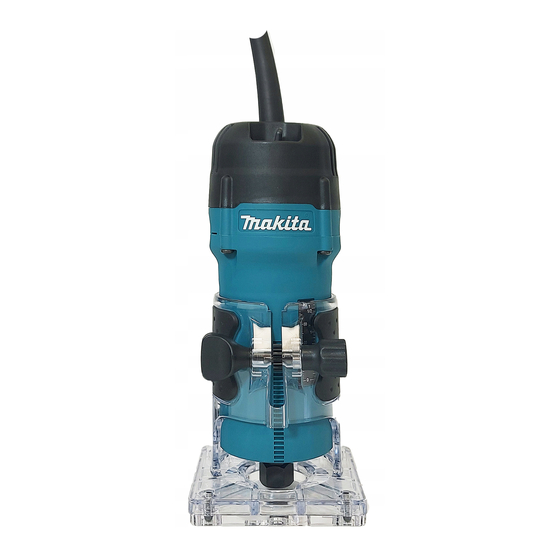

SPECIFICATIONS Model: 3711 Collet chuck capacity 6.35 mm (1/4″) or 6.0 mm No load speed 32,000 min Overall height 211 mm Net weight 1.5 kg Safety class • Due to our continuing program of research and development, the specifications herein are subject to change without notice.
When operating a power tool outdoors, use an WARNING: The vibration emission during actual extension cord suitable for outdoor use. Use of use of the power tool can differ from the declared val- a cord suitable for outdoor use reduces the risk of ue(s) depending on the ways in which the tool is used electric shock.
Trimmer safety warnings Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Use clamps or another practical way to secure and support the workpiece to a stable plat- form.
Electronic function FUNCTIONAL DESCRIPTION The tool is equipped with the electronic functions for easy operation. Indication lamp CAUTION: Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Adjusting trimmer bit protrusion To adjust the bit protrusion, loosen the clamping screw and move the base up or down as desired by turning the adjusting screw.
Insert the trimmer bit all the way into the collet cone and When using the straight guide or the trimmer guide, be tighten the collet nut securely with the two wrenches. To sure to keep it on the right side in the feed direction. This remove the bit, follow the installation procedure in reverse.
Page 7
Loosen the screws and remove the base Straight guide protector. The straight guide is effectively used for straight cuts when chamfering. ► 1. Base protector 2. Screws Place the templet guide on the base, and place Attach the guide plate to the straight guide with the base protector again.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Attach the chip deflector on the groove of the Centers, always using Makita replacement parts. base.
V-grooving bit CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
Page 10
Drill point double flush trimming bit Chamfering bit θ 30° 1/4″ 45° 60° Unit:mm Unit:mm Corner rounding bit Cove beading bit 1/4″ 1/4″ Unit:mm Unit:mm 10 ENGLISH...
Page 11
Ball bearing flush trimming bit Ball bearing chamfering bit θ 45° 1/4″ 1/4″ 60° Unit:mm Unit:mm Ball bearing corner rounding bit Ball bearing beading bit 1/4″ Unit:mm Unit:mm 11 ENGLISH...
Page 12
Ball bearing cove beading bit Ball bearing roman ogee bit Unit:mm Unit:mm Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885894-228 www.makita.com 20210222...
