Section 3: Installation and Set Up

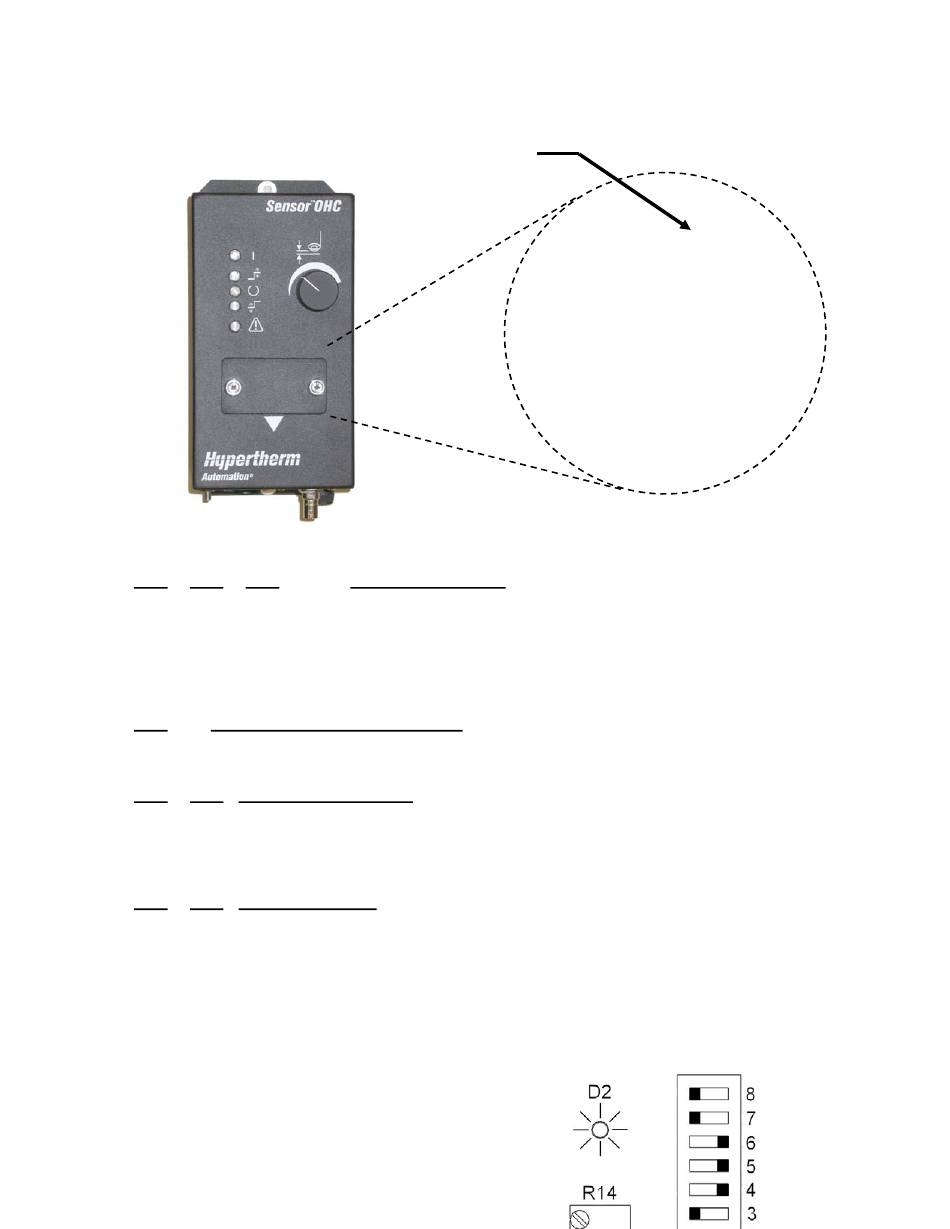

DIP Switch Setup
SW1
SW2
SW3
on
on
on
off
on
on
on
off
on
off
off
on
on
on
off
off
on
off
SW4
In Position 0utput in Manual Mode
off
Normal - active output near height set point*
on
Forced active - always active in Manual Mode
SW5
SW6 Sensitivity & Loop Gain
off
off
Sensitivity lowest - Lowest Gain Most Stable / use for high speed lifters ( > 3000 mm/min )*
on
off
Sensitivity medium low
off
on
Sensitivity medium high
on
on
Sensitivity highest - Highest Gain Least Stable / use for low speed lifters ( < 750 mm/min )
SW7
SW8 Max Motor Current
off
off
Current lowest = 2.0 Amp 50W
on
off
Current medium low = 3.0 Amps 75W
off
on
Current medium high = 4.0 Amps 100W
on
on
Current highest = 6.0 Amps 150W*
* Indicates setting as shipped.
NOTE: The RJ45 connector under the calibration panel is not a network connection. It is a proprietary
connector and is for the use of authorized service personnel only.
DIP Switches
Sensor Cable Length
cable length = 500 mm
cable length = 800 mm
cable length = 900 mm
cable length = 1000 mm *
cable length = 1200 mm
cable length = 1500 mm
