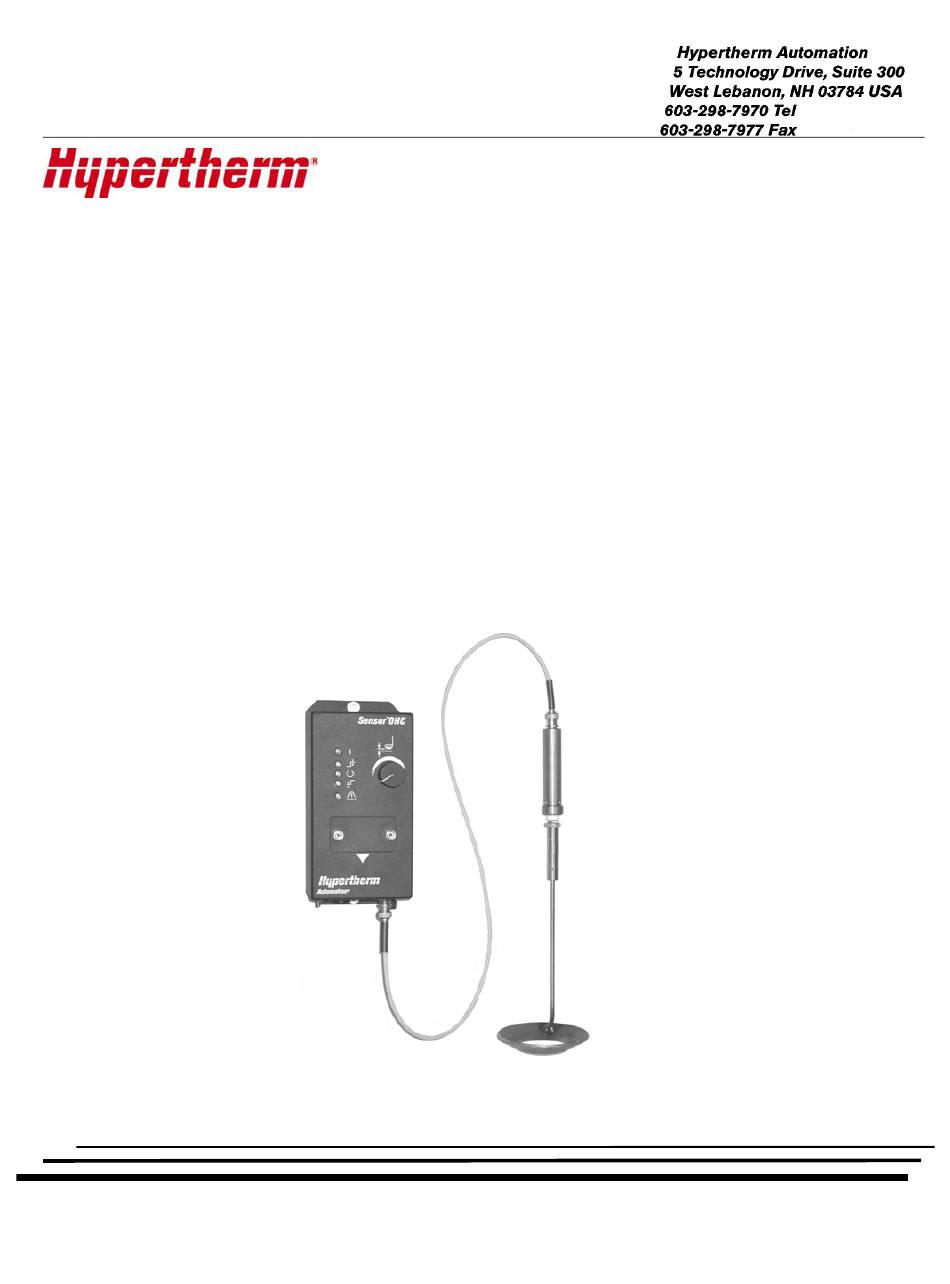

- Page 1 ™ OHC YPERTHERM ENSOR UTOMATED EIGHT ONTROL & S PERATION UIDE Making people and machines more productive through process Automation...
- Page 2 ® Automation assumes no responsibility for any errors that may appear. ® Hypertherm Automation is a wholly owned subsidiary of Hypertherm , Inc. RADEMARKS Sensor™ is a trademark of Hypertherm Automation. AR-300/100W Levilator Clearance Control is a trademark of CMC Burny.
-
Page 3: Table Of Contents
Table of Contents SAFETY ..............................1 Read This Manual ..........................1 Dangerous Machinery ........................1 High Voltages............................. 1 SECTION 1: OVERVIEW ........................3 Introduction ............................3 Description and Features ........................4 Hardware Specifications ........................ 5 Control Unit Front ..........................6 Control Unit Bottom .......................... -
Page 5: Safety
Safety Safety Read This Manual Read and understand this instructional manual, the cutting machine manuals, and your employer’s safety practices. Note: This product is not designed to be field serviceable. Please return to an authorized repair center for any required service. Dangerous Machinery Operation and maintenance of automated equipment involves potential hazards. - Page 6 Sensor OHC Operation and Set Up Guide...
-
Page 7: Section 1: Overview
One of the most important parameters in Oxy Torch cutting is consistent torch tip to plate standoff distance. The Hypertherm Sensor OHC uses a capacitive sensor to measure the torch to plate distance. The unit will drive a DC motor on the torch lifter to automatically maintain a user selected torch to plate distance. -
Page 8: Description And Features
This reduces operator input, improves accuracy and increases productivity. Features Sensor OHC can be used with any CNC Easy setup & operation Both manual & automatic operation modes Microprocessor control for increased sensitivity and control... -
Page 9: Hardware Specifications
Section 1: Overview Hardware Specifications Main Power Supply: 24 VAC +/- 10%, 50/60 Hz Compatible Lifter Motors: DC permanent magnet motor 24Vdc, 2 Amps to 6 Amps Operating Temperature: 0 to +50 deg C Control Range: Linear 0.1 inch to 1.0 inch (2.5 to 25 mm) (standard sensor &... -
Page 10: Control Unit Front
Sensor OHC Operation and Set Up Guide Control Unit Front Power Indicator Upper Limit Indicator In Position Indicator Height Set Point Adjust Lower Limit Indicator Error Code Indicator Set Up & Calibration Access Panel... -
Page 11: Control Unit Bottom
Section 1: Overview Control Unit Bottom Capacitive Sensor Ground Control Interface Limit Switches 6 Amp Fuse Power & Motor... -
Page 12: Sensor And Mounting Isolator
Sensor OHC Operation and Set Up Guide Sensor and Mounting Isolator Mounting Isolator Spring Breakaway Capacitive Sensor Ring... -
Page 13: Section 2: Operation
Section 2: Operation Section 2: Operation Operation Modes The two basic modes of operation are “Automatic” and “Manual”. Note: The control unit must be calibrated prior to use. See calibration instructions in this guide. Automatic Operation “Automatic” mode is active whenever the “Manual” input on pin-3 of the 15 pin I/O connector is open. -
Page 14: Error Conditions
Sensor OHC Operation and Set Up Guide Error Conditions Red Error LED Error Indications The red ERROR LED indicates abnormal conditions by flashing an error code. The error code meanings are listed below. 1 Flash - Sensor Shorted Error Indicates that the sensor is in contact with the plate. In Auto Height mode, this will cause a rapid retract until the sensor no longer is in contact with the plate. -
Page 15: Section 3: Installation And Set Up
Section 3: Installation and Set Up Section 3: Installation and Set Up Installation Sensor Mounting The sensor connection is thru the coax cable to the sensor mounting isolator. It is the responsibility of the installer to provide a mounting clamp that will correctly position the sensor ring with respect to the torch tip. -
Page 16: Connectors
Sensor OHC Operation and Set Up Guide Connectors Wire the unit as shown with reference to the following figures. A standard mating connector kit is available which provides the mating 9 pin & 15 pin “D” type connectors and the 7 pin circular power connector (CONN-0141). -
Page 17: Limit Switch
Section 3: Installation and Set Up Limit Switch The lifter upper and lower limit switches are connected to the 9 pin “D” connector. These switches are normally closed switches that open when the limit is reached. The upper limit switch connects between pins 5 &... - Page 18 Sensor OHC Operation and Set Up Guide This second external height set point could be useful to provide an independent pierce or preheat height. By using the digital input “Second Height Select”, it is possible to rapidly switch between normal height and second height while in motion. Another use for the second set height would be to effectively disable the control unit front panel height set point pot.
-
Page 19: Standard Wiring Installation
Section 3: Installation and Set Up Standard Wiring Installation... -
Page 20: Io Interfacing
Sensor OHC Operation and Set Up Guide IO Interfacing The attached figure shows the details of connecting the IO to external switches, relays, transistors, and other circuitry. The figure shows examples using the available isolated +12V source and using an external voltage source. -
Page 21: Dip Switch Setup
Section 3: Installation and Set Up DIP Switch Setup DIP Switches Sensor Cable Length cable length = 500 mm cable length = 800 mm cable length = 900 mm cable length = 1000 mm * cable length = 1200 mm cable length = 1500 mm In Position 0utput in Manual Mode Normal - active output near height set point*... -
Page 22: Calibration Procedure
Sensor OHC Operation and Set Up Guide Calibration Procedure Calibration LED Height Set Point Calibration Pot Calibration Instructions 1) Install the torch and sensor ring with torch tip aligned with the bottom edge of the sensor. Ensure that all DIP switches are correctly set for cable length, lifter speed, and sensitivity, and max motor current (see DIP Switch Set Up). -
Page 23: Component List
Section 3: Installation and Set Up Component List Optional Sensor Cables Part Number Description CONN-0141 MATING CONNECTOR KIT CABL-0163 AR-300/100 CONVERSION ADAPTER CABLE CABL-0157 COAX CABLE, 0.5M CABL-0158 COAX CABLE, 0.8M CABL-0159 COAX CABLE, 1.0M CABL-0160 COAX CABLE, 1.2M CABL-0161 COAX CABLE, 1.5M... - Page 24 Sensor OHC Operation and Set Up Guide Connector Kit (CONN-141) Components...
- Page 26 Printed in the USA MANU-0044...
