3.4.4 Panel Setting

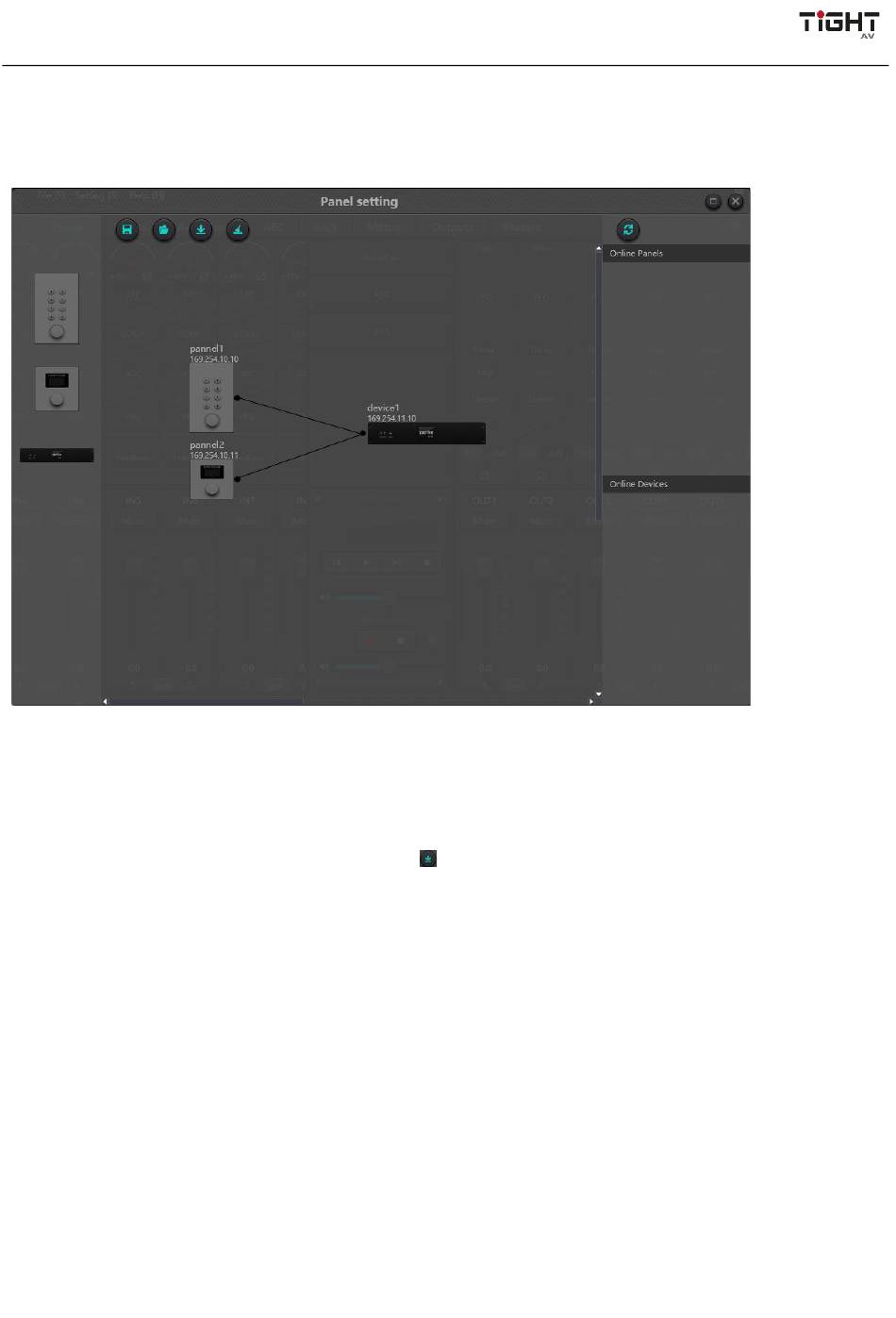

Panel configuration page for button and OLED panels. Use network cables to connect multiple physical panels with DSP device
via Ethernet.
Offline device: Panels can be configured offline for later upload on-site.
Drag offline device from the sidebar to panel design area and double click to edit it.
Note the small circle on both panel and device. Click the circle and draw a line between the units to establish the connection
between panel and the DSP device to be controlled.
Double click the panel in design area to enter panel configuration interface.
After finishing configuration, click the toolbar download icon
OLED panel:
The OLED panel consists of a 1.3" OLED screen and a knob. The panel functions are added in a list, and a single encoder is
used for selecting the function and parameter adjustment.
Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB
to download the panel configuration to hardware.
