TiGHT AV DSP-AEC-1010-DA Manual

Audio dsp with aec
Hide thumbs Also See for DSP-AEC-1010-DA:
Table of Contents

Advertisement

Quick Links

Download this manual

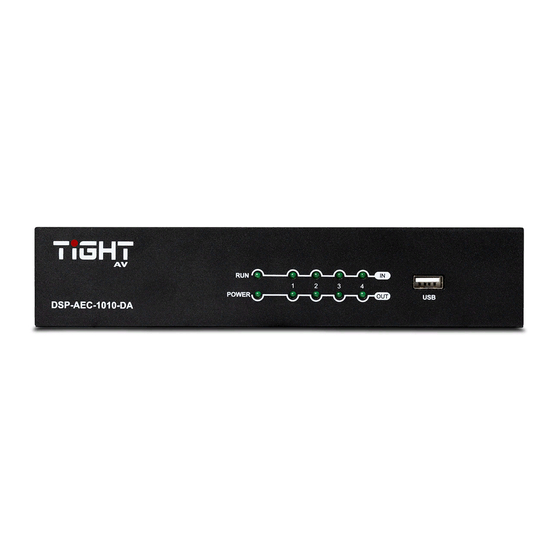

DSP-AEC-1010-DA
Audio DSP with AEC
4-in/4-out analog, 4-in/4-out Dante and USB
All Rights Reserved
Version: DSP-AEC-1010-DA_2021V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP-AEC-1010-DA and is the answer not in the manual?

Questions and answers

Related Manuals for TiGHT AV DSP-AEC-1010-DA

Summary of Contents for TiGHT AV DSP-AEC-1010-DA

  • Page 1 DSP-AEC-1010-DA Audio DSP with AEC 4-in/4-out analog, 4-in/4-out Dante and USB All Rights Reserved Version: DSP-AEC-1010-DA_2021V1.0...
  • Page 2 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till Sep 2021.

  • Page 3: Table Of Contents

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Table of contents 1. Technology Overview ................................5 1.1 Introduction to Technology ..............................5 1.2 About Dante AES67 ................................5 1.3 Audio Input Section ................................5 1.4 Audio Output Section ................................5 1.5 Floating Point DSP ................................
  • Page 4 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.4 Setting Menu ..................................23 3.4.1 File Menu ..................................23 3.4.2 Device Setting ................................24 3.4.3 Group Setting ................................. 24 3.4.4 Panel Setting .................................. 25 3.4.5 Dante Setting ................................. 26 3.4.6 Help Menu ..................................

  • Page 5: Technology Overview

    USB-audio as an interface for computers. Tight AV DSP 1.0 is a Windows-based application used to configure and control the DSP hardware. An easy-to-use GUI gives the user fast access to all the available processing functions. The unit has 16 built-in presets that can store the complete configuration for later recall.

  • Page 6: Floating Point Dsp

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 1.5 Floating Point DSP The signal processing is done in an Analog Devices SHARC DSP, enabling 32-bit and 40-bit floating-point processing. Floating- point processing provides advantages for the users in terms of sound quality and usability. With floating point processing the internal calculations of the DSP will have higher dynamic range and avoid rounding errors that can be a cause of noise.

  • Page 7: Hardware

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 2. Hardware 2.1 Safety Instructions Safety Instructions Important safety instructions: Read these instructions. Keep these instructions well. Pay attention to all warnings. Follow all instructions. Please keep the device away from water. The device shall not be exposed to water drips or water splashes; make sure that there is no object with liquid near the device, such as vase.

  • Page 8: Audio Wiring Reference

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 2.2 Audio Wiring Reference Balanced Connection Any of these interfaces may occur on both sides of the connection. Note: For one XLR interface, the female connects to the output device and the male connects to the input device. Unbalanced Connection RCA interface and 1/4-inch TS interface are unbalanced interfaces.

  • Page 9: Specifications

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 2.3 Specifications Processor ADI SHARC 21489 Sample rate/bit depth 48kHz/24bit Input gain steps 0/6/12/18/24/30/36/42/48dB Phantom Power Frequency Response (20Hz~20KHz) ±0.5dB Maximum Level +18dBu THD + Noise 0.003%@4dBu Dynamic Range 110dB Background Noise (A-weighted) -91dBb Common Mode Rejection Ratio @60Hz...

  • Page 10: Mechanical Data

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 2.4 Mechanical Data Space required: 1U (W x D x H: 215 x 162 x 44mm). At least 70mm should be reserved for the connections on the rear panel. Reserved depth depends on the wire used and the connection mode.
  • Page 11 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Power Source: Power connector: 12V DC / 2A Dante/PoE 100 Base-T Ethernet connector, provide up to 8 (4x4) channel Dante network audio. Uses the UltimoX4 chip. This interface is also used for communication with PC software and any third-party external controller. Dante 100 Base-T Ethernet connector, switched network interface (not for redundant Dante use) RS485...

  • Page 12: Software

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3. Software 3.1 Software Installation A Windows PC with a processor of 1 GHz or higher and: Windows 7 or higher version. 1 GB free storage space. 1024 x 768 resolution. 24 bit or higher color.

  • Page 13: Audio Parameters

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Click “Connect” to match the device on the network with the unit in the open tab in the software. One processor supports simultaneous connection and control of up to four users. In the “Device List”...

  • Page 14: Expander

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.3.2 Expander The expander will reduce the signal level by the selected ratio when the signal goes below the threshold. Fig.3.2 Expander expander has the following control parameters: Threshold: The expander is active when the signal goes below this threshold. Ratio: Refers to the slope below the threshold point on the gain curve.

  • Page 15: Auto Gain Control

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Attack & Release Time: Refers to the time required to activate the compressor when the signal goes above the threshold. Output Gain: Used to compensate for the gain reduction in the compressor. G.R.

  • Page 16: Equalizers

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB When the signal level is lower than the threshold, the input-to-output ratio is 1:1. When the Threshold: signal level is higher than the threshold, the input-to-output ratio changes with the ratio control settings. The threshold should be set just above the background noise level to avoid amplification of the noise.

  • Page 17: Feedback Filters

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.3.6 Feedback filters After setting proper levels for microphone and speakers, the feedback filter section can be used as a secondary precaution to avoid unwanted feedback. The traditional methods should still be used, such as limiting the number of open microphones, minimizing the distance between sound source and microphone, good distance between the microphone and loudspeakers, and equalizing the room speakers to get a flat response.

  • Page 18: Automixer

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Filter Mode: Each feedback filter has three modes: dynamic, manual and fixed. When manual mode is set, the gain can also be manually set. When Fixed mode is set, the filter always works and will not be occupied by new feedback points; it still works when being rebooted.

  • Page 19: Acoustic Echo Cancellation (Aec)

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB (2) Channel control parameters AutoMixer: Each channel has an automix on/off button which must be turned on for channels to participate in the automix. Mute: Both channel mute and fader are behind auto gain. If the channel level is increased, the gain level of other channels may also be reduced even if the channel mute is on.

  • Page 20: Automatic Noise Suppression (Ans)

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.3.9 Automatic Noise Suppression (ANS) The Noise suppression module can remove noise from the microphone signal. To use the ANS, the direct routing of the microphone input channel should be disabled, and the output of the ANS should be routed to the selected destination in the matrix.

  • Page 21: High & Low Pass Filter

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.3.11 High & Low Pass Filter The output channels have high- and low-pass filters. Each filter has four parameters: Frequency: The cut-off frequency of filters. The cut-off frequency of Bessel and Butterworth is defined at -3 dB, and the cut-off frequency of Linkwitz-Riley is defined at -6dB.

  • Page 22: Usb Soundcard

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB To link several outputs with a common mute and gain control, right-click the output fader and select the Group setting. 3.3.14 USB Soundcard The USB soundcard can record and playback sound from a computer. Useful for music playback, recording and teleconferencing using computers.

  • Page 23: Setting Menu

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB File playback from computer may be organized in a playlist. Add files to playlist with the + button next time. Add files to playlist with the at the bottom and save it with the disk icon. Press to clear the playlist and to enter soundcard settings.

  • Page 24: Device Setting

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.4.2 Device Setting Information like device name, network address and serial port baud rate can be set in the device settings. Maximum length of the device name is 16 characters. Default preset: Two start-up preset modes are available for selection.

  • Page 25: Panel Setting

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.4.4 Panel Setting Panel configuration page for button and OLED panels. Use network cables to connect multiple physical panels with DSP device via Ethernet. Offline device: Panels can be configured offline for later upload on-site. Drag offline device from the sidebar to panel design area and double click to edit it.

  • Page 26: Dante Setting

    Use the Dante Controller software for routing and configuration of the Dante inputs and outputs. The TiGHT AV DSP can interface with other Dante devices operating at 48kHz sampling frequency. Click the crosspoint between transmitting and receiving device to establish a subscription of the audio stream on the network.

  • Page 27: Help Menu

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 3.4.6 Help Menu About Display software version Document Display help file Central Control command This is a tool used to find the string for use with a 3rd party controller. Open central control command window and click parameters to be controlled on interface, then the window will display the current command.

  • Page 28: Control Protocol

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 4.2 Control Protocol Because of historical reasons, the latest control protocol adopts variable-length and is fully compatible with old fixed-length control protocols. In protocols, the fourth byte is used to distinguish versions. 0- indicates V1 version (previous versions) and 1- indicates V2 version (current protocol version).
  • Page 29 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 1. Parameter Control (0x21) At this point, the formats of data section are as follows. byte5 byte6 byte7 byte8 byte9~72 Input/Output Start Channel End Channel Parameter Type Parameter Value byte5: It indicate control input or output channel, 0x2- input channels and 0x1-output channels byte6-7: They indicate start and end channel numbers.

  • Page 30: Serial Port-To-Udp (Rs232 To Udp)

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Central control replies: byte5 byte6 byte7 byte8 byte9 Control Type Reserved Reserved Reply Switch Data Length Byte5 controlling type is 4. The data length of byte6 is 1. When byte9 is 1, it means turning on central control replies switch; and 0 means turning off replies. 4.3 Serial Port-to-UDP (RS232 To UDP) DSP devices support RS232 translating into UDP.
  • Page 31 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Appendix A: Module ID Distribution Module Name Module Name Output Channel 1-32 High & Input source 167~198 Low Pass Input Channel 1-32 Expander 1~32 Output Channel 1-32 Equalizer 199~230 Input Channel 1-32 Compressor 33~64 Output Channel 1-32 Delayer 231~262...

  • Page 32: Appendix B: Module Parameter Types (1)

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Appendix B: Module Parameter Types (1) Module Parameter Description Module Parameter Description Name Type Name Type Input Gain Output 0x10 Gain Compensation Source Mute 0x11 Link Sensitivity 0x12 Channel Level Phantom Power Switch Gain Signal Generator Type...
  • Page 33 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Delayer Bypass Switch Threshold Millisecond Ratio Microsecond Setup Time Equalizer Total Equalizer Switch Release Time Child Segment Switch Compressor Compressor Switch Frequency Compressor Threshold Gain Compressor Ratio Q Value Setup Time Type Recovery Time Gain Compensation...

  • Page 34: Appendix B: Module Parameter Types (2)

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Appendix B: Module Parameter Types (2) Module Parameter Description Module Parameter Description Name Type Name Type Feedback Mixer Mixer Switch Switch Inhibition Mixer Gain Feedback Point Frequency High & High Pass Switch Feedback Point Gain Low Pass High Pass Type...
  • Page 35 Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB Noise Noise Response Time Suppression Suppression Switch Channel Auto Switch Noise Suppression Mode System Channel Mute System Mute Control Channel Gain System Gain Priority Auto Mix Switch -35-...

  • Page 36: Customer Service

    Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB 5. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty We provide limited warranty for the product within five years counting from date of purchase (The purchase invoice shall prevail).
