- Page 1 User Manual EDU-H201AUC-KIT Multi-function AV Distribution System All Rights Reserved Version: EDU-H201AUC-KIT_2019V1.0...
- Page 2 Multi-function AV Distribution System Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 Multi-function AV Distribution System SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 4: Table Of Contents
Multi-function AV Distribution System Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 2 2. Specification ....................... 3 2.1 EDU-TX1 Transmitter ..................3 2.2 EDU-RX1 Receiver .................... 4 2.3 EDU-PAD1 Control Panel .................. 5 3. -
Page 5: Product Introduction

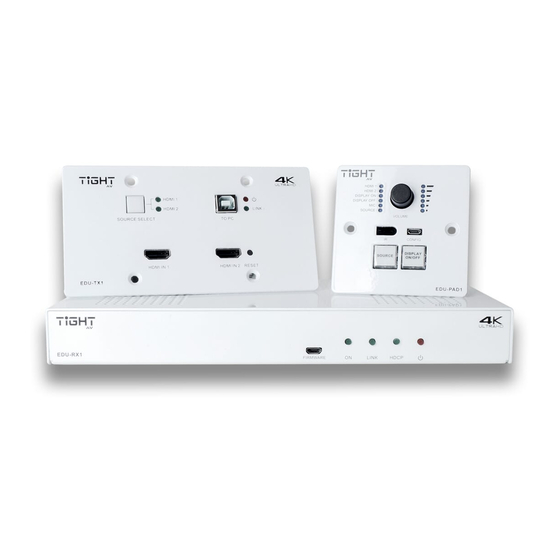

Multi-function AV Distribution System 1. Product Introduction The EDU-H201AUC-KIT is a multi-function AV distribution system designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of K12-TX1-4K HDBaseT Transmitter, EDU- RX1 HDBaseT Receiver and K12-PAD1 Control Panel. -
Page 6: Package List
Multi-function AV Distribution System 1.2 Package List Transmitter 1x EDU-TX1 Scaler Wall Plate HDBaseT Transmitter 1x EDU-RX1 HDBaseT Receiver 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x 4-pin Terminal Block Receiver 3x 3-pin Terminal Blocks ... -
Page 7: Specification
Multi-function AV Distribution System 2. Specification 2.1 EDU-TX1 Transmitter Video Video Input (1) HDMI IN 1, (1) HDMI IN 2 Video Input Connector (2) 19-pin type-A female HDMI Video Output (1) PoC IN/HDBT OUT, (1) POWER/RS232 Video Output Connector (2) RJ45 Control Control Port (1) TO PC, (1) FIRMWARE... -
Page 8: Edu-Rx1 Receiver
Multi-function AV Distribution System 2.2 EDU-RX1 Receiver Video Video Input (1) HDBT IN/PoC Video Input Connector (1) RJ45 Video Output (1) TO DISPLAY Video Output Connector (1) 19-pin type-A female HDMI Audio Audio Input (1) MIC Audio Input Connector (1) 3-pin terminal block Audio Output (1) 2x20Watt@4Ω, (1) LINE OUT Audio Output Connector... -
Page 9: Edu-Pad1 Control Panel
Multi-function AV Distribution System 2.3 EDU-PAD1 Control Panel Port (1) CONFIG, (1) POWER/RS232 Program Port (1) Type-A USB, (1) RJ45 Output Port (1) Volume Knob, (2) Buttons (SOURCE, DISPLAY ON/OFF), (1) Other Built-in IR sensor Operation Temperature -5~ +55℃ Storage Temperature -25 ~ +70℃... -
Page 10: Panel Description
Multi-function AV Distribution System 3. Panel Description 3.1 EDU-TX1 Transmitter HDMI 1 HDMI 2 LINK SOURCE SELECT TO PC HDMI IN 1 HDMI IN 2 RESET ① SOURCE SELECT: Blue-backlit button for source selection. ② HDMI IN 1 LED: Illuminates yellow when the HDMI source device is connected to the HDMI input 2 port or green when the HDMI source is selected as input. -
Page 11: Edu-Rx1 Receiver
Multi-function AV Distribution System 3.2 EDU-RX1 Receiver LINK HDCP FIRMWARE NETWORK INPUT OUTPUT CONTROL AUDIO FROM REMOTE TCP/IP HDBT IN/PoC TO DISPLAY TOUCHSCREEN IR OUT RS232 LINE OUT LINE DC 24V 2x20Watt Ω MUTE ① FIRMWARE: Micro-USB port for firmware upgrade. ②... - Page 12 ⑩ REMOTE MUTE: Connects to fire alarm system. When the fire alarm signal input, Multi-function AV Distribution System the audio output will be set to mute. ⑪ LINE OUT: Connects to an audio broadcast device to output HDMI embedded audio and MIC audio in mixed mode. In additional, the port can be connected to a sound recorder for sound recording.
-
Page 13: Edu-Pad1 Control Panel
Multi-function AV Distribution System 3.3 EDU-PAD1 Control Panel HDMI 1 HDMI 2 DISPLAY ON DISPLAY OFF SOURCE VOLUME POWER CONFIG RS232 DISPLAY SOURCE ON OFF ① LED indicators: HDMI 1: Illuminates blue when the HDMI input 1 source is selected. ... -
Page 14: System Connection
Multi-function AV Distribution System 4. System Connection Note: Connect HDBT ports via solid core CAT5e/6 cable with TIA/EIAT568B standard terminations at both ends. The distance is less than 40m at 4K or 70m at 1080p between transmitter and receiver. -
Page 15: Speaker Wiring Configurations
Multi-function AV Distribution System 4.1 Speaker Wiring Configurations 4Ω Load with 4Ω speakers: 4Ω Load with 8Ω Speakers:... -
Page 16: Poc Connection
Multi-function AV Distribution System 4.2 PoC Connection The system supports PoC, which allows several terminals share the same power supply and eliminates the need for extra power supply at the remote nodes. Connect a 24V DC power adapter to the power port of receiver, the transmitter and control panel can be energized synchronously with PoC solution, see the picture below: HDMI 1 HDMI 2... -
Page 17: Ir Connection
Multi-function AV Distribution System 4.4 IR Connection The control panel provides a built-in IR sensor and the receiver provides an IR OUT port for IR pass-through control. Connect IR emitter to the IR OUT port of the receiver, and then put the IR emitter close to the display device (e.g. Projector), and put the IR remote of display device close to the built-in IR sensor, the display device can be controlled by pressing IR remote. -
Page 18: Rs232 Connection
Multi-function AV Distribution System 4.5 RS232 Connection The receiver provides an additional RS232 interface to connect the display device, and then the display device can be controlled by sending RS232 commands via GUI. Please refer to 5.3.3 Command Tab. CAT5e 6A Cable 30m HDMI 1 HDMI 2 LINK... -
Page 19: System Operation
Multi-function AV Distribution System 5. System Operation 5.1 IR Learning The IR learning function allows user to use the buttons of control panel to displace some keys of IR remote which can control display device or other devices. The control panel has two buttons: SOURCE and DISPLAY ON/OFF, but the SOURCE button does not support IR learning function, because it is designed for source selection. -
Page 20: Button Control
Multi-function AV Distribution System 5.2 Button Control Select Input Source Press the HDMI 1 or HDMI 2 button on the control panel to select the appropriate source device. Press the SOURCE SELECT button on the transmitter to switch input source. Power On and Off the Display ... -
Page 21: Gui Control
Multi-function AV Distribution System 5.3 GUI Control The web browser control interface is an alternative method to control the system without having to interact with the control panel. The default IP address of the transmitter is 192.168.0.178. This can be changed in the Network settings by an administrator. -
Page 22: Device Control Tab
Multi-function AV Distribution System 5.3.1 Device Control Tab HDMI Switch between HDMI input 1 and HDMI input 2. DISPLAY Turn the display on or off. SYSTEM Turn the system on or off. VOLUME Mute or unmute MIC and SOURCE audio. Volume may be changed by pressing the “+” or “-”... -
Page 23: Setting Tab
Multi-function AV Distribution System 5.3.2 Setting Tab To enter the configuration settings, click on the gear icon on the lower left corner of the control interface. PASSWORD Change the password for the admin and user login screen. DISPLAY CONTROL SELECT Select whether the display will be controlled via IR or RS232. -
Page 24: Command Tab (Rs232 Display Control)
Multi-function AV Distribution System LABEL Rename the label at the top of the control screen. AUDIO DELAY Set up the audio delay to sync the audio with the video on the display device. The delay time is 0 to 340 ms. Click the GO button to activate the new value. Save/Cancel Save or cancel setting. - Page 25 Multi-function AV Distribution System Display Off Enter the RS232 command to turn off the display. Input Select Enter the RS232 command to switch to the input which is connected to the receiver. Input Select Delay Enter the delay time in seconds between the Power On and Input Select commands. This delay may be between 1 and 100 seconds.
-
Page 26: Network Tab
Multi-function AV Distribution System 5.3.4 Network Tab DHCP/STATIC IP Select whether the system will use a static IP or will be provided an IP via DHCP. IP Address Enter the IP address for the system. Subnet Mask Enter the subnet mask for the system. Gateway Enter the gateway address for the system. -
Page 27: Gui Upgrade
Multi-function AV Distribution System 5.3.5 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click “Administration”... -
Page 28: Tcp/Ip Control
Multi-function AV Distribution System 5.4 TCP/IP Control The system can be controlled over a network connection. A TCP/IP communication software (e.g. TCP&UDP) needs to be installed on the control PC. After installing the control software, create a connection according the below parameters: Default IP-Address: 192.168.0.178 Default Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1... -
Page 29: Copy And Load Control Settings
Multi-function AV Distribution System 5.5 Copy and Load Control Settings The system IR or RS232 configuration can be copied to a USB thumb drive and loaded into additional systems or be saved as a backup. Copy Control Setting 1) Insert a 4GB or smaller FAT32 formatted thumb drive into the CONFIG port on the control panel.
