2.4 Mechanical Data

Space required:
1U (W x D x H: 215 x 162 x 44mm).
At least 70mm should be reserved for the connections on the rear panel. Reserved depth depends on the wire used and the
connection mode.
Ventilation:
The recommended highest operating ambient temperature is 30℃ / 86℉.
Make sure that there is no blockage of the venting holes on both sides of the unit. A gap of at least 5cm shall be reserved).
Electrical Property:
The unit can be powered by PoE (802.3af) or with a 12V power adapter.
Universal input power adapter: AC110~240V 5Hz-60Hz, 12V DC / 2A output.
Shipping Weight:
(2 kg)

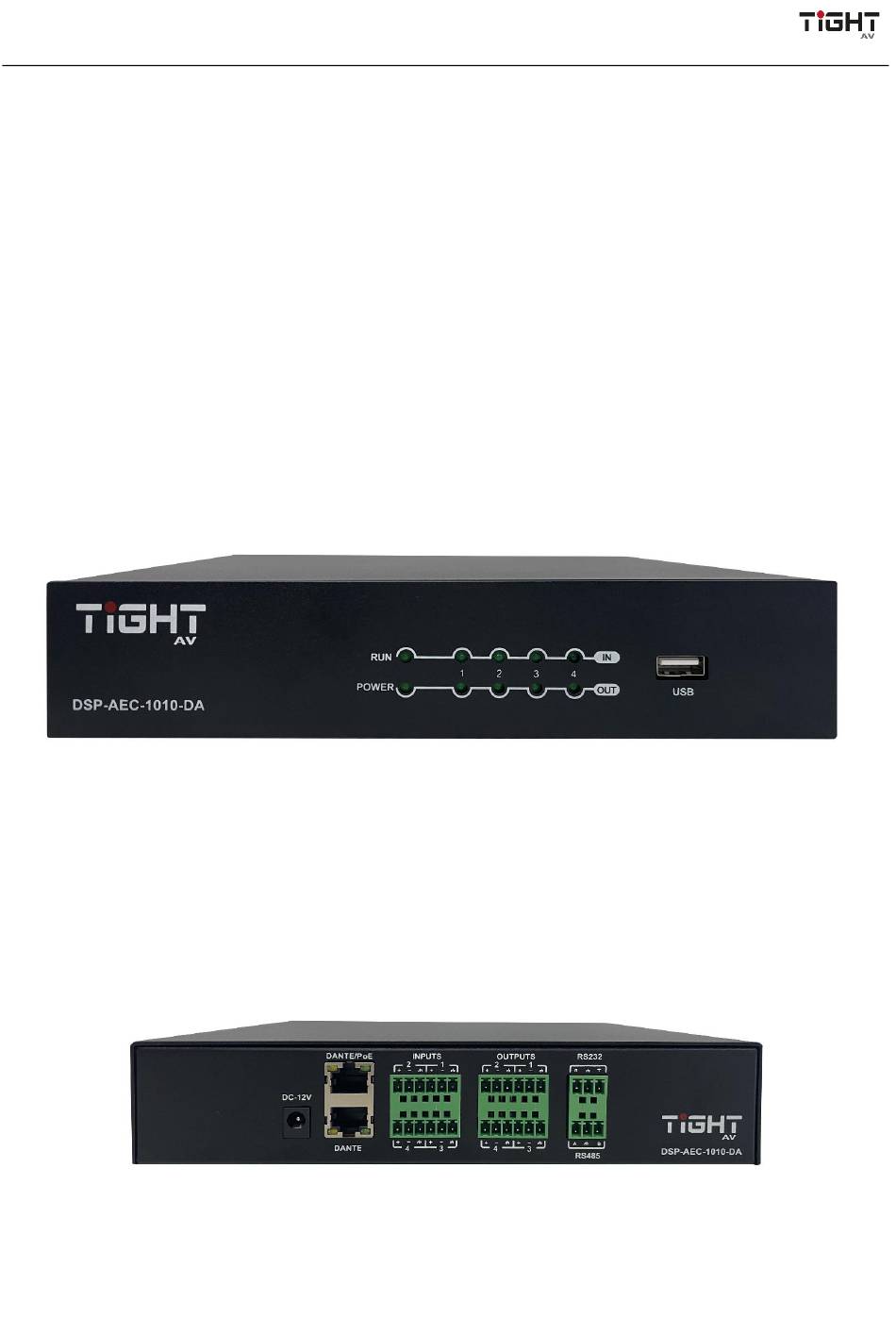

2.5 Front Panel

Power: LED power indicator.
Run: The operation status indicator of the device.
USB AUDIO: USB soundcard for recording and playback from computer.

2.6 Rear Panel

Audio DSP with AEC, 4-in/4-out analog, 4-in/4-out Dante and USB
