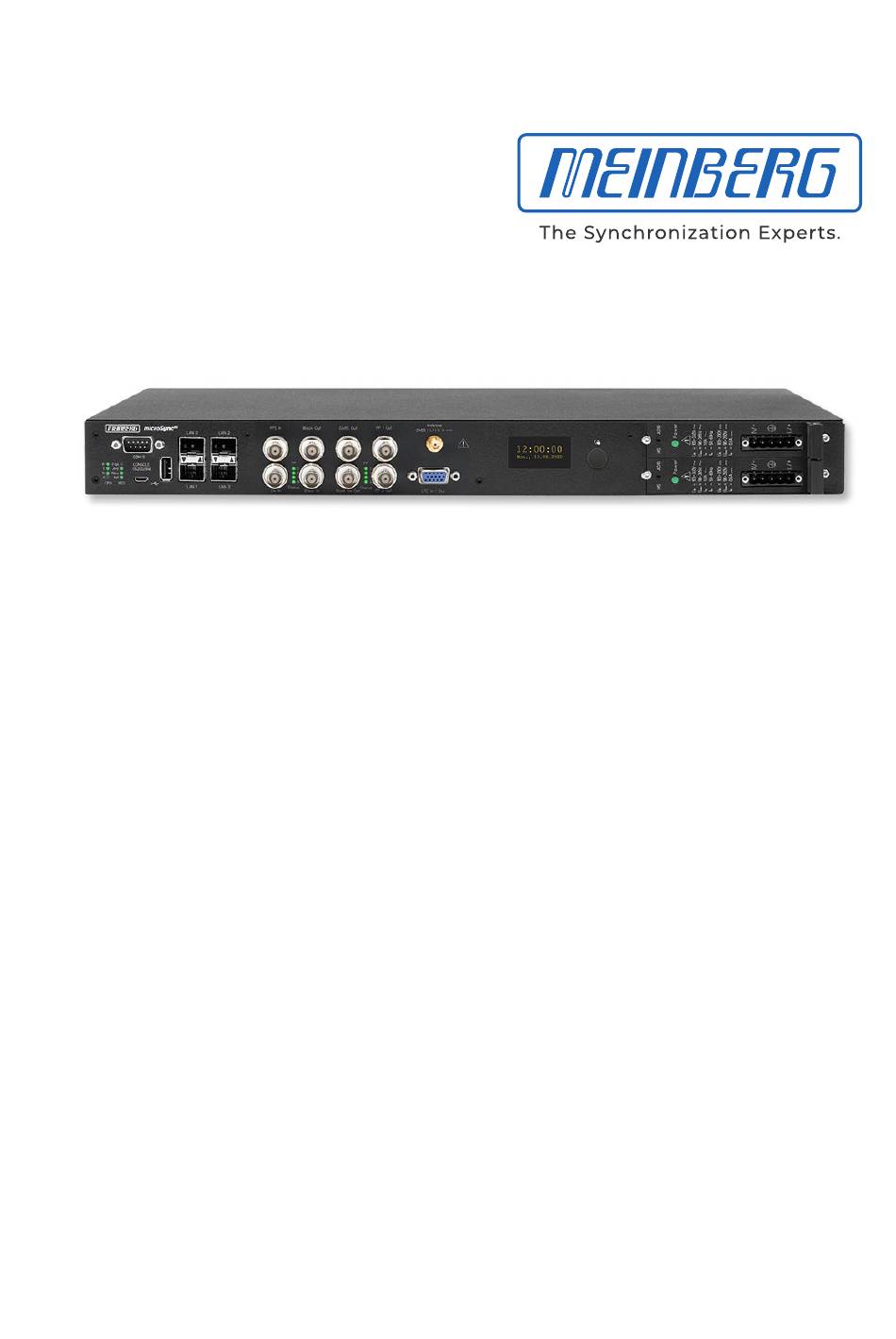

TECHNICAL REFERENCE
microSync
RX800/AD10DC20
January 7, 2022
Meinberg Funkuhren GmbH & Co. KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the microSync RX800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meinberg microSync RX800

Summary of Contents for Meinberg microSync RX800

  • Page 1 TECHNICAL REFERENCE microSync RX800/AD10DC20 January 7, 2022 Meinberg Funkuhren GmbH & Co. KG...

  • Page 3: Table Of Contents

    4.11 Return of Electrical and Electronic Equipment ......5 microSync RX800/AD10DC20 Connectors AC/DC Power Supply .
  • Page 4 Protocols and Profiles ..........Compliances .

  • Page 5: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com...

  • Page 6: Microsync Introduction

    • High performance (S)NTP server • Redundant power supply • Different Oscillator options for advanced holdover performance • Meinberg Device Manager for configuration and status monitoring • Three-year manufacturer‘s warranty • Unlimited technical support including firmware updates Date: January 7, 2022...

  • Page 7: Technical Specifications Microsync Chassis

    3 Technical Specifications microSync Chassis 3 Technical Specifications microSync Chassis Protection Rating: IP30 Temperature Range (Operation) 0 ... 50 C (32 ... 122 F) Temperature Range (Storage) -20 ... 70 C (-4 ... 158 F) Relative humidity 5 to 95% (non-condensing) at 40 C (104 F). (Operation) Operating Altitude: up to 4,000 m (13,123 ft) above sea level...

  • Page 8: Important Safety Information

    4 Important Safety Information 4.1 Important Safety Instructions and Protective Measures The following safety instructions must be observed whenever the device is being installed or operated. Failure to observe safety instructions and other special warnings and operating instructions in the product manuals constitutes improper usage and may violate safety standards and the manufacturer’s requirements.

  • Page 9: Used Symbols

    4 Important Safety Information 4.2 Used Symbols The following symbols and pictograms are used in this manual. Pictograms are used in particular to indicate potential hazards in all hazard categories. Symbol Beschreibung / Description IEC 60417-5031 Gleichstrom / Direct current IEC 60417-5032 Wechselstrom / Alternating current IEC 60417-5017...
  • Page 10 The product manuals are provided on a USB flash drive delivered with the system. The manuals can also be downloaded from the Meinberg website at https://www.meinbergglobal.com, where you can enter your system name into the search box at the top of the page to find the relevant manual. Alternatively, contact Meinberg Support for further assistance.

  • Page 11: Safety During Installation

    4 Important Safety Information 4.3 Safety during Installation WARNING! Pre-Operation Procedures and Preparation for Use This mountable device has been designed and examined in accordance with the requirements of the standard IEC 62368-1 "Audio/Video, Information and Communication Technology Equipment - Part 1: Safety Requirements". When the mountable device is to be used as part of a larger unit (e.g., electrical enclosure), there will be additional requirements in the IEC 62368-1 standard that must be observed and complied with.
  • Page 12 = 90 - 250 V Faulty shielding or cabling and improperly connected plugs are a health & safety risk (risk of injury or death due to electrical shock) and may damage or even destroy your Meinberg device or other equipment.
  • Page 13 4 Important Safety Information AC Power Supply DC Power Supply The device is a Protection Class 1 device and In accordance with IEC 62368-1, it must be • • may only be connected to a grounded outlet possible to disconnect the appliance from the (TN system).

  • Page 14: Safety Information On Sfp Modules

    fiber optic or electrical connection. The safety information below must be read and heeded before installing an SFP module in a Meinberg device, before setting up a Meinberg device equipped with SFP modules for use, or before performing maintenance on such a Meinberg device.

  • Page 15: Connection Of Protective Earth Conductor/Grounding

    4 Important Safety Information 4.5 Connection of Protective Earth Conductor/Grounding ATTENTION! In order to ensure that the device can be operated safely and to meet the requirements of IEC 62368-1, the device must be correctly connected to the protective earth conductor via the protective earth connection terminal.

  • Page 16: Safety During Maintenance

    4.7 Safety during Maintenance WARNING! When you are expanding the device, use only device parts that are approved for the system. Non-observance may result in injury to the EMC or safety standards and cause malfunction of the device. If device parts, which are released for the system, are extended or removed there may be a risk of injury in the area of the hands, due to the pull-out forces (approx.
  • Page 17 The battery is used to power components such as the RAM and the reserve real-time backup clock for the reference clock. If the battery voltage drops below 3 V DC, Meinberg recommends having the battery replaced. If the battery voltage drops below the specified minimum, the following behavior may be observed in the reference clock: •...

  • Page 18: Cleaning And Care

    4.9 Cleaning and Care ATTENTION! Never clean the device using liquids! Water ingress is a significant safety risk for the user (e.g., electric shock). Liquids can cause irreparable damage to the electronics of the device! The ingress of liquids into the device chassis may cause short circuits in the electronic circuitry. Only clean with a soft, dry cloth.

  • Page 19: Return Of Electrical And Electronic Equipment

    When disposing of your old equipment, please use the national return or collection systems available to you. Alternatively, you may contact Meinberg, who will provide further assistance. The return of electronic waste may not be accepted if the device is soiled or contaminated in such a way that it potentially presents a risk to human health or safety.

  • Page 20: Microsync Rx800/Ad10Dc20 Connectors

    5 microSync RX800/AD10DC20 Connectors 1 17 1 1 1 1 1 1 1 15 1 13 1 11 5.1 AC/DC Power Supply Hotplug It is possible to remove or install power supplies from the system housing during operation. Required Tools •...
  • Page 21 The status LED of the new power supply should now light up. The "OK" status must be displayed in the system’s web interface. Checking Power Status The status of the power supplies can be observed in the program Meinberg Device Manager under "Status System Status". microSync...
  • Page 22 AD10 - AC/DC Power Supply Connector Type: 5-pol. DFK Pin Assignment: 1: N/- 2: not connected 3: PE (Protective Earth) 4: not connected 5: L/+ Input Parameter ———————————————————————————— Nominal Voltage Range: 100-240 V 100-200 V Maximum Voltage Range: 90-265 V 90-250 V Nominal Current: 1.0 A...
  • Page 23 5 microSync RX800/AD10DC20 Connectors DC20 - DC Power Supply Connector Type: 5pin DFK Pin Assignment: 1: not connected 2: V 3: PE (Protective Earth) 4: V 5: not connected Input Parameter ———————————————————————————— Nominal Voltage Range: 24-48 V Maximum Voltage Range:...

  • Page 24: Microsync Oled Display

    (Devman), which should support all current functions, and the commit value, which is an internal identification for the software, are displayed. Target : 0x310 • System type - e.g.: microSync RX800/AD10DC20 Devman : 6.2 • SN - serial number Commit : 86AD960 •...
  • Page 25 figuration made via the display has been changed externally. This case occurs if e.g. the IP address, DHCP On which was configured via the display, is changed by (*) external changed using the Meinberg Device Manager later. IP Address: 166.030.044.002/16 Gateway: • DHCP - On / Off...

  • Page 26: Gnss Antenna

    5.3 GNSS Antenna Antenna type Multi GNSS L1 antenna with integrated lightning protection Receiver type 72-channel GPS/Galileo/Glonass/ Beidou Frequency band L1 / E1 / B1 , 1575.42 +- 10 MHz / 1602-1615 MHz Signal gain 40 dB Antenna gain: 3.5 dBic / 3 dBic DC Voltage: 5 V (power supply via antenna cable)

  • Page 27: Ltc/Gpio

    5 microSync RX800/AD10DC20 Connectors 5.4 LTC/GPIO Signal: LTC-Reader (25 fps) Signal level: TTL; 2,5 V (MARK/SPACE) at 50 Ohm Pin Assignment: LTC out - LTC symmetric Lo Pot. Output LTC_out + LTC symmetric HI Pot. Output LTC_in + LTC symmetric HI-Poti. Input LTC in - LTC symmetric Lo Pot.

  • Page 28: Status Leds - Vsg Signals

    5.6 Status LEDs - VSG Signals Status indicator LED St: Status of the internal VSG LED In: Synchronization status LED A: Status of the blackburst output LED B: Status of the LTC output The status messages of the LEDs result as follows:. LED St: Blue During initialization...

  • Page 29: Dars Input

    5 microSync RX800/AD10DC20 Connectors 5.7 DARS Input Output signal: DARS Signal level: TTL; 2.5 V into 75 ohms Signal type: Base frequencies: 44.1 kHz and 48 kHz Connection type: BNC female connector Cable: Coaxial cable, shielded 5.8 Word Clock Output...

  • Page 30: Blackburst Input

    5.9 Blackburst Input Input Signal Black Burst (PAL) Input with VITC Reader Input with Prescaler mode (Frequency only) Signal level: 300 mV into 75 ohms (unbalanced) Time Code Formats: PAL SMPTE259M / ITU-R BT.470-6 SMPTE12M-1 / SMPTE ST309M Connection type: BNC female connector Cable: Coaxial cable, shielded...

  • Page 31: Status Leds - Input Signals

    5 microSync RX800/AD10DC20 Connectors 5.11 Status LEDs - input signals Status indicator LED B: Status of the blackburst input signal. LED L: Status of the LTC input signal LED C: Status of the Word Clock input signal LED P: Status of the PPS input signal The status messages of the LEDs are as follows:.

  • Page 32: Status Leds - Input Signals

    5.12 Status LEDs - input signals Status indicator LED B: Status of the blackburst input signal. LED L: Status of the LTC input signal LED C: Status of the Word Clock input signal LED P: Status of the PPS input signal The status messages of the LEDs are as follows:.

  • Page 33: Pulse Per Second Input

    5 microSync RX800/AD10DC20 Connectors 5.13 Pulse Per Second Input Input signal PPS (pulse per second) Signal level: Pulse lenght: 5 s, active high Connection type: BNC, female Cable: Coaxial cable, shielded 5.14 Word Clock Input Input signal: Word Clock Input with...

  • Page 34: Usb Interface

    Available SFP Modules SFP Tranceivers Recommended and Tested by Meinberg Output Type Manufacturer Designation Multi Mode: Avago AFBR-5710PZ Finisar FTLF8524P3BNL Single Mode: Avago AFCT-5710PZ Finisar FTLF1318P3BTL RJ-45: Avago ABCU-5740RZ Finisar FCLF8521P2BTL WARNING! Prevention of Eye Injuries Fiber optic SFP modules that are not compliant with the definition of a Ÿ...

  • Page 35: Status Indicators - Cpu And Receiver

    5 microSync RX800/AD10DC20 Connectors 5.17 Status Indicators - CPU and Receiver CPU: —————————————————————————– R (Receiver) green: The reference clock (e.g. build-in GNS) provides a valid time red: the reference clock does not provide a valid time T (Time Service) green: NTP is synchronized to the reference clock, e.g.

  • Page 36: Rs-232 Comx Timestring

    5.18 RS-232 COMx Timestring Data transfer: serial Baudrate/framing: 19200 / 8N1 (default) Time-string: Meinberg Standard (default) Assignment: Pin 2: RxD (receive) Pin 3: TxD (transmit) Pin 5: GND (ground) Connector: 9pin D-SUB male Cable: data cable (shielded) PC connector 1:1...

  • Page 37: Gnss Satellite Navigation

    6 GNSS Satellite Navigation 6 GNSS Satellite Navigation The GNS satellite receiver clock is designed to provide users with a high-precision time & frequency reference. This system, which can draw information from the satellites of the Russian GLONASS (GLObal NAvigation Satellite System), American GPS (Global Positioning System), European Galileo, and Chinese BeiDou sys- tems, is defined by its high precision and the ability to use it at any time, anywhere in the world.

  • Page 38: Time Zones And Daylight Saving Time

    6.1 Time Zones and Daylight Saving Time GPS System Time is a linear timescale that was synchronized with the international UTC timescale (Coor- dinated Universal Time) when the satellite system became operational in 1980. Since it has entered service, however, several leap seconds have been introduced to the UTC timescale to adjust UTC time to irregularities in the Earth’s rotation.

  • Page 39: Installation Of Gnss Antennas

    7 Installation of GNSS Antennas 7 Installation of GNSS Antennas Two different antennas are available for our combined GPS/GLONASS/Galileo/BeiDou satellite receivers that are each designed to fulfill different tasks or applications. The active Multi-GNSS L1 antenna is the standard accessory and can receive signals from the GPS, GLONASS, Galileo, and BeiDou satellite systems.
  • Page 40 Type-N (Male) If installed in a waterproof housing, the MBG S-PRO Type-N (Female) can be installed outdoors. However, Meinberg recommends installing the surge protector indoors—as closely to the entrance point of the antenna cable as possible—in order to minimize the risk of surge damage (such as that caused by lightning strike).
  • Page 41 7 Installation of GNSS Antennas Grounding Conductor To ground the antenna cable, connect the surge to Grounding Busbar protector to a grounding busbar using a grounding Conductor of diameter approx. conductor (see illustration). 1,5 mm, attached to surge protector Once installation is complete, connect the other As short as possible end of the antenna cable to the surge protector female connector.
  • Page 42 Optional Antenna Splitter Multiple receivers can be connected to one antenna using the antenna splitter. When doing so, be aware that the total distance, comprising the cable from the antenna to the splitter, and from there to the receiver, must not exceed the maximum cable length.

  • Page 43: Installation Of The Rv-76G Gps/Glonass Antenna For Mobile Applications

    7 Installation of GNSS Antennas 7.2 Installation of the RV-76G GPS/GLONASS Antenna for Mobile Applications Mounting the antenna Source: Datasheet gps-glonass_antenna_rv-76g_catalog_v1.pdf (Sanav) microSync Date: January 7, 2022...

  • Page 44: Starting Of Operation

    The software is delivered on the USB stick included in the scope of delivery and does not need to be in- stalled or copied on the PC. The Meinberg Device Manager can be started directly from the USB data carrier.

  • Page 45: Initial Network Configuration

    To configure a microSync system you need the Meinberg Device Manager software. This tool is provided on the supplied USB stick. You can always download the latest version from our website: https://www.meinbergglobal.com/english/sw/mbg-devman.htm...

  • Page 46: Network Configuration With The Mbgoswizard

    Manager software, for which you should use version 2.2 or better. Once a subunit (such as a microSync) has been configured using Meinberg Device Manager, it is no longer possible to use the mbgOSWizard to perform the initial network setup.

  • Page 47: Initial Start Of Operation

    8.2 Initial Start of Operation First install the Meinberg Device Manager software supplied on the USB stick. After the setup, start the program. If you do not want to perform a setup on your computer, you can start the portable version of the Meinberg Device Manager software directly on the USB stick: USB Drive/Software/MbgDevMan/mbgdev- man_portable/mbgdevman.exe.
  • Page 48 User and Password fields are already filled out. Silent Login You have the option that the Meinberg Device Man- ager does not ask for a user name and password every time you log in. Custom Alias Assign a custom alias for better identification of indi-...

  • Page 49: Technical Appendix

    Framing: 7E1, 7E2, 7N2, 7O1, 7O2, 8E1, 8N1, 8N2, 8O1 Default Setting: COM 0: 19200, 8N1 Meinberg Standard time string, per second Time Code Outputs: Unbalanced modulated sine wave signal: (MARK), 1 V (SPACE) into 50 PWM DCLS-signal: TTL into 50...
  • Page 50 GNS Receiver (GNS181) Type of receiver: GPS/GLONASS/Galileo/BeiDou receiver Number of channels: 72 Frequency band: GNSS L1 GPS: 1575.42 10 MHz GLONASS: 1602-1615 MHz Galileo: 1542.5 MHz BeiDou: 1561.09 MHz Antenna: Combined GPS/GLONASS antenna 3 dB Bandwidth: 1590 30 MHz Impedance: Gain: 4 dB Cable length:...

  • Page 51: Configuration Options

    9 Technical Appendix 9.2 Configuration Options Receiver Options RECEIVER TYPE SIGNAL TYPE VALUE CONNECTOR Meinberg GPS IF, 12-channel IF (Meinberg Antenna)) 15 V DC Meinberg GNS-UC GPS/Galileo IF IF (Meinberg Antenna)) 15 V DC GNSS (GPS, GLONASS, Galileo, BeiDou), 72-channel...

  • Page 52: Technical Appendix - Gnss Antennas + Accessories

    10 Technical Appendix - GNSS Antennas + Accessories 10.1 Information about the 40dB Multi GNSS Antenna GPS L1 / GLONASS L1 / GALILEO E1 / BeiDou B1 Frequency Band The GPS, GLONASS, Galileo and BeiDou satellites are not stationary but circle round the globe in a period of about 12 hours.

  • Page 53: Antenna Cable

    10 Technical Appendix - GNSS Antennas + Accessories 10.2 Antenna Cable Cable Type Cable Diameter (mm/in) Attenuation at 100 MHz Max. Cable Length (m/ft) Used for Receiver Type (db)/100 m/328 ft RG58/CU 5/0.2 300/984 GPS/GNS-UC/PZF RG213 10.3/0.41 700/2297 GPS/GNS-UC H155 5.4/0.21 70/230 GNM/GNS...

  • Page 54: Technical Specifications: Mbg S-Pro Surge Protection

    10.4 Technical Specifications: MBG S-PRO Surge Protection Adapter plug with replaceable gas discharge tube for coaxial signal connections. Connection: Type-N connector female/female. The MBG S-PRO set includes a surge protector (Phoenix CN-UB-280DC-BB), a pre-assembled coaxial cable, and a mounting bracket. The coaxial cable surge protector must be installed on the antenna line.
  • Page 55 10 Technical Appendix - GNSS Antennas + Accessories Max. Discharge Current: (8/20) s Maximum (Core-Shield) 20 kA Rated Pulse Current: (10/1000) s (Core-Shield) 100 A Impulse Discharge Current: (10/350) s, Peak Value I 2.5 kA Output Voltage Limit: At 1 kV/ s (Core-Earth) spike 900 V At 1 kV/ s (Core-Earth) spike 900 V...

  • Page 56: Mbg S-Pro: Physical Dimensions

    10.4.1 MBG S-PRO: Physical Dimensions 15,8 10.4.2 Installation and Grounding Date: January 7, 2022 microSync...

  • Page 57: Information About The Rv-76G Gps/Glonass Antenna For Mobile Applications

    10 Technical Appendix - GNSS Antennas + Accessories 10.5 Information about the RV-76G GPS/GLONASS Antenna for mobile applications General Information The RV-76G GPS/GLONASS antenna is the integration of a high performance GPS patch antenna and a state-of-the-art low noise amplifier into a very low-profile, extremely compact and fully waterproof enclosure which, when connected to a GPS receiver with 5 V DC antenna power, provide adequate signal amplification and out-band rejection.
  • Page 58 Overall performance (antenna element, LNA & cable) Center frequency 1575.42 MHz 10 MHz & 1602 MHz 8 MHz Gain at 90 27 + 3dB (cable loss) Note: mounted on the 70 mm x 70 mm square ground plane Environmental Conditions Operating temperature ~40 C +85 C Storage temperature...

  • Page 59: Rohs And Weee

    WEEE-compliant fashion, it must be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. microSync...

  • Page 60: Declaration Of Conformity

    12 Declaration of Conformity Declaration of Conformity Doc ID: microSync RX800/AD10DC20-January 7, 2022 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
