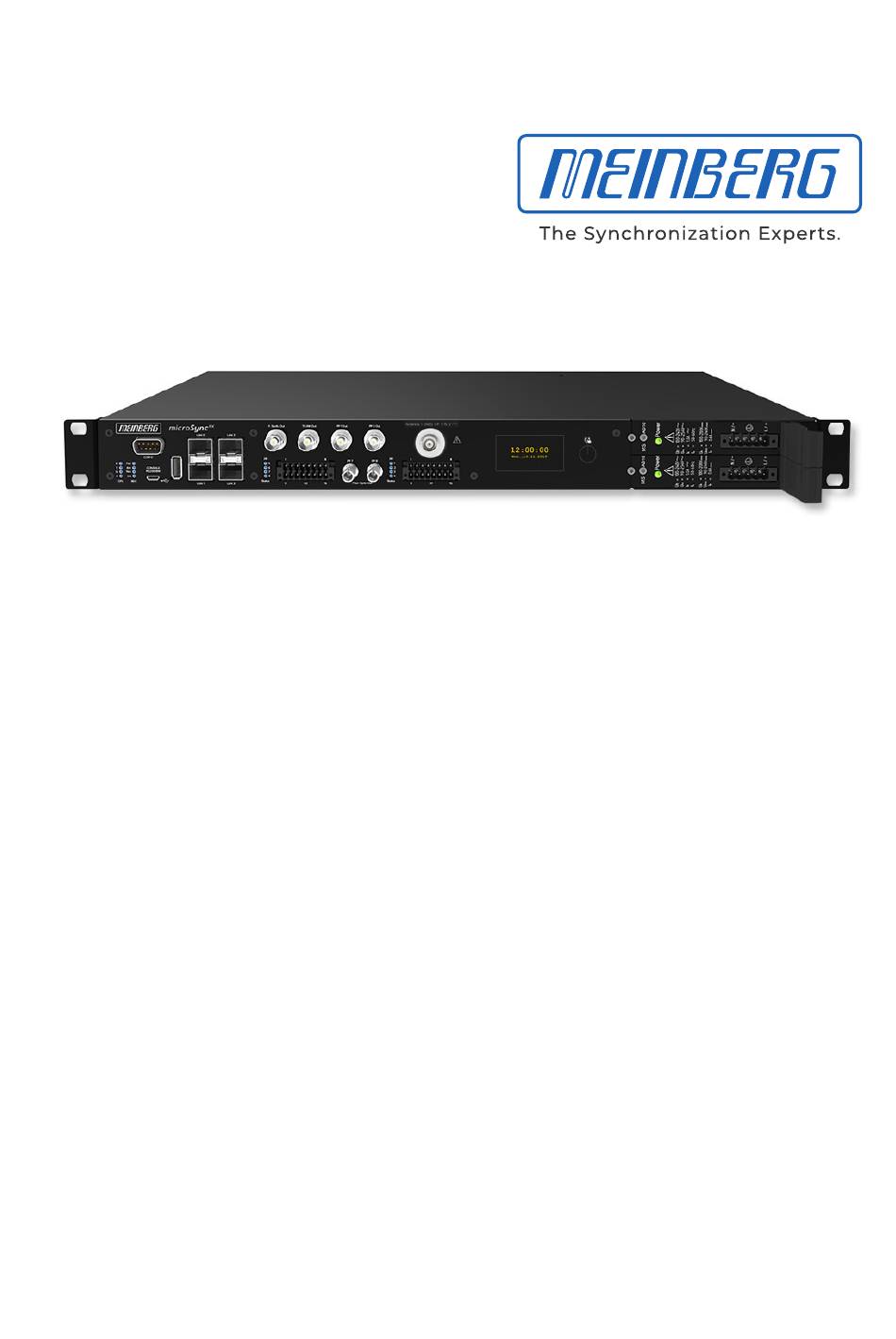

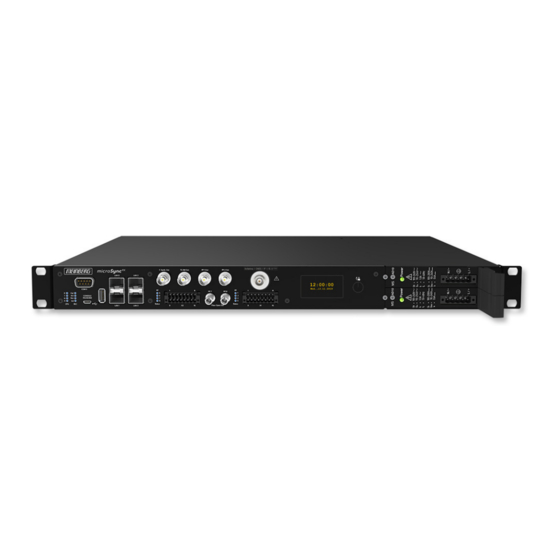

TECHNICAL REFERENCE
microSync
RX412/AD10DC20
February 24, 2023
Meinberg Funkuhren GmbH & Co. KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the microSync RX412/AD10DC20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meinberg microSync RX412/AD10DC20

Summary of Contents for Meinberg microSync RX412/AD10DC20

  • Page 1 TECHNICAL REFERENCE microSync RX412/AD10DC20 February 24, 2023 Meinberg Funkuhren GmbH & Co. KG...

  • Page 3: Table Of Contents

    6 microSync Introduction 7 microSync RX412/AD10DC20 Connectors AC/DC Power Supply ..........
  • Page 4 10.1.2 Network Configuration via Web Interface ......10.1.3 Network Configuration via Meinberg Device Manager .....

  • Page 5: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com...

  • Page 6: Copyright And Liability Exclusion

    Meinberg reserves the right to make changes of any type to this document at any time as is necessary for the purpose of improving its products and services and ensuring compliance with applicable standards, laws &...

  • Page 7: Presentation Conventions In This Manual

    3 Presentation Conventions in this Manual 3 Presentation Conventions in this Manual 3.1 Conventions for the Presentation of Critical Safety Warnings Warnings are indicated with the following warning boxes, using the following signal words, colors, and symbols: Caution! This signal word indicates a hazard with a low risk level. Such a notice refers to a procedure or other action that may result in minor injury if not observed or if improperly performed.

  • Page 8: Conventions For The Presentation Of Other Important Information

    3.3 Conventions for the Presentation of Other Important Information Beyond the above safety-related warning boxes, the following warning and information boxes are also used to indicate risks of product damage, data loss, and information security breaches, and also to provide general information for the sake of clarity, convenience, and optimum operation: Important! Warnings of risks of product damage, data loss, and also information security risks are indicated with...

  • Page 9: Important Safety Information

    Depending on your specific device configuration and installed options, some safety information may not be applicable to your device. Meinberg accepts no responsibility for injury or death arising from a failure to observe the safety information, warnings, and safety-critical instructions provided in the product documentation.

  • Page 10: Product Documentation

    Read the product manual carefully and completely before you set the product up for use. Safety standards and regulations change on a regular basis and Meinberg updates the corresponding safety information and warnings to reflect these changes. It is therefore recommended to visit the Meinberg website at https://www.meinbergglobal.com regularly to download up-to-date manuals.

  • Page 11: Safety When Installing The Device

    Never drill holes into the device to mount it! If you are experiencing difficulties with rack installation, contact Meinberg’s Technical Support team for assistance! Inspect the device housing before installation. The device housing must be free of any damage when it is installed.

  • Page 12: Connection Of Protective Earth Conductor/Grounding

    4.4 Connection of Protective Earth Conductor/Grounding In order to ensure that the device can be operated safely and to meet the requirements of IEC 62368- 1, the device must be correctly connected to the protective earth conductor via the protective earth connection terminal.

  • Page 13: Electrical Safety

    Always pull cable connectors out at both ends before performing work on connectors! Improperly connecting or disconnecting this Meinberg system may result in electric shock, possibly resulting in injury or death! When pulling out a connector, never pull on the cable itself! Pulling on the cable may cause the plug to become detached from the connector or cause damage to the connector itself.
  • Page 14 5-Pin MSTB Connector 3-Pin MSTB Connector = 100 - 200 V = 90 - 250 V Fig.: Lock screws on an MSTB plug connector; in this case on a LANTIME M320 Ensure that all plug connections are secure. In particular, when using plug connectors with lock screws, ensure that the lock screws are securely tightened.

  • Page 15: Special Information For Devices With Ac Power Supply

    4.6 Safety when Handling SFP Modules The SFP modules recommended by Meinberg are equipped with a Class 1 laser. • Only use fiber optic SFP modules that are compliant with the definition of a Class 1 laser in accordance with IEC standard 60825-1.

  • Page 16: Safety When Maintaining And Cleaning The Device

    If a power supply unit or module is no longer functional (for example due to a defect), it can be returned to Meinberg for repair. Some components of the device may become very hot during operation. Do not touch these surfaces! If maintenance work is to be performed on the device and the device housing is still hot, switch off...

  • Page 17: Important Product Information

    5 Important Product Information 5 Important Product Information 5.1 CE Marking This product bears the CE mark as is required to introduce the product into the EU Single Market. The use of this mark is a declaration that the product is compliant with all re- quirements of the EU directives effective and applicable as at the time of manufacture of the product.

  • Page 18: Maintenance And Modifications

    • Some configuration options relating to the reference clock are lost every time the system is restarted. In this case you should not replace the battery on your own. Please contact the Meinberg Technical Support team, you will provide you with precise guidance on how to perform the replacement.

  • Page 19: Prevention Of Esd Damage

    5 Important Product Information 5.5 Prevention of ESD Damage An ESDS device (electrostatic discharge-sensitive device) is any device at risk of dam- age or malfunction due to electrostatic discharge (ESD) and thus requires special mea- sures to prevent such damage or malfunction. Systems and modules with ESDS devices usually bear this symbol.

  • Page 20: Disposal

    "IT and Telecommunications Equipment" in accordance with Annex I of the Directive. It can be returned to Meinberg for disposal. In this case, the shipping costs are to be borne by the cus- tomer, while Meinberg will cover the costs for disposal. If you wish for Meinberg to handle disposal for you, please get in touch with us.

  • Page 21: Microsync Introduction

    • High performance (S)NTP server • Redundant power supply • Different Oscillator options for advanced holdover performance • Comprehensive Web UI and Meinberg Device Manager software for configuration and status monitoring (see chapter Starting of Operation) • Three-year manufacturer‘s warranty •...

  • Page 22: Microsync Rx412/Ad10Dc20 Connectors

    7 microSync RX412/AD10DC20 Connectors 7.1 AC/DC Power Supply Important! Hotplug It is possible to remove or install power supplies from the system housing during operation. Required Tools • Slot screwdriver 0.4 mm thick, 2,5 mm wide • Screwdriver Torx TR8x60...
  • Page 23 The status LED of the new power supply should now light up. The "OK" status must be displayed in the system’s web interface. Checking Power Status The status of the power supplies can be observed in the program Meinberg Device Manager under "Status System Status". microSync...
  • Page 24 AD10 - AC/DC Power Supply Connector Type: 5-pol. DFK Pin Assignment: 1: N/- 2: not connected 3: PE (Protective Earth) 4: not connected 5: L/+ Input Parameter ———————————————————————————— Nominal Voltage Range: 100-240 V 100-200 V Maximum Voltage Range: 90-265 V 90-250 V Nominal Current: 1.0 A...
  • Page 25 7 microSync RX412/AD10DC20 Connectors DC20 - DC Power Supply Connector Type: 5pin DFK Pin Assignment: 1: not connected 2: V 3: PE (Protective Earth) 4: V 5: not connected Input Parameter ———————————————————————————— Nominal Voltage Range: 24-48 V Maximum Voltage Range:...

  • Page 26: Microsync Oled Display

    (Devman), which should support all current functions, and the commit value, which is an internal identification for the software, are displayed. Target : 0x310 • System type - e.g.: microSync RX412/AD10DC20 Devman : 6.2 • SN - serial number Commit : 86AD960 •...
  • Page 27 figuration made via the display has been changed externally. This case occurs if e.g. the IP address, DHCP On which was configured via the display, is changed by (*) external changed using the Meinberg Device Manager later. IP Address: 166.030.044.002/16 Gateway: • DHCP - On / Off...

  • Page 28: Gps Antenna

    7.3 GPS Antenna Antenna input GNS181-UC: Antenna circuit electrically isolated Dielectric strength: 1000 V Mixed frequency Reference clock to antenna (GPS-converter): 10 MHz IF frequency Antenna (GPS-converter) to reference clock: 35.4 MHz 1) these frequencies are transfered via the antenna cable Output voltage: 15 V, 100 mA (via antenna cable) Connection type:...

  • Page 29: Programmable Pulse Output

    7 microSync RX412/AD10DC20 Connectors 7.4 Programmable pulse output Signal output Programmable pulses Signal level: TTL; 2.5 V into 50 Ohm Connector: BNC, female Cable: Coaxial cable, shielded Pulse outputs: Pulse Per Second Cyclic Pulse Single Shot Timer Idle All Sync...

  • Page 30: 10 Mhz Input

    BNC Connector, Female Cable: Coaxial Cable, Shielded 7.7 RS-232 COMx Timestring Data transfer: serial Baudrate/framing: 19200 / 8N1 (default) Time-string: Meinberg Standard (default) Assignment: Pin 2: RxD (receive) Pin 3: TxD (transmit) Pin 5: GND (ground) Connector: 9pin D-SUB male...

  • Page 31: Status Indicators - Cpu And Receiver

    7 microSync RX412/AD10DC20 Connectors 7.8 Status Indicators - CPU and Receiver CPU: —————————————————————————– R (Receiver) green: The reference clock (e.g. build-in GNS181-UC) provides a valid time red: the reference clock does not provide a valid time T (Time Service) green: NTP is synchronized to the reference clock, e.g.

  • Page 32: Usb Interface

    7.9 USB Interface Signal Signal Type Connector —————————————————————————– USB Terminal USB-to- Micro-USB Type B serial console USB Host USB connector USB Type A management CPU 7.10 LAN Network Interfaces Gigabit Ethernet (GbE), 100/1000 MBit - SFP LAN 0, 1: Management / NTP 10/100/1000Mbit RJ45 or 1000FX LAN 2, 3: Management...
  • Page 33 7 microSync RX412/AD10DC20 Connectors Available SFP Modules SFP Tranceivers Recommended and Tested by Meinberg Output Type Manufacturer Designation Multi Mode: Avago AFBR-5710PZ Finisar FTLF8524P3BNL Cisco GLC-SX-MMD Single Mode: Avago AFCT-5710PZ Finisar FTLF1318P3BTL RJ-45: Avago ABCU-5740RZ Finisar FCLF8521P2BTL Warning! Prevention of Eye Injuries •...

  • Page 34: Dmc X2 Terminal Connector

    7.11 DMC X2 Terminal Connector Note: The connector on the device side and the connection socket of the X2 terminal are provided with coding pins to avoid confusion with the X1 connection terminal. Pin 1 PP 5+ programmable pulse (optocoupler) Pin 2 PP 5 programmable pulse (RS-422A)

  • Page 35: Fiber Optic - Programmable Pulse Output

    7 microSync RX412/AD10DC20 Connectors 7.12 Fiber Optic - Programmable pulse Output Output signal: Programmable pulses, fiber optic Wave lenght: 850 nm (multi mode) Connection type: ST-connector GI 50/125 m or 62.5/125 m gradient fibre Pulse outputs: Pulse Per Second Cyclic Pulse...

  • Page 36: Dmc X1 Terminal Connector

    7.13 DMC X1 Terminal Connector Pin 1 not used Pin 2 not used Pin 3 PP 1- programmable pulse Pin 4 PP 2- programmable pulse Pin 5 PP 3- programmable pulse Pin 6 PP 4- programmable pulse Status Pin 7 REL-NO Error/Relay (normally open) Pin 8...
  • Page 37 7 microSync RX412/AD10DC20 Connectors Scheme Terminal assignment Programmable Pulses Standard (Opto Coupler) Four programmable outputs (PP 1 - PP 4) DC-insulated by optocouplers PP 1 + Channel 1 PP 1 = 55 V CEmax PP 2 + = 50 mA...

  • Page 38: Information On Satellite Reception

    Your system is fitted with the GNS181-UC, a 72-channel satellite receiver clock that serves as a high-accuracy time and frequency reference for your Meinberg system and is designed to receive signals from the United States GPS (Global Positioning System) and European Galileo system using a Meinberg antenna/converter unit, enabling a choice of time references from the combined GPS and Galileo systems.

  • Page 39: Time Zones And Daylight Saving Time

    8 Information on Satellite Reception 8.2.1 Time Zones and Daylight Saving Time GPS System Time is a linear timescale that was synchronized with the international UTC timescale (Coor- dinated Universal Time) when the satellite system became operational in 1980. Since it has entered service, however, several leap seconds have been introduced to the UTC timescale to adjust UTC time to irregularities in the Earth’s rotation.

  • Page 40: Installation Of A Gps Antenna

    9 Installation of a GPS Antenna Danger! Do not mount the antenna without an effective fall arrester! Danger of death from falling! • Ensure that you work safely when installing antennas! • Never work without an effective fall arrester! Danger! Do not work on the antenna system during thunderstorms! Danger of death from electric shock! •...
  • Page 41 Case Example 4: If the cable leading from the point of entry into the building to the Meinberg system is laid together with other cables (for example in a cable duct alongside high-voltage cables), transient voltages may "leak" into the antenna cable, causing damage to your system.
  • Page 42 Type-N (Male) If installed in a waterproof housing, the MBG S- Type-N (Female) PRO can be installed outdoors. However, Meinberg recommends installing the surge protector indoors—as closely to the entrance point of the antenna cable as possible—in order to minimize the risk of surge dam- age (such as that caused by lightning strike).
  • Page 43 9 Installation of a GPS Antenna Grounding Conductor To ground the antenna cable, connect the surge protec- to Grounding Busbar tor to a grounding busbar using a grounding conductor Recommended Cable Thickness: (see illustration). 4 mm² - 6 mm² As short as possible Once installation is complete, connect the other end of the antenna cable to the surge protector female con- nector.
  • Page 44 The splitter may be installed at any location between the surge protector and the receivers. Information: Please note for installation purposes that GNSS L1 components cannot be directly connected to or used with a Meinberg GPS antenna distributor. Antenna Receiver Antenna Splitter...

  • Page 45: Starting Of Operation

    There are three ways to perform the basic network configuration of your microSync: • Configuration via a serial connection, see Chapter 10.1.1. • Configuration via the Web Interface, see Chapter 10.1.2. • Configuration via Meinberg Device Manager, see Chapter 10.1.3. microSync Date: February 24, 2023...

  • Page 46: Network Configuration Via Serial Connection

    10.1.1 Network Configuration via Serial Connection The initial network configuration of the microSync can also be performed via a serial USB connection. You can connect the USB port on the PC with the micro-USB port of the microSync using a standard USB cable (Micro-USB Type B to USB-A).
  • Page 47 Web Interface or Meinberg Device Manager. Information: If the microSync’s network configuration has already been previously performed using the Web Interface or Meinberg Device Manager, you will not be able to do this using mbgOSWizard.sh. microSync Date: February 24, 2023...

  • Page 48: Network Configuration Via Web Interface

    10.1.2 Network Configuration via Web Interface The network configuration for the microSync can be performed via the Web Interface. In its factory-shipped state, the microSync has the following network configuration: Network Port LAN 0 192.168.19.79 IPv4 Address: 255.255.255.0 Subnet Mask: Gateway: Not defined DHCP:...
  • Page 49 10 Starting of Operation As soon as the Dashboard appears, click on the "Configuration" section in the Header Bar, then select the "Network" tile. Be sure in particular to correctly configure the network settings for the intended management interface ("Interfaces" tab) to ensure that it is accessible within the subnet. Once you have performed the configuration, click on "Save"...

  • Page 50: Network Configuration Via Meinberg Device Manager

    The software is delivered on the USB stick included in the scope of delivery and does not need to be in- stalled or copied on the PC. The Meinberg Device Manager can be started directly from the USB data carrier.
  • Page 51 DHCP: Disabled The PC on which Meinberg Device Manager is used must be able to establish a network connection with the above address in the appropriate subnet. If the PC’s network configuration or the network’s topology or addressing prevent a connection from being established with the microSync, the network configuration of the PC will need to be (temporarily) changed and a different physical connection may need to be established (e.g.
  • Page 52 If the inserted microSync cannot be found via the automatic search, the Add Device button can be used to set up the connection manually. Manual Setup Select the connection type microSyncHR, microSyncRX (Network). Then enter the IPv4 address of the microSync (192.168.19.79).

  • Page 53: Initial Start Of Operation

    (Figure 10.1). The default settings are: admin Username: Password: timeserver Further information about the meinbergOS web interface in the chapter "The meinbergOS Web Interface" to be found in the microSync installation manual: https://www.meinberg.de/download/docs/manuals/english/microsync.pdf microSync Date: February 24, 2023...

  • Page 54: Start Of Operation With Meinberg Device Manager Software

    10.2.2 Start of Operation with Meinberg Device Manager Software First install the Meinberg Device Manager software supplied on the USB stick. After the setup, start the program. If you do not want to perform a setup on your computer, you can start the portable version of the Meinberg Device Manager software directly on the USB stick: USB Drive/Software/MbgDevMan/mbgdev- man_portable/mbgdevman.exe.
  • Page 55 User and Password fields are already filled out. Silent Login You have the option that the Meinberg Device Man- ager does not ask for a user name and password every time you log in. Custom Alias Assign a custom alias for better identification of indi-...

  • Page 56: Technical Appendix

    11 Technical Appendix 11.1 Technical Specifications microSync Chassis Protection Rating: IP30 Ambient Temperature: -20 ... 55 C Storage Temperature: -30 ... 70 Humidity: 5% to 95% (non-condensing) @ 40 C Operating Altitude: up to 4,000 m (13,123 ft) above sea level Atmospheric Pressure: 615 to 1,600 hPa Physical Dimensions:...

  • Page 57: Technical Specifications Gnss Receiver

    Framing: 7E1, 7E2, 7N2, 7O1, 7O2, 8E1, 8N1, 8N2, 8O1 Default Setting: COM 0: 19200, 8N1 Meinberg Standard time string, per second Time Code Outputs: Unbalanced modulated sine wave signal: (MARK), 1 V (SPACE) into 50 PWM DCLS-signal: TTL into 50...
  • Page 58 GNS Receiver (GNS181) Type of receiver: GPS/GLONASS/Galileo/BeiDou receiver Number of channels: 72 Frequency band: GNSS L1 GPS: 1575.42 10 MHz GLONASS: 1602-1615 MHz Galileo: 1542.5 MHz BeiDou: 1561.09 MHz Antenna: Combined GPS/GLONASS antenna 3 dB Bandwidth: 1590 30 MHz Impedance: Gain: 4 dB Cable length:...

  • Page 59: Configuration Options

    11 Technical Appendix 11.3 Configuration Options Receiver Options RECEIVER TYPE SIGNAL TYPE VALUE CONNECTOR Meinberg GPS IF, 12-channel IF (Meinberg Antenna)) 15 V DC Meinberg GNS-UC GPS/Galileo IF IF (Meinberg Antenna)) 15 V DC GNSS (GPS, GLONASS, Galileo, BeiDou), 72-Channel...

  • Page 60: Technical Appendix: Gps Antenna + Accessories

    12 Technical Appendix: GPS Antenna + Accessories Physical Dimensions: Date: February 24, 2023 microSync...
  • Page 61 12 Technical Appendix: GPS Antenna + Accessories Specifications: Power Supply: 15 V, 100 mA (provided via antenna cable) Reception Frequency: 1575.42 MHz Bandwidth: 9 MHz Frequencies: Mixed Frequency 10 MHz IF frequency: 35.4 MHz Connector: Type-N Female Form Factor: ABS Plastic Case for Outdoor Installation IP Rating: IP66 Humidity:...

  • Page 62: Technical Specifications: Antenna Cable

    12.1 Technical Specifications: Antenna Cable The table below shows which coaxial cable types and lengths are supported by Meinberg for each of the receiver types. If you need to purchase a replacement cable at any time, please refer to this table to ensure that you select cable with suitable cutoff...

  • Page 63: Technical Specifications: Mbg S-Pro Surge Protector

    12 Technical Appendix: GPS Antenna + Accessories 12.2 Technical Specifications: MBG S-PRO Surge Protector Adapter plug with replaceable gas discharge tube for coaxial signal connections. Connector Type: Type-N connector female/female. The MBG S-PRO set includes a surge protector (Phoenix CN-UB-280DC-BB), a pre-assembled coaxial cable, and a mounting bracket. The coaxial cable surge protector must be installed on the antenna line.
  • Page 64 Max. Discharge Current: (8/20) s Maximum (Core-Shield) 20 kA Rated Pulse Current: (10/1000) s (Core-Shield) 100 A Impulse Discharge Current: (10/350) s, Peak Value I 2.5 kA Output Voltage Limit: At 1 kV/ s (Core-Earth) spike 900 V At 1 kV/ s (Core-Earth) spike 900 V Response Time: tA (Core-Earth)

  • Page 65: Mbg S-Pro: Physical Dimensions

    12 Technical Appendix: GPS Antenna + Accessories 12.2.1 MBG S-PRO: Physical Dimensions 15,8 12.2.2 Installation and Grounding microSync Date: February 24, 2023...

  • Page 66: Rohs Conformity

    13 RoHS Conformity Conformity with EU Directive 2011/65/EU (RoHS) We hereby declare that this product is compliant with the European Union Directive 2011/65/EU and its delegated directive 2015/863/EU “Restrictions of Haz- ardous Substances in Electrical and Electronic Equip- ment”. We warrant that our electrical and electronic products sold in the EU do not contain lead, cadmium, mer- cury, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs),...

  • Page 67: Declaration Of Conformity For Operation In The European Union

    14 Declaration of Conformity for Operation in the European Union 14 Declaration of Conformity for Operation in the European Union EU-Konformitätserklärung Doc ID: microSync RX412/AD10DC20-February 24, 2023 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt,...

  • Page 68: Declaration Of Conformity For Operation In The United Kingdom

    15 Declaration of Conformity for Operation in the United Kingdom UK Declaration of Conformity Doc ID: microSync RX412/AD10DC20-February 24, 2023 Manufacturer Meinberg Funkuhren GmbH & Co. KG Lange Wand 9 31812 Bad Pyrmont Germany declares that the product Product Designation...
