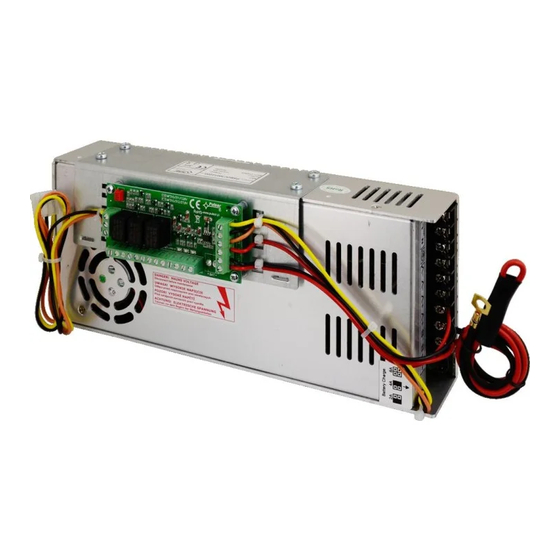

- Page 1 PSBOC30012200 v.1.0 PSBOC 13,8V/20A/OC Enclosed buffer switch mode power supply unit with technical outputs. EN** Edition: 2 from 01.06.2016 Supercedes edition: 1 from 09.04.2015...
-
Page 2: Table Of Contents
PSBOC30012200 Features: EPS technical output indicating AC power loss 13,8VDC/20A uninterrupted supply* – OC and relay type wide range of supply voltage 176÷264VAC PSU technical output indicating PSU failure built-in power factor correction system (PFC) –... -
Page 3: Block Diagram
PSBOC30012200 1.2. Block diagram. (fig.1). Fig.1. Block diagram of the PSU. 1.3. Description of PSU components and connectors. Table 1. Elements of the PSU (see fig. 2). Element no. Description LED indicating presence of AC power LED indicating presence of DC power LED indicating correct battery voltage EPS - AC absence technical output –... -
Page 4: Specifications
PSBOC30012200 1.4. Specifications: - electrical specifications (tab.2) - mechanical specifications (tab.3) - operation safety (tab.4) - operating specifications (tab.5) Table 2. Electrical specifications. 176 ÷ 264V AC Mains supply Current consumption 1,5A@230VAC max. PSU power 300W max. Efficiency Power factor PF >0,95 @230V AC... -
Page 5: Installation
PSBOC30012200 Table 3. Mechanical specifications. Enclosure dimensions 275x115x50 +23 [mm] (LxWxH) (+/- 2) Net/gross weight 1,4kg / 1,5kg power supply: Φ0,63-2,50 (AWG 22-10) Connectors Outputs: Φ0,63-2,50 (AWG 22-10) technical outputs: Φ0,41-1,63 (AWG 26-14) battery outputs: Ф6/2,5mm Led indication output: 3-pin 5 mm connector Notes Forced cooling - built-in fan. - Page 6 PSBOC30012200 4. Connect load/loads to proper output connectors of the power supply (positive pole is marked as +V, negative pole as -V) 5. Connect the technical outputs to the central or other device. 6. Connect the battery in accordance with the signs (colours).
- Page 7 PSBOC30012200 3.2. Technical outputs The PSU has indication outputs: EPS - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is connected to ground (L level – 0V). In case of power loss, the PSU will switch the output into high impedance state hi-Z.
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar (the manufacturer) grants a two-year warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
