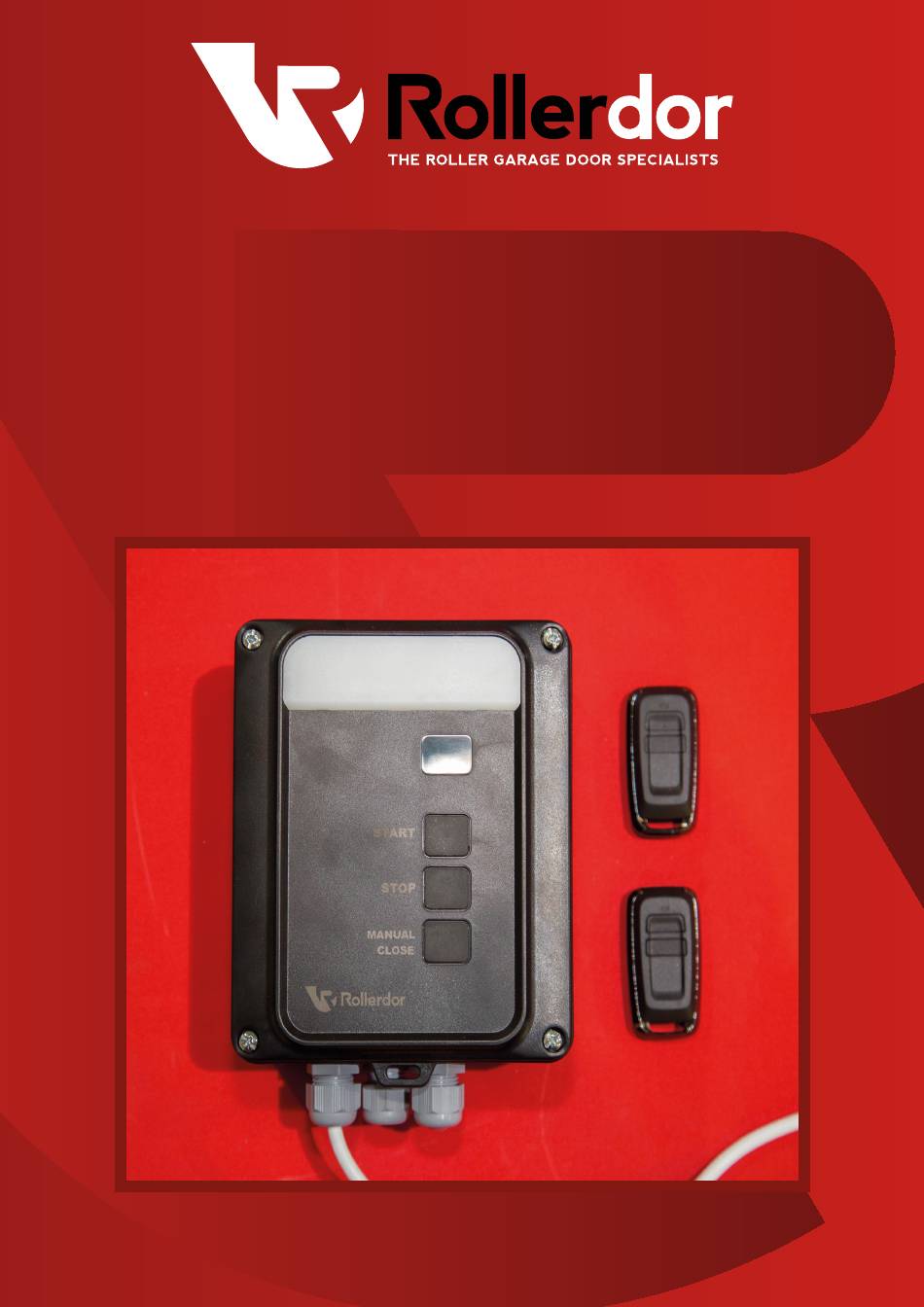

- Page 1 Rollerdor RD10X2 Control Box, Edition 2022/1 RD10X2 Control Box Installation Guide for Roller Garage Doors Edition 2022/1...
- Page 2 1. INSTALLING RECEIVER BOX Open the lid of the receiver box by unscrewing the four screws (one in each corner) (fig.1). Remove the two screws from the bottom of the box (these can be found behind the glands) and the wall mounting plate can be removed from the back (fig.2 &...
-
Page 3: Direction Of Rotation
Rollerdor RD10X2 Control Box, Edition 2022/1 Before plugging in, check to make sure that there are no bare cables touching and all wires are securely fixed. There is a four dipswitch block at the bottom middle of the receiver board (usually blue or red). - Page 4 2. SETTING UP WIRELESS SAFETY EDGE KIT (RD10X2 VELOCITY SAFETY EDGE) PROGRAMMING BASE RAIL UNIT The control box is currently in hold to run operation for open and close, if the limits of the motor have not been set then please use the open and close buttons that can be found at the bottom right corner of the yellow transformer (Fig.17.1) to set these limits.’...
- Page 5 Rollerdor RD10X2 Control Box, Edition 2022/1 PROGRAMMING RUN TIMERS & LIMITS The curtain must be all the way down in the closed position before starting. Please be aware! During set up the Press and hold the white “PROG” button on the main receiver motor may reach thermal cut out.
-
Page 6: Sequential Operation
3. PROGRAMMING OF REMOTE CONTROL HANDSETS SEQUENTIAL OPERATION Press and hold the “RADIO PROG” button (fig.11A). You will hear a beep and the red LED alongside “C1” will illuminated (fig.11B). Then release the “RADIO PROG” button. Press top button on handset (fig.11A). The panel will beep to confirm it has accepted. - Page 7 Rollerdor RD10X2 Control Box, Edition 2022/1 CLEARING MEMORY OF REMOTE CONTROL HANDSETS Press and hold the “RADIO PROG” button (fig.13). You will hear a beep and the red LED alongside “C1” will illuminate. Insert screwdriver between the 2 pin terminals on the board (MR) to bridge between them (fig.13).
-
Page 8: Optional Extras
4. OPTIONAL EXTRAS HARD WIRED ROCKER / KEY SWITCH WIRING AS FOLLOWS: Receiver Box Green 6 Block Terminal (fig.15): L0 – Up wire from switch L2 – Down wire from switch L1 – Common wire for the supply to the switch L1 –... -
Page 9: Wireless Key Pad
Rollerdor RD10X2 Control Box, Edition 2022/1 WIRELESS KEY PAD INSTALLATION Fit directly to the wall using the 2 fixings making sure it is level and square with the writing at the bottom. PROGRAMMING CODES Master Code: Access Code Press and hold the * button (fig.18A). For 3 Press and hold the * button (fig.18A) - Page 10 10 & 12 Jarrold Way Bowthorpe Employment Area Norwich Norfolk NR5 9JD +44 (0)1603 743215 sales@rollerdor.net www.rollerdor.net Company Registration Number. 10676267 Registered Office Address: Rollerdor Ltd, Bankside 300 Peachman Way, Broadland Business Park, Norwich, Norfolk, United Kingdom, NR7 0LB Edition 2022/1...
