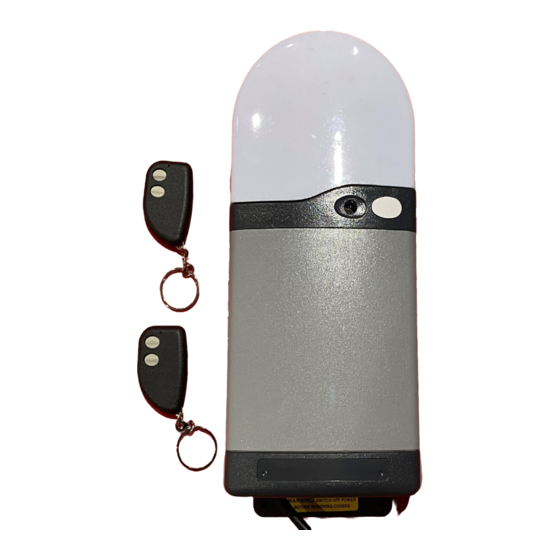

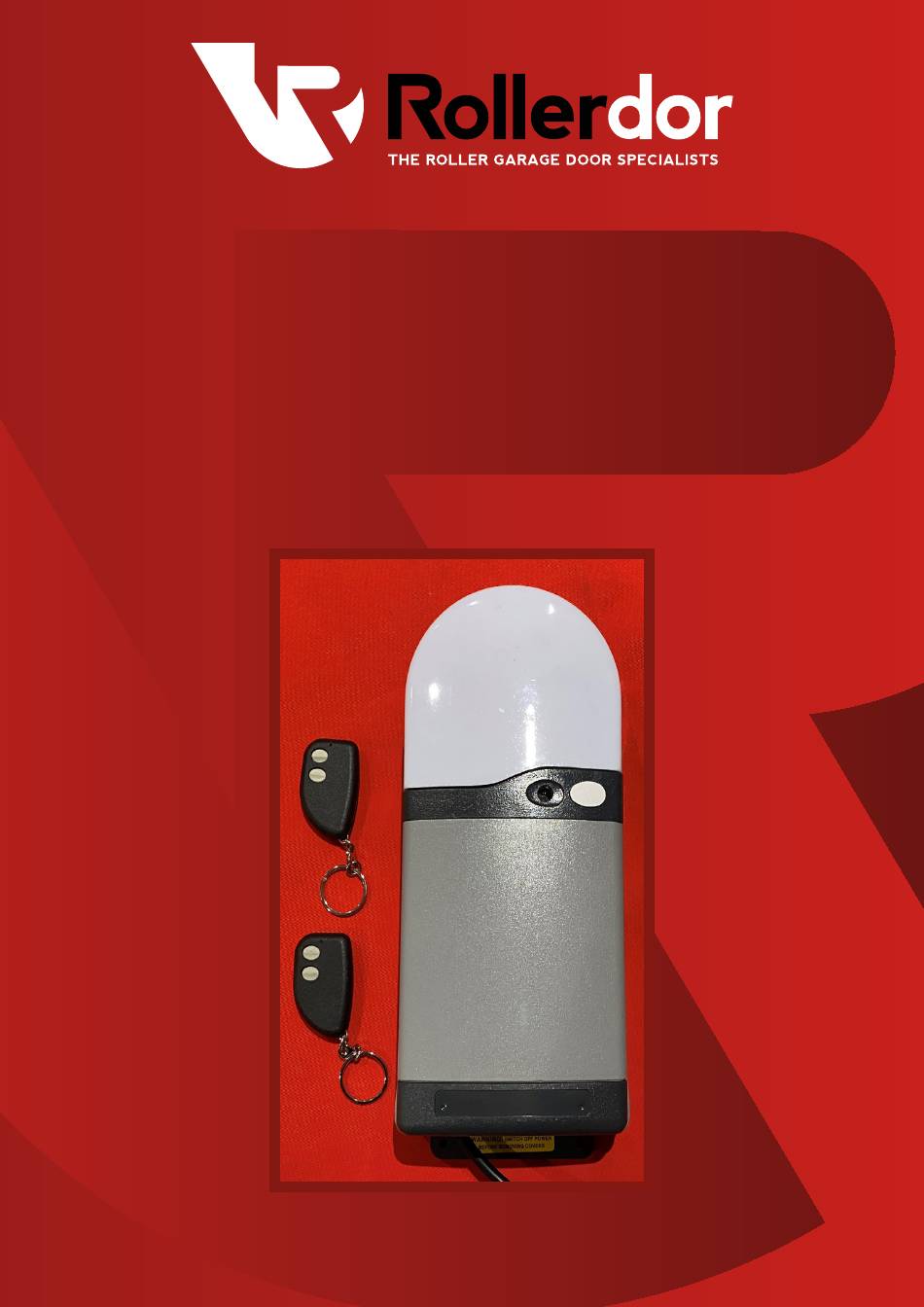

- Page 1 Rollerdor RD20X2ANSA Control Box, Edition 2022/1 RD20X2ANSA Control Box Installation Guide for Roller Garage Doors Edition 2022/1...
- Page 2 1. INSTALLING RECEIVER BOX (SAFETY EDGE) To gain access to the board of the panel remove the dark grey plastic cover at the bottom and this will reveal a screw in each corner and the spare fuses for the board, remove these screws and the light grey cover will come away (fig.1).
- Page 3 Rollerdor RD20X2ANSA Control Box, Edition 2022/1 fig.5 fig.6 fig.7 fig.8 Pictures are for illustration purposes only, connector blocks are not provided and further fittings may be required.
- Page 4 2. SETTING UP WIRELESS SAFETY EDGE KIT (RD20X2 OPTICAL SAFETY EDGE) WARNING: The Installation of this system MUST be carried out in the order as detailed below. PROGRAMMING BASE RAIL UNIT With the power isolated remove link wire from 12v (fig.6) to PEC and keep safe for later, the control...
- Page 5 Rollerdor RD20X2ANSA Control Box, Edition 2022/1 (B) Press and hold the operation button on the front of the receiver box next to RED LED (fig.13) for 1 second then release. (C) Wait 2 seconds then press and release the operation button.
-
Page 6: Sequential Operation
3. PROGRAMMING OF REMOTE CONTROL HANDSETS SEQUENTIAL OPERATION Handsets that come supplied with the receiver box are normally programmed in and work in a sequential operation but if any extra handsets need programming please follow instructions below. Press and hold the operation button on receiver box next to the RED LED for roughly 5 seconds and release when the RED LED goes out... -
Page 7: Alarm System
Rollerdor RD20X2ANSA Control Box, Edition 2022/1 ALARM SYSTEM Operation: The unit will automatically arm on closure, a break in alarm signal is triggered if the button rail is forced open. Alarm LED status: the alarm has a LED status LED light, if the light is GREEN then the door is closed and the alarm is set;... -
Page 8: Optional Extras
4. OPTIONAL EXTRAS HARD WIRED ROCKER / KEY SWITCH WIRING AS FOLLOWS: Grey 11 Terminal Block on right hand side (fig.17): Switches work on a sequential action so from an initial position of door closed it will be the following cycle: (open, stop, close, stop, open etc). - Page 9 Rollerdor RD20X2ANSA Control Box, Edition 2022/1 WIRELESS KEY PAD INSTALLATION Undo and remove the two back-plate securing screws from the top and bottom of the unit and remove the back-plate. Using the back-plate as a template, mark the positions of two suitable fixing holes onto the wall then secure the back-plate to the wall using the plugs and fixing screws provided.
- Page 10 CHANGING ACCESS CODE For security reasons it is essential that the access code number is changed to another 4, 5 or 6 digit number these numbers can be in any combination of numbers 0-9, excluding # and *. To change access code follow this sequence: press # master code # existing code # new code # new code. The LED keys flash twice confirming the new access code is acknowledged.
-
Page 11: Operating Diagnostics
Rollerdor RD20X2ANSA Control Box, Edition 2022/1 5. OPERATING DIAGNOSTICS Pictures are for illustration purposes only, connector blocks are not provided and further fittings may be required. - Page 12 Rollerdor RD20X2ANSA Control Box, Edition 2022/1 Rollerdor Ltd 10 & 12 Jarrold Way Bowthorpe Employment Area Norwich Norfolk NR5 9JD +44 (0)1603 743215 sales@rollerdor.net www.rollerdor.net Company Registration Number. 10676267 Registered Office Address: Rollerdor Ltd, Bankside 300 Peachman Way, Broadland Business Park, Norwich,...
