ELECTRONIC DISPLAYS INC.
135 S. CHURCH STREET
ADDISON, ILL. 60101
www.electronicdisplays.com
EDV225MPC-3L-N1-VT
Parts List:
-
Three-Line LED Display with Power Cable
-
IR Remote with Battery
-
Photo-eye with Reflective Plate
IR Remote
EDV Production Scoreboard Quick Setup

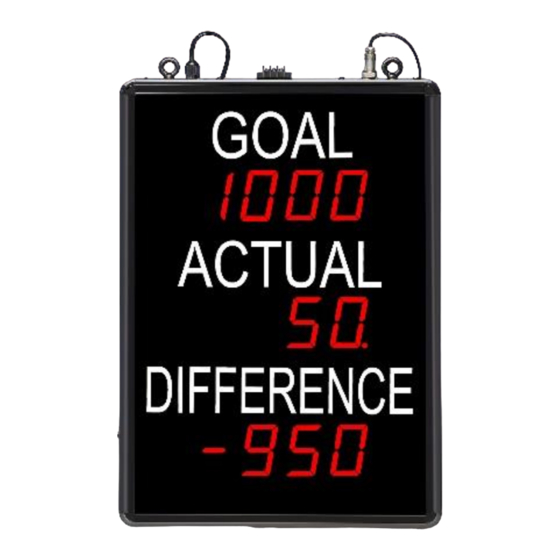

The EDV production scoreboard is two models in one. The EDV225MPC design is a 3-line
model that displays "GOAL" (top line) and "ACTUAL" (middle line) and "DIFFERENCE" or
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDI EDV225MPC-3L-N1-VT
Summary of Contents for EDI EDV225MPC-3L-N1-VT
- Page 1 ELECTRONIC DISPLAYS INC. 135 S. CHURCH STREET ADDISON, ILL. 60101 www.electronicdisplays.com EDV225MPC-3L-N1-VT Parts List: Three-Line LED Display with Power Cable IR Remote with Battery Photo-eye with Reflective Plate IR Remote EDV Production Scoreboard Quick Setup The EDV production scoreboard is two models in one. The EDV225MPC design is a 3-line...
- Page 2 “EFFICIENCY” (bottom line). The top line is preset and reset through the supplied IR remote. The “ACTUAL” line can be configured using a supplied photo-eye and reflective plate or an optional momentary contact closure. To configure the display using the IR remote follow these instructions. The “SET”...
- Page 3 Bottom Line (DIFFERENCE or EFFICIENCY) The bottom line will be internally calculated. Change Increment value (Top Line) Press the “SET” button until the top line shows “00.00” . Display will show current time increment duration. It is set at the factory as a non- incrementing number.
