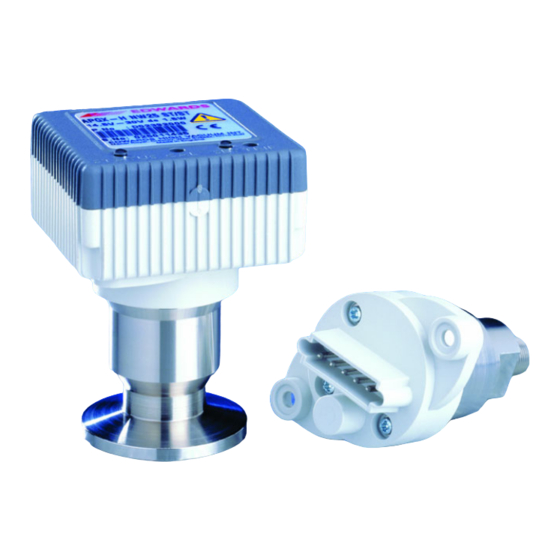

Edwards APGX-H Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Description

APGX-H-NW16-AL

APGX-H-NW25-ST/ST

APGX-H-NW16-ST/ST

APGX-H-1/8 NPT-ST/ST

Instruction Manual

APGX-H

Original Instructions

D023-92-880

Issue F

Item Number

D023-91-000

D023-92-000

D023-95-000

D023-96-000

Table of Contents

Need help?

Do you have a question about the APGX-H and is the answer not in the manual?

Questions and answers

Summary of Contents for Edwards APGX-H

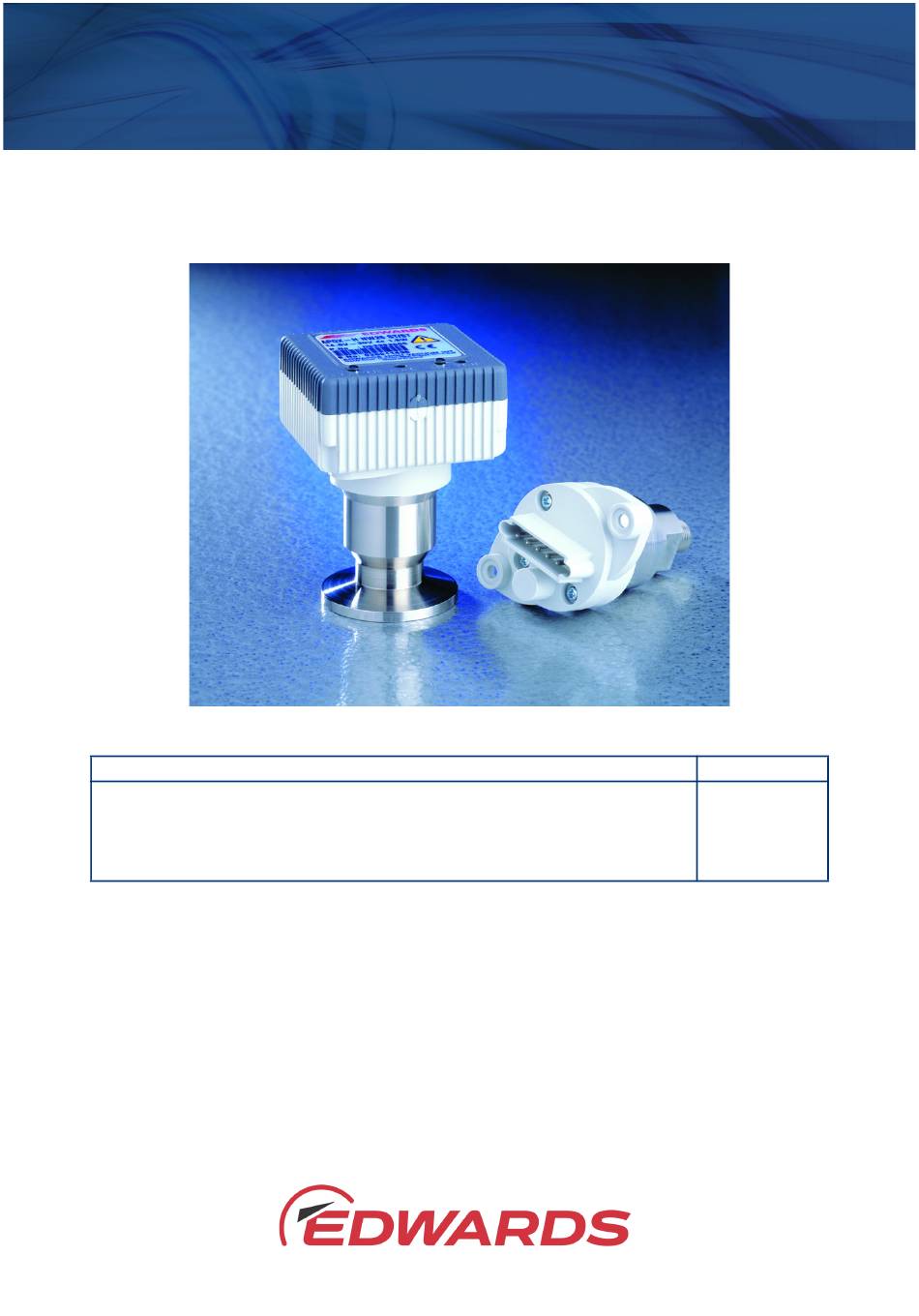

Page 1 D023-92-880 Issue F Instruction Manual APGX-H Description Item Number APGX-H-NW16-AL D023-91-000 APGX-H-NW25-ST/ST D023-92-000 APGX-H-NW16-ST/ST D023-95-000 APGX-H-1/8 NPT-ST/ST D023-96-000 Original Instructions...
Page 2 The following product Active Pirani Gauge APGX-H-NW16-AL D02391000 APGX-H-NW25-ST/ST D02392000 APGX-H-NW16-ST/ST D02395000 APGX-H-1/8 NPT-ST/ST D02396000 Is in conformity with the relevant requirements of European CE legislation: 2014/30/EU Electromagnetic compatibility (EMC) directive 2012/19/EU Waste from electrical and electronic equipment (WEEE) directive 2011/65/EU...
Page 3 D02392000 APGX-H-NW25-ST/ST GB/T 26572 as detailed in the declaration D02395000 APGX-H-NW16 ST/ST table below. DO2396000 APGX-H-1/8 NPT ST/ST These parts can safely be used for the environmental protection use period as indicated. 材料成分声明...
Page 4 This page has been intentionally left blank.
Page 5: Table Of Contents
Unpack and inspect ...................... 7 Fit the APGX-H to a system .................... 7 Electrical connections ....................8 3.3.1 Connect to an Edwards AGC, TIC or AGD display ..............8 3.3.2 Connect to your own supply and control equipment ............... 8 Operation ..................11 Pressure measurement ....................11...
Page 6 Publication number Vacuum pump and vacuum system safety P400-40-100 Trademark credits Edwards and the Edwards logo are trademarks of Edwards Limited, Innovation Drive, Burgess Hill, West Sussex, RH15 9TW, UK. Page ii © Edwards Limited 2018. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 7: Introduction
The APGX-H requires a 14.5 to 30 V d.c. power supply: it has a 0 - 10 V d.c. analogue linear output which is related to pressure. The APGX-H is compatible with all of the Edwards AGCs (Active Gauge Controllers), and appropriate versions of the Edwards TICs (Turbo Instrument Controllers) and AGDs (Active Gauge Displays).
Page 8: Gas Dependency
The switch labelled 'SET TRIP' allows you to change the operating pressure of the set-point device. The set-point output device is an open collector transistor. If you use an Edwards AGC, TIC or AGD, the APGX-H set- point is not used.
Page 9: General View Of The Apgx-H (Nw16 Apgx-H Shown)
D023-92-880 Issue F Figure 1 - General View of the APGX-H (NW16 APGX-H Shown) Cable connector plug APGX-H connector socket Filter retaining circlip Vacuum flange Sintered filter © Edwards Limited 2018. All rights reserved. Page 3 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 11: Technical Data
Filament operating temperature (above ambient) 100°C Pollution degree Electrical data Note: The electrical power consumption of the APGX-H is reduced when the system is at vacuum. The relationship between the output signal voltage and pressure is described in Section 4.1. Electrical supply...
Page 12: Materials Exposed To Vacuum
Aluminium or stainless steel (316L) Other Nickel, fluoroelastomer, PTFE Figure 2 - Dimensions (mm) NW16 APGX-H Shown) NW16 NW25 inch NPT Page 6 © Edwards Limited 2018. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 13: Installation
To connect the APGX-H to your vacuum system: Use an 'O' ring / centring-ring or Co-Seal and clamp to connect an APGX-H with an NW16 or NW25 flange to a  similar flange on the vacuum system.
Page 14: Electrical Connections
Note: Your AGC or TIC must have a version of software that is compatible with the APGX-H. If the AGC or TIC does not recognise the APGX-H, then an upgrade to the software is required. Refer to the TIC Instruction Manual for more information on downloading the latest version of the TIC software.
Page 15: Schematic Diagram Of Recommended Electrical Connection
500 mV: the set-point output and LED go off when the pressure rises to 500 mV above the set-point pressure. © Edwards Limited 2018. All rights reserved. Page 9 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 17: Operation
The temperature of the filament can be substantially higher under fault conditions. Pressure measurement Immediately after connecting the APGX-H to a power supply, the status LED will rapidly flash red and green for approximately 2 seconds while calibration information is downloaded from the tube to the electronics housing. The status LED will then turn green if the gauge is operating correctly.
Page 18: Error Monitoring
9.2 V. The set-point output will then be ON if the gauge is operating normally, and OFF if an error condition is detected. Error monitoring If an error occurs during operation of the APGX-H, then the status LED will turn red to indicate an error. Refer to Section 5.4 for a fault finding guide.
Page 19: Adjust The Apgx-H
D023-92-880 Issue F Figure 5 - Adjust the APGX-H ’SET TRIP’ switch Set-point LED ’CAL’ switch Status LED © Edwards Limited 2018. All rights reserved. Page 13 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 21: Maintenance
5.1.1 Atmosphere adjustment 1. Switch on the power supply to the APGX-H and allow it to operate for at least 10 minutes. Ensure that the green status LED is lit. 2. With the vacuum system at atmospheric pressure, press the 'CAL' switch. The status LED will flash red and the voltage output of the gauge will read approximately 9 V.
Page 22: Reset Factory Calibration Values
D023-92-880 Issue F If the APGX-H is connected to an Edwards AGC, TIC or AGD, the display will indicate the corresponding pressure. 5.1.4 Reset factory calibration values Note: Performing a factory values reset will overwrite any existing calibration data stored in the tube.
Page 23: Fault Finding
Calibration service A calibration service is available for all Edwards gauges. Calibration is by comparison with reference gauges, traceable to National Standards. Contact Edwards for details. © Edwards Limited 2018. All rights reserved.
Page 25: Storage And Disposal
Particular care must be taken if the APGX-H has been contaminated with dangerous process substances or if the gauge has been overheated or has been in a fire. Fluoroelastomers are used in the APGX-H; these are safe in normal use, but can decompose into dangerous breakdown products if heated to 260°C and above.
Page 27: Spares And Accessories
Filter Replacement Kit D023-91-805 The Filter Replacement Kit contains 5 filter-retaining circlips and 5 filters. Accessories The cables for use with the APGX-H are as follows. These cables are supplied with 8-way male electrical connectors on both ends. Cable length Item Number 0.5 m...
Page 29 This page has been intentionally left blank.
Page 30 This page has been intentionally left blank.
Page 31 Download the latest documents from www.edwardsvacuum.com/HSForms/, follow the procedure in HS1, fill in the electronic HS2 form, print it, sign it, and return the signed copy to Edwards. Note: If we do not receive a completed HS2 form, we will not accept the return of the...
Page 32 edwardsvacuum.com...
