Pixapro ORBIT300 SMART Instruction Manual

How To use The ORBIT300 SMART REMOTE

1
3
5
8
9
11
14

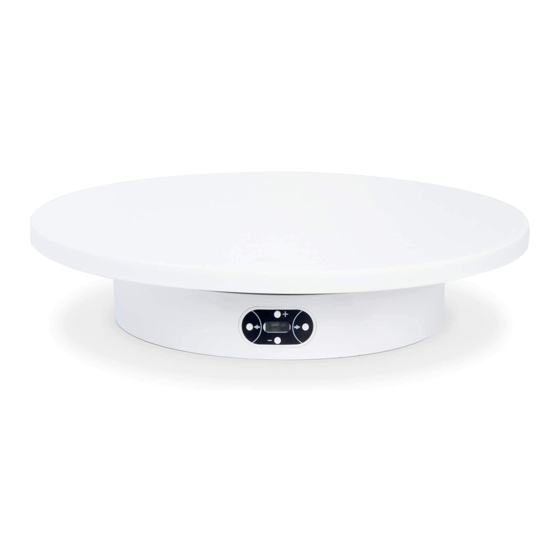

Features

• Load Capacity of up to 15kg
• 30cm Diameter
• Continuous rotation and incremental rotation modes.
• Variable Motor drive speeds.
• Integrated Bluetooth connectivity
• Automatic Shutter Modes

Some Applications For Using The ORBIT300 Smart Turntable

• Displaying Products (For Retail, Events, Museum Exhibits, Trade shows, Weddings etc.
• Creation of 360° Product Photography for E-Commerce
• Creation of 360° Videos for E-Commerce or Advertising
• 3D Modelling
• 3D Scanning
1. Shutter Button
2. Power Button
2
3. Rotation-Speed - Up
4. Stop Button
5. Clockwise (Rotating continuously)
4
6. Anti-clockwise (Rotating continuously)
6
7. Rotation-Speed - Down
8. OS: Oscillating Motion - Moves back and forth at any chosen
7
angle. Only works when pressed in conjunction with one of the
10
Angle Buttons (13)
9. CW°: Clockwise Motion - Rotates table incrementally based
on any chosen angle. Only works when pressed in conjunction
12
with one of the Angle Buttons (13)
10. CCW°: Counter/Anti Clockwise Motion - Same as above
(9) but in the opposite direction. Only works when pressed in
13
conjunction with one of the Angle Buttons (13)
1 1. Rotate Clockwise for one full revolution.
12. Rotate Anti-Clockwise for one full revolution.
13. Angle Buttons: Sets the angle of rotation when used in conjunc-
tion with OS (8), CW° (9) and CCW° (10) buttons.
14. Sets the turntable's current position as the starting position.
