PiXAPRO Recessed Softbox

ASSEMBLY INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the EssentialPhoto and is the answer not in the manual?

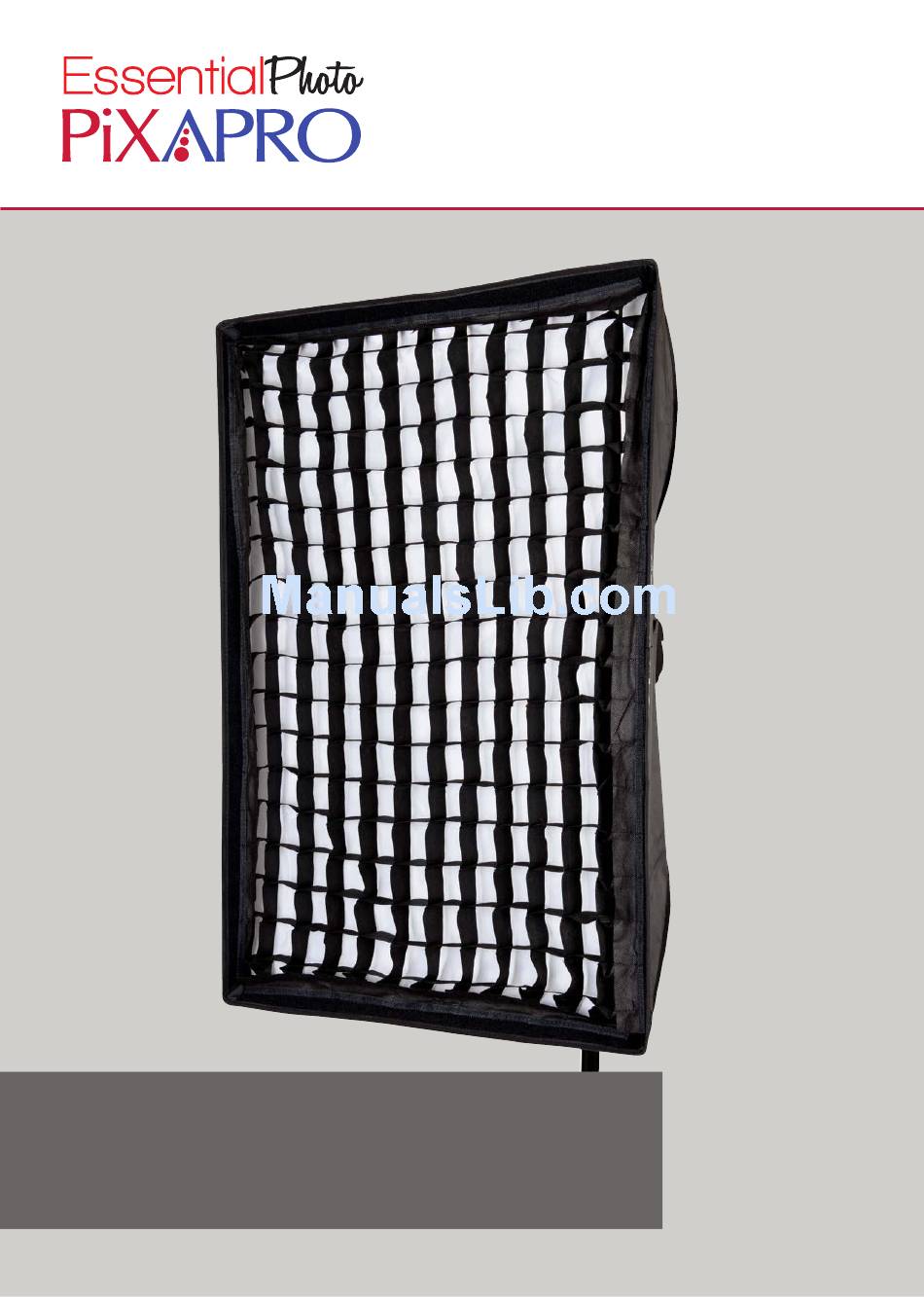

Page 1 ® www.essentialphoto.co.uk PiXAPRO Recessed Softbox ASSEMBLY INSTRUCTIONS...
Page 2 ASSEMBLY INSTRUCTIONS Softbox Parts. Rods Inner Diffuser Outer Diffuser Backing Material Outer Ring Inner Ring The Speedring Inner Rings Are Available in The Following Fittings: Elinchrom Hensel Broncolor Bowens S-Type Multiblitz V Multiblitz P Profoto The Speedring is made up of two parts. The Outer Ring (which is where the rods which form the basic structure of the softbox go into), and the Inner Ring,...
Page 3 ASSEMBLY INSTRUCTIONS Step 1. Step 3. Take one of the rods, and feed the smaller Now insert the larger tipped end of the rod end through the one of the guide-loops lo- into hole in the speed ring (please refer to cated along the internal seam of the softbox Key on the previous page for which holes backing material.
Page 4 ASSEMBLY INSTRUCTIONS Step 5. Step 7. Now insert the remaining rods to complete Once you have attached the inner diffuser, the main structure of the softbox. P .S. Please all that is left to do is attach the outer dif- be aware that the final rod will require a fuser.
Page 5 This type of softbox cannot be used with a grid. Rectangular/Square Softbox Video Strip Softbox Video PIXAPRO ® 50 Popes Lane, Oldbury, West Midlands, B69 4PA Tel: 0121 552 3113 Company Registration No. 07601334 Web: www.essentialphoto.co.uk E-mail: customerservice@essentialphoto.co.uk Facebook: www.facebook.com/EssentialPhoto.UK Twitter: www.twitter.com/EssentialPhoto_...
