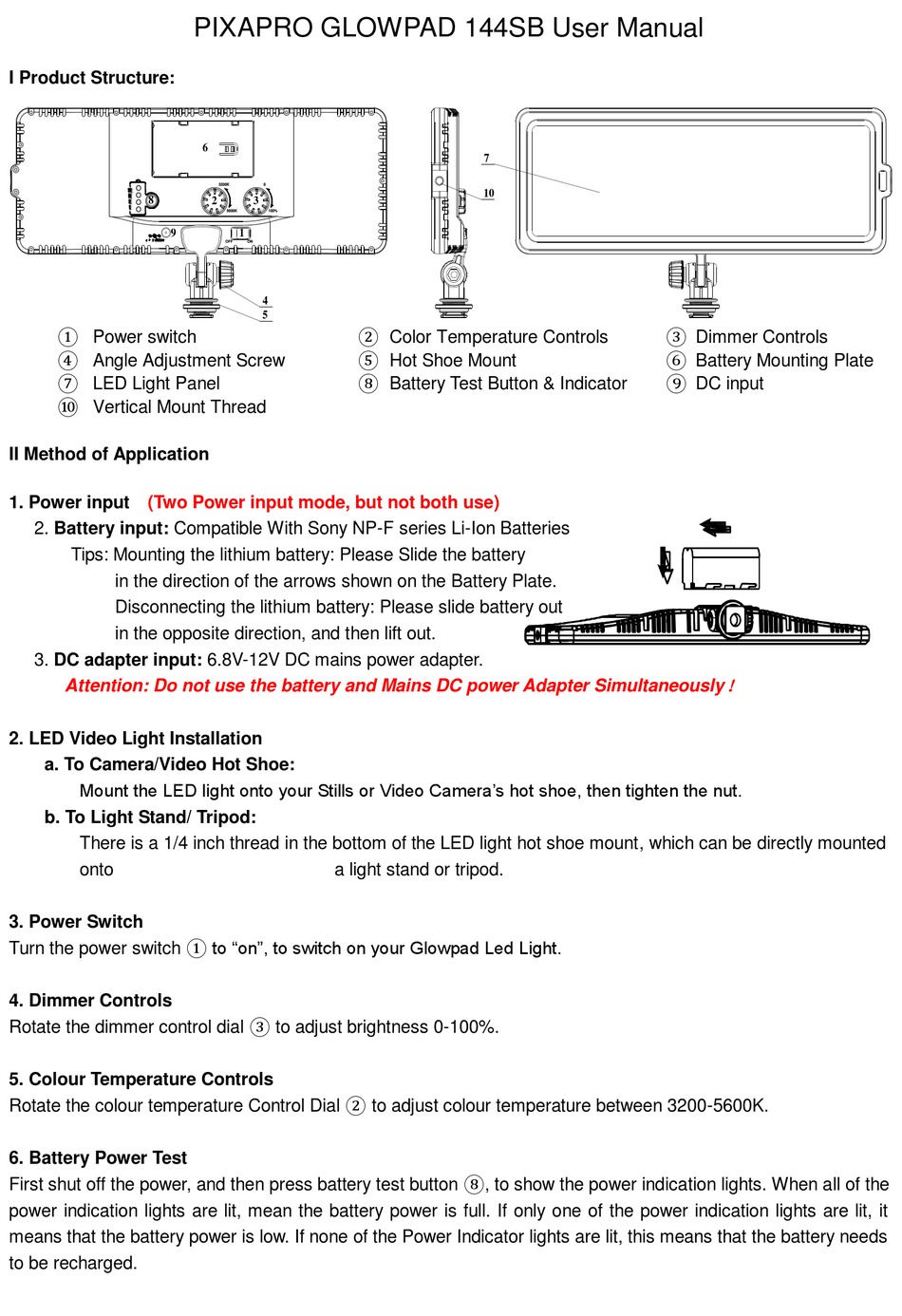

Pixapro GLOWPAD 144SB User Manual

I Product Structure:

8
9
     
① Power switch
④ Angle Adjustment Screw
⑦ LED Light Panel
⑩ Vertical Mount Thread

II Method of Application

1. Power input (Two Power input mode, but not both use)
2. Battery input: Compatible With Sony NP-F series Li-Ion Batteries
Tips: Mounting the lithium battery: Please Slide the battery
in the direction of the arrows shown on the Battery Plate.
Disconnecting the lithium battery: Please slide battery out
in the opposite direction, and then lift out.
3. DC adapter input: 6.8V-12V DC mains power adapter.
Attention: Do not use the battery and Mains DC power Adapter Simultaneously
2. LED Video Light Installation
a. To Camera/Video Hot Shoe:
Mount the LED light onto your Stills or Video Camera's hot shoe, then tighten the nut.
b. To Light Stand/ Tripod:
There is a 1/4 inch thread in the bottom of the LED light hot shoe mount, which can be directly mounted
onto
3. Power Switch
Turn the power switch ① to "on", to switch on your Glowpad Led Light.
4. Dimmer Controls
Rotate the dimmer control dial ③ to adjust brightness 0-100%.
5. Colour Temperature Controls
Rotate the colour temperature Control Dial ② to adjust colour temperature between 3200-5600K.
6. Battery Power Test
First shut off the power, and then press battery test button ⑧, to show the power indication lights. When all of the
power indication lights are lit, mean the battery power is full. If only one of the power indication lights are lit, it
means that the battery power is low. If none of the Power Indicator lights are lit, this means that the battery needs
to be recharged.
PIXAPRO GLOWPAD 144SB User Manual
6
2 3
1
4
5
② Color Temperature Controls
⑤ Hot Shoe Mount
⑧ Battery Test Button & Indicator
a light stand or tripod.
7
10
③ Dimmer Controls
⑥ Battery Mounting Plate
⑨ DC input
！
