Eden 94124EDAMZ Quick Start Manual

5 spray patterns -
Flat, Fan, Large, Multi and Mist!
Flow through design allows
for additional units to be
connected in series
Wide "H" shape
platform design
for more stability
Assembly
Simply attach the sprinkler head to the top of the base.
Hold the bottom of the sprinkler head and base of the
sprinkler to tighten by hand (do not overtighten).
Connect the Hose
Use the Quick Connect System to easily connect and disconnect the sprinkler from the hose. Connect the Product Adapter
to the base of the sprinkler. Attach the lockable Quick Connect to the end of the hose, then simply snap in the hose to the
sprinkler to begin using.
Use the additional included Product Adapter for your nozzles, wands, or other watering tools to switch between tools, even
with the water running.
Note: If you are not using the Quick Connect System,
simply connect the sprinkler directly to the hose.
To extend, simply remove the end-cap and attach
another hose and connect another sprinkler.

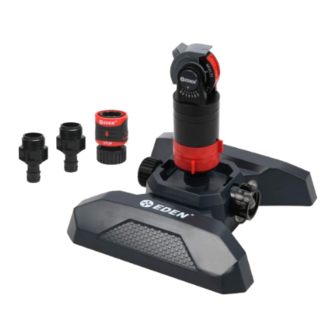

MULTI-PATTERN SPRINKLER
PLUS MISTING SYSTEM
Spray Angle - adjust the tabs to change
the spray angle from 5° to 360°
Hose end connector with
added lter to prevent
sediment and dirt from
reaching sprinkler
LOCK
WATER
Quick Connect Starter Set
ts standard garden hoses
and watering tools
+
94124EDAMZ
