Eden 94122-EDAMZ Quick Start Manual

6 spray patterns to meet all
your watering needs -
at, fan, large, jet, full and mini
Flow through design allows
for additional units to be
connected in series .
(Max. suggested sprinklers
in tandem: 3)
Aluminum wide H
shape platform
design for more
stability
For setup, you can choose Method A or B

Method A

Simply attach the sprinkler head to the top of the base
and connect to your hose.

Method B

Connect the adapter to
the base, attach the hose
with the quick lockable
connector , then simply
snap in the water hose to
assembled sprinkler.
To extend, simply remove the back stop end-cap and
attach another hose and connect another sprinkler.

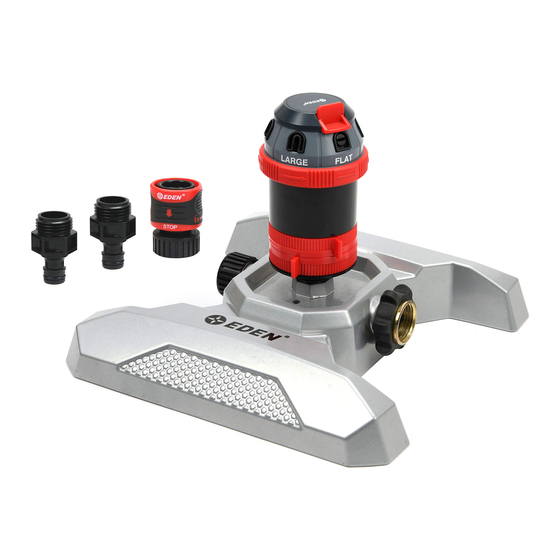

6-PATTERN MOBILE ROTARY
GEAR DRIVE SPRINKLER
Range tab - adjust range
and prevent water waste
Spray coverage - adjust the
range tabs to change the
spray from 5° to 360°
Hose connection -
added lter to prevent
water sediment
LOCK
WATER
Quick Connect Adapter ts
all standard garden hoses
+
94122-EDAMZ
