Eden 97065EDAMZ Quick Start Manual

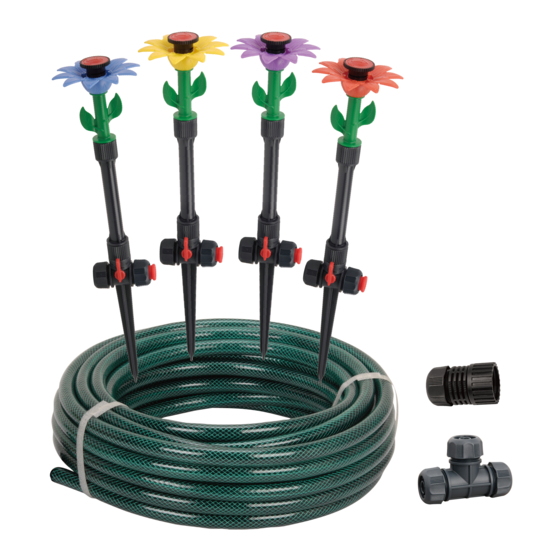

Flex-Design Daisy Sprinkler Set
Add color to your garden
Place your Flex-Design Daisy Sprinklers
throughout your garden to get water just where you want
it. Once the system is in place, use a programmable water
timer to set a watering schedule and let your system do
all the work. The system is completely modular and can
grow with your needs. The best part is, if you ever move,
you can take it all with you and use it at your next place.
T-Connector Hose Connector
Get Started:
Attach the garden hose
to the Hose Connector.
Connect the Sprinklers:
Cut the hose to match the
distance between sprinklers
Connect the hose Place the sprinklers in the
to your faucet or area you want to water
water timer
Attach the hoses to the
sprinkler by unscrewing the
side hose connector
5" extension to water over taller plants
Flow control and shut o at each sprinkler
Sturdy spikes can be easily placed into the soil
Space sprinklers 3 - 13 ft. (1 - 4m) apart for best
coverage. Each sprinkler waters up to 32 ft.
diameter (10m).
Best Distance 3-13ft (1-4m)
Insert the hose into the
side hose connection then
tighten the connector
97065EDAMZ
Adjustable spray angle and direction
1/2" 50 ft. garden hose
Apply STOP End Cap
at the end of circuit
STOP End Cap
