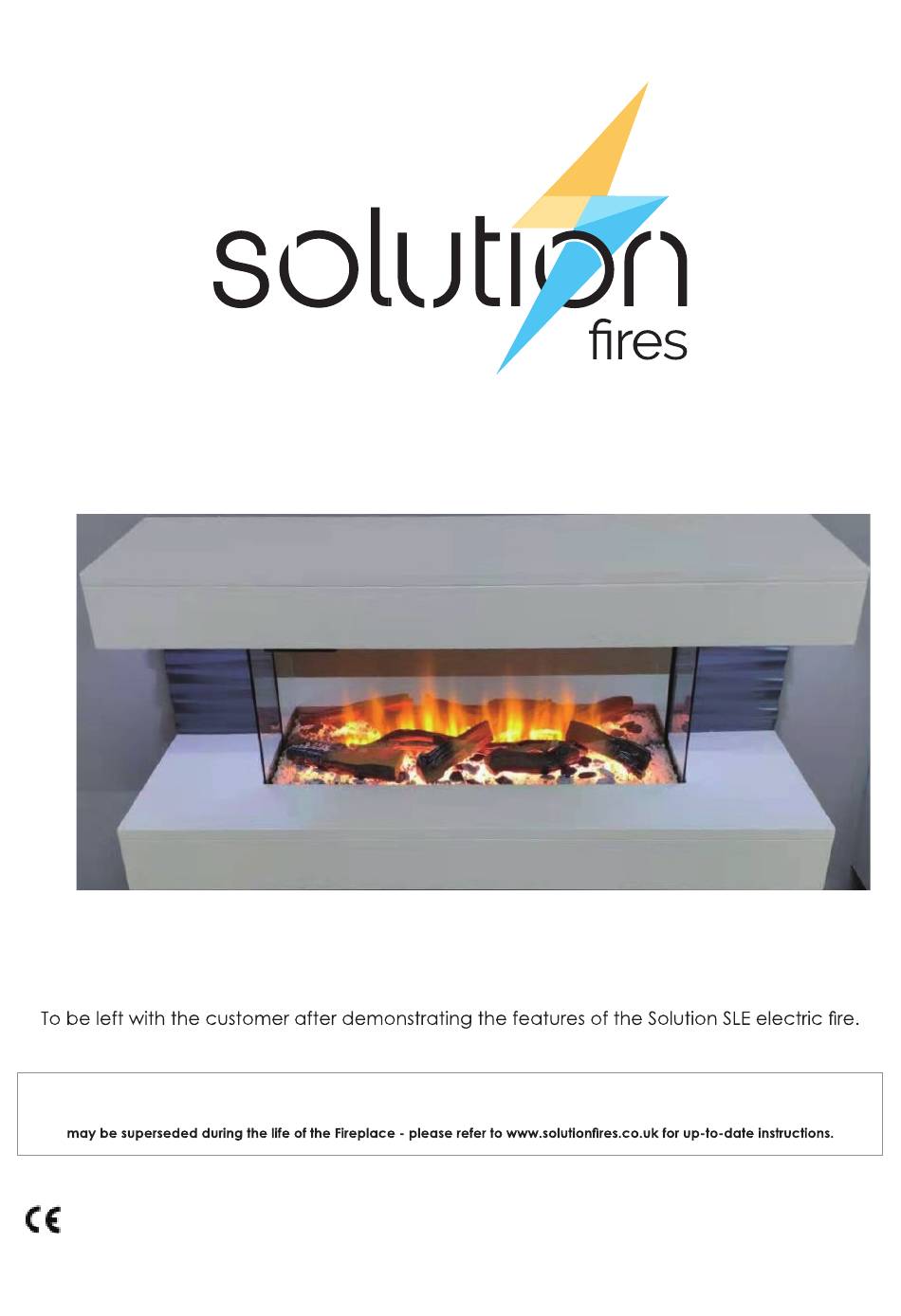

Instruction Manual
Tamarin
This product is only suitable for well insulated spaces or occasional use.
The complete installation must be carried out in accordance with current Standards and Local Codes. The instructions in this
manual must be followed to ensure safe operation of the appliance. It should be noted that the requirements and this publication
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC)
EN55014, EN60555-2 and EN60555-3. These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
March 2021 V1
Advertisement
Table of Contents
Related Manuals for Solution FIres Tamarin
Summary of Contents for Solution FIres Tamarin
- Page 1 Instruction Manual Tamarin This product is only suitable for well insulated spaces or occasional use. The complete installation must be carried out in accordance with current Standards and Local Codes. The instructions in this manual must be followed to ensure safe operation of the appliance. It should be noted that the requirements and this publication The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3.
-
Page 2: Table Of Contents
Setting the Time and Day (24 Hour Clock)....................Setting the Weekly Timer..........................Technical Parameters..........................Thermal Safety Cut-Out..........................Light Emitting Diode............................. Cleaning, Servicing and Maintenance...................... Battery Replacement Remote Control...................... Troubleshooting............................Correct Disposal of this Product......................... Solution Fires Warranty..........................Replaceable Parts............................Wiring Diagram............................. -
Page 3: Important Safety Advice
Important Safety Advice If the appliance is damaged, check immediately with your retailer before installation and operation. The heater must not be used if any part of it is damaged. Do not use outdoors. In order to avoid overheating, do not cover the heater. The appliance carries the Warning Symbol indicating that it must not be covered or has a do not cover label. - Page 4 Only control the appliance using the manual operations or the supplied remote control described in this manual. Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically. You may also use the Solution Fires APP to control your fire.
-
Page 5: Installation & Operating Instructions
3. Establisth the desired finished height from floor level to the bottom of the plaster kit of the product. 4. Fix the wall bracket to the wall ensuring to use the correct hardware fixings (not provided) given the wall construction, plaster board or solid wall. Tamarin 37.4 inch (95cm) Fig.1 Fig.2... - Page 6 Installation Instructions Installation - Continued 5. Put the bracket aside and drill four holes in the wall with a depth of 1 3/8inch (35mm) using a 7/25 inch (7 mm) drill bit. Insert the Wall Anchors into the holes by using a hammer. It is the responsibility of the installer to ensure the fixings are suitable for the structure to which the fire is to be fitted.
- Page 7 Installation Instructions Installation - Continued It is the responsibility of the installer to ensure the fixings are suitable for the structure to which the fire is to be fitted. The fixings supplied are for sound masonry walls. Put provided Bottom Wall Bracket aligning to the holes on bottom Panel. Fig.8 Bottom Wall Bracket Use a pencil and mark other two holes on the wall.
-
Page 8: Installation Log Set Layout
Installation Instructions Log Installation • Remove the top two screws, remove two glass fixtures. • Take out the front glass. Fig.11 Fig.12 • Carefully unpack the logs and check for breakages. If any are broken, please contact your retailer for replacement(s). •... -
Page 9: Operation Instructions
Operation Instructions Fig.14 CONTROL PANEL MANUAL KEY BOARD ON/OFF SWITCH DISPLAY-ON TOP RIGHT CORNER (Indicators) HEATER (Indicators) TIMER PERIODS PRODUCT ON/OFF (Receiver) (Indicator) (Indicators) (Indicators) DIGITAL NUMBERS DISPLAY The unit can be operated on the manual control panel and with the supplied remote control. -
Page 10: Powering The Fire
Operation Continued NOTE: The functions below can be controlled either by the keyboard or remote control. Before using either control method, please ensure that the manual ON/OFF switch is to the "I" position. Powering ON/OFF the Fireplace Press the Power button to supply power to all functions of the fireplace. The current room temperature in the vicinity of the fireplace will be shown on the display. -
Page 11: Open Window Device Function
Operation Continued Open Window Device Function - Additional Hidden Functions This appliance has an open window detection function, When the heater is on operation (H1 or H2), if the ambient temperature drops 5°C within 10 minutes, the Fig.21 digital display will show . -
Page 12: Setting The Time And Day (24 Hour Clock)
Operation Continued - Remote Control Setting the Time & Day (24 Hour Clock) Fig. 23 1. Press the Power button to turn the unit on. 2. Press & hold the Time Setting button for two seconds to display the time & day - see Fig 23 (no numbers shown as time not set). -
Page 13: Technical Parameters
Information requirements for electric local space heaters Model identifier(s): Tamarin Item Symbol Value Unit Item Unit Type of heat input, for electric storage local space Heat output heaters only (select one) manual heat charge control, with [no] Nominal heat output... -
Page 14: Thermal Safety Cut-Out
Thermal Safety Cut-Out mains and attach the brush accessory to your vacuum cleaner and gently vacuum the air A thermal safety cut-out is incorporated intakes and outlets. in the heater to prevent damage due to overheating. This can happen if the heat outlet is restricted in any way. -
Page 15: Troubleshooting
Troubleshooting (IF IN DOUBT isolate the appliance and seek professional advice) The unit does not switch on: The heater smells of burning: When the heater is switched on it cuts itself off. The appliance seems to work, but no lights are illuminated. 2. -
Page 16: Correct Disposal Of This Product
Correct Disposal Of This Product throughout the UK and EU. To prevent possible harm to the environment or human health from Solution Fires Warranty For full details of our warranty and to view the limitations and exclusions please visit our website full terms and conditions are available. -
Page 17: Replaceable Parts
Exploded View Replaceable Parts Description Part Number Remote Handset 22 02 298 MDF Hearth 22 02 297 22 02 310 MDF Header 22 02 296 Log Set 22 02 308 Top Light Circuit Board 22 02 300 Motor 22 02 301 Flame Light Circuit Board 22 02 302 Fuel Bed Light Circuit Board... -
Page 18: Wiring Diagram
Wiring Diagram Gear Motor Display Board Control Board Front Ember LEDS Flame LED Board Power Supply Main PCB Board NTC Sensor ON/OFF Switch Terminal Block Thermal Cutout Heating Element Blower Assembly...
