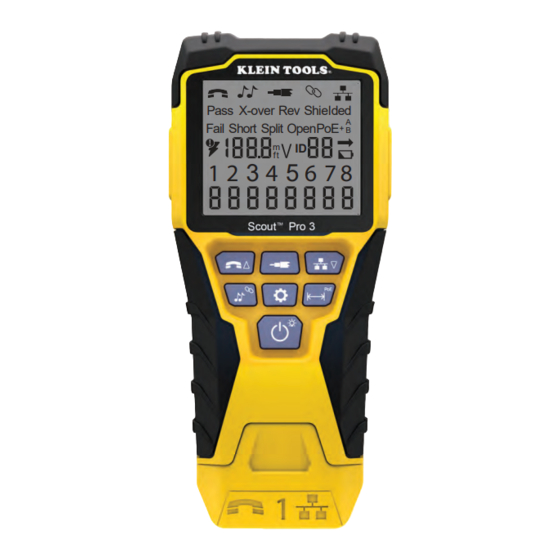

Klein Tools VDV Scout Pro 3 Instruction Manual
  1. Manuals
  2. Brands
  3. Klein Tools Manuals
  4. Test Equipment
  5. VDV Scout Pro 3
  6. Instruction manual

Klein Tools VDV Scout Pro 3 Instruction Manual

Hide thumbs Also See for VDV Scout Pro 3:

Advertisement

Quick Links

Download this manual
VDV Scout
ENGLISH
INSTRUCTION MANUAL
• VOICE, DATA, AND VIDEO CABLE TESTING
• DETECTS SHORT FAULTS, OPEN FAULTS,
REVERSALS, MISWIRES, CROSSOVER
WIRING AND SPLIT PAIRS
• POWER OVER ETHERNET (PoE)
• CABLE ID
• LENGTH MEASUREMENT
• TONE GENERATOR
• EXTRA-LARGE BACKLIT LCD
• HUB BLINK
• AUTO POWER-OFF
Find Quality Products Online at:
Pro 3
TM
pg. 2
GlobalTestSupply
www.
VDV501-852
VDV501-853
Pass X-over Rev
Shielded
A
Fail Short Split Open
PoE
+
B
m
ID
ft
1 2 3 4 5 6 7 8
.com
sales@GlobalTestSupply.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VDV Scout Pro 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Klein Tools VDV Scout Pro 3

Summary of Contents for Klein Tools VDV Scout Pro 3

  • Page 1 VDV Scout Pro 3 VDV501-852 VDV501-853 ENGLISH pg. 2 INSTRUCTION MANUAL • VOICE, DATA, AND VIDEO CABLE TESTING • DETECTS SHORT FAULTS, OPEN FAULTS, REVERSALS, MISWIRES, CROSSOVER Pass X-over Rev Shielded WIRING AND SPLIT PAIRS Fail Short Split Open • POWER OVER ETHERNET (PoE) •...

  • Page 2: General Specifications

    ENGLISH GENERAL SPECIFICATIONS The Klein Tools VDV Scout Pro 3 is a portable voice-data-video cable tester. It tests and troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides tone generation for cable tracing. The VDV Scout Pro 3 also measures cable length, tests for shield, performs hub blink testing, and traces up to 19 locations (up to 5 locations with included remotes, additional remotes available separately).

  • Page 3: Keypad Function

    ENGLISH SELF-STORING TEST + MAP™ ID REMOTE (VDV501-210) Use for cable location identification mapping and/or continuity testing. Self-storing remotes display on tester as Remote ID #1. Included with all VDV Scout Pro 3 models. RJ11/12 port F-connector RJ45 port port TEST + MAP™...
  • Page 4 ENGLISH DISPLAY • MODE: The top line of the display shows what cable type is being tested; voice (RJ11/RJ12) , video (F-terminated coax) or data (RJ45) , and if Hub Blink mode or Tone mode is activated. • PASS/SPECIAL CABLES: “Pass” will be displayed Pass X-over Rev Shielded...
  • Page 5 OPERATING INSTRUCTIONS DISPLAYING/EDITING LENGTH CONSTANT: Follow these instructions to set the length constant based on a known value (for example, as given by the cable manufacturer). The VDV Scout Pro 3 stores a separate length constant for each of the three cable types (voice, data, and video).
  • Page 6 ENGLISH OPERATING INSTRUCTIONS TESTING CONTINUITY ON TERMINATED OR INSTALLED RJ45/RJ11/RJ12 CABLE (FIG. 1, FIG. 2): 1. Connect one end of the cable under test to the RJ45 port (if testing a data cable) or RJ11/RJ12 port (if testing a voice cable) located at the top of the main tester body. If testing a wall port, connect a known good patch cable from the wall plate to the appropriate port at the top of the main tester body.
  • Page 7 Pro 3's built-in analog tone generator. The tester will place a low-frequency voltage on the cable. By using an analog tone probe (Klein Tools VDV500-123, sold separately), a cable can be identified by the tone it is carrying. This technique only allows one cable to be traced per tone generator, but has additional benefits like the ability to trace unterminated cables of non-standard types.
  • Page 8 ENGLISH OPERATING INSTRUCTIONS TONE TRACING ON INSTALLED RJ45/RJ11/RJ12 CABLE (FIG. 7): FIG. 7 1. Connect a known working patch cable to the RJ45 port (if you are tracing a Data cable) or RJ12 port (if you are tracing a voice cable) at the top of the tester.
  • Page 9 ‡NOTE: Only Klein Tools Universal RJ12 Jumper Cable (VDV726-125) or an approved equivalent should be used in the RJ45 jack of the Test + Map™ ID Remotes. Using a standard RJ11/12 patch cable in the RJ45 port on the tester could result in damaged contact pins.
  • Page 10 ENGLISH POWER OVER ETHERNET (PoE) REFERENCE CHARTS POWER OVER ETHERNET (PoE) REFERENCE CHARTS 10/100 10/100 1000 (1 GB) 1000 (1 GB) Mode B Mode A Mode B Mode A TIA/EIA-568 TIA/EIA-568 DC on Spares Mixed DC & Data DC & Bi-Data DC &...

  • Page 11: Battery Replacement

    WIRE MAP AND DISPLAY EXAMPLES COAX CABLE PROPERLY WIRED: COAX CABLE WITH AN OPEN: COAX CABLE WITH A SHORT: NOTE: An open fault Pass will also Open Short occur when no remote is connected to the satellite end of a video/ coax cable.
